Reach trucks - for high lift heights in narrow aisle widths

Reach truck for high lifting heights

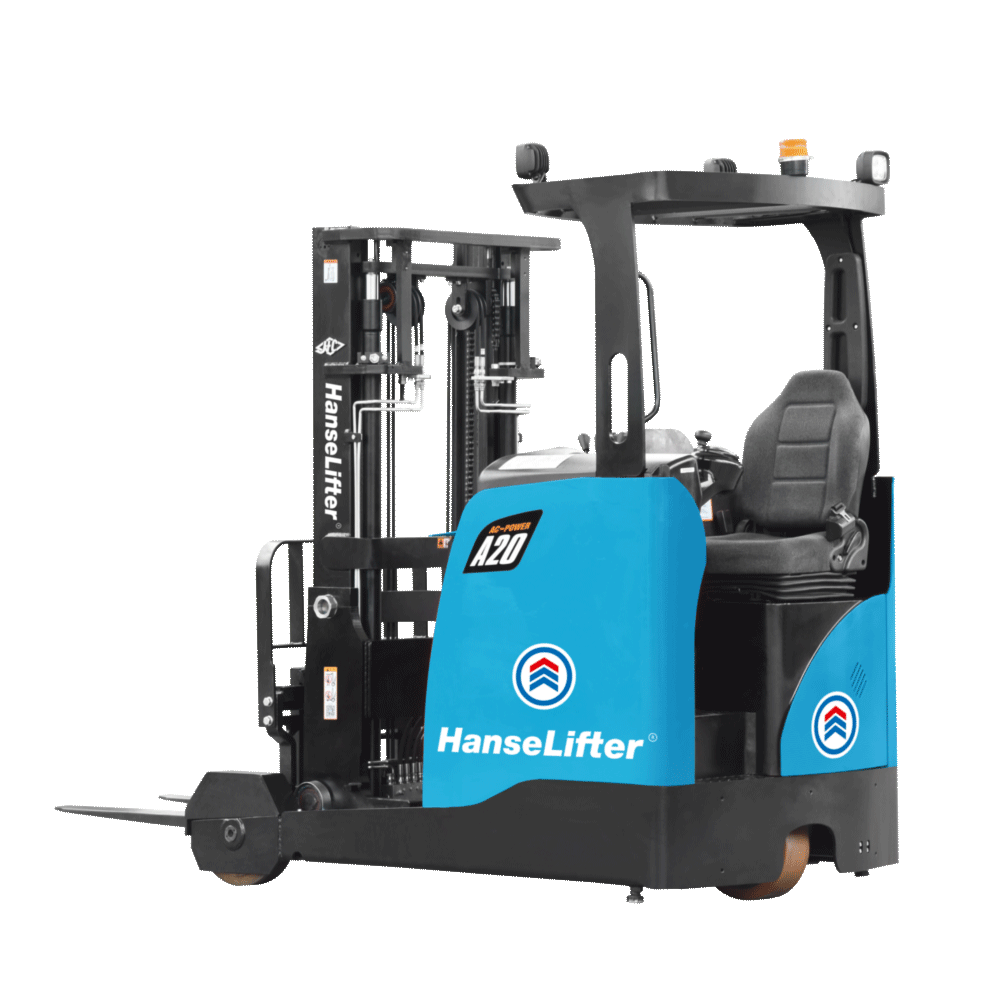

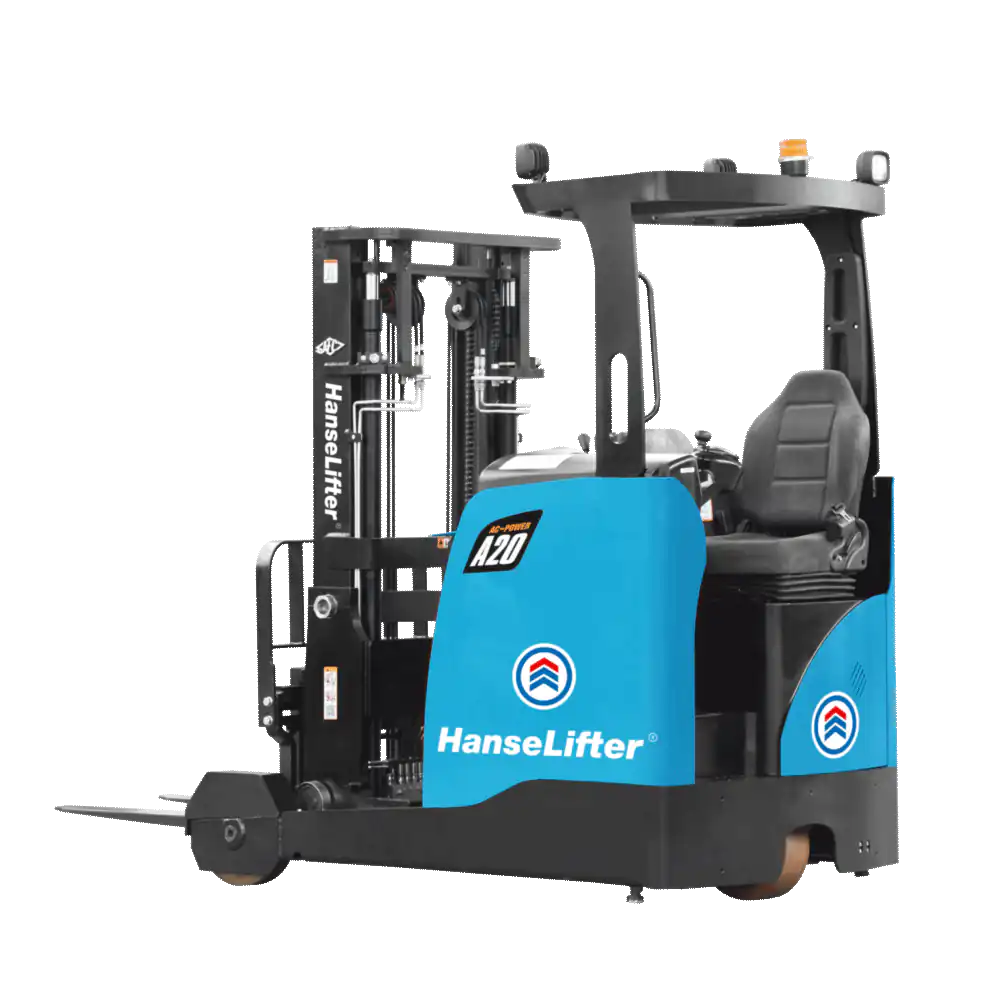

The HLSM reach truck from Hanselifter impresses in many areas, especially due to the large lifting heights. The HLSM is available in 5 different variants, which differ in load capacity and lifting height. The largest model can achieve a load capacity of up to 2 t and a lifting height of up to 12.5 m. In addition, the reach truck has a narrow working aisle width of only approx. 2,600 mm (when picking up pallets in the longitudinal direction according to VDI). The reach trucks from Hanselifter are the ideal forklifts for working in narrow aisle widths and with limited maneuvering freedom.

Triplex mast

The triplex mast of the Hanselifter reach truck offers other advantages in addition to the large lifting height. Even at high lifting heights, the compact mast structure of the triplex mast guarantees a low headroom. The HLSM triplex mast consists of 3 profiles and 3 cylinders. Triplex masts are equipped with free lift as standard, with 2 cylinders behind the profiles and the free lift cylinder in the middle.

Equipment for all circumstances

The Hanselifter reach truck HLSM is already well equipped as standard. The standard equipment includes, among other things, high-quality polyurethane tires, safety pedals and a lifting speed regulator. In addition, a variety of optional equipment is available, such as a fully automatic quick charger, a lifting height limitation system, different fork lengths and special paint finishes. We can offer a device with appropriate features for almost all requirements. If a reach truck is not the right device for you, you will find many other forklifts from Hanselifter in our range.
