SPA manual scissor lift tables
Ergonomics in the workplace
- Load capacities up to 1500 kg
- Max. lifting heights up to 1000 mm
- Sturdy foot pump
- High-quality powder coating
- Parking brake
Product description
The SPA manual scissor lift table
The mobile scissor lift tables of the SPA series are some of our absolute bestsellers! They provide you with ergonomic support when loading, filling or unloading machines, shelves or production lines. By moving the goods to a proper working height, you can protect your back and increase ergonomics in the workplace.

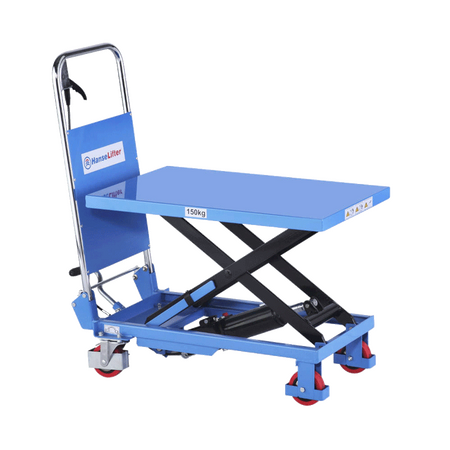

The SPA150 manual scissor lift table with a load capacity of 150 kg has a folding handle. As a result, this manual scissor lift table can be folded for space-saving storage when not in use. When folded, the manual scissor lift table has a height of approx. 350 mm and can be easily stored below a workbench, for example.
Manual scissor lift tables of the SPA series impress with their robust and high-quality workmanship and the quality of the components used. The powder coating of the frame can withstand daily use and prevents early corrosion. Sturdy scissor struts, a high-quality hydraulic pump and a strong handle with control lever complete the features. Little effort is required to lift the manual scissor lift tables of the SPA series using the foot pedal and they reach their maximum lifting height after approx. 30 to 40 strokes. Manual scissor lift table are very versatile.
Features & technical data
- Feature: Manual lifting and moving
- Load capacities: 150 - 1500 kg (model-dependent)
- Lifting range: 225 - 1000 mm (model-dependent)
- Handle height: depending on model between 935 - 990 mm
- Sturdy foot pump for energy-saving lifting
- Controlled, continuous lowering of the table at the hand lever
- Parking brake on both steering wheels
- High-quality powder coating
- High-quality hydraulic pump
- Folding handle (model SPA150)
- Robust steel frame construction
- Strong scissor struts
- Roller equipment: Polyurethane (PU) for particularly smooth running on even surfaces
| Model | SPA150 | SPA300 | SPA500 | SPA800 | SPA1000 | SPA1500 |
|---|---|---|---|---|---|---|
| Load capacity (kg) | 150 | 300 | 500 | 800 | 1.000 | 1.500 |
| Lifting range (mm) | 225 - 750 | 340 - 900 | 340 - 900 | 420 - 1.000 | 380 - 1.000 | 420 - 1.000 |
| Lift (mm) | 525 | 560 | 560 | 580 | 620 | 580 |
| Platform size (LxW, mm) | 740 x 450 | 855 x 500 | 855 x 500 | 1.000 x 510 | 1.020 x 510 | 1.220 x 600 |
| Overall length (mm) | 1.000 | 1.165 | 1.165 | 1.330 | 1.330 | 1.500 |
| Overall width (mm) | 450 | 500 | 500 | 575 | 610 | 700 |
| Operation | Manual | Manual | Manual | Manual | Manual | Manual |
| Handle height (mm) | 935 | 970 | 970 | 990 | 950 | 950 |
| Tiller strokes up to max. height (approx.) | 20 | 32 | 40 | 40 | 45 | 45 |
| Tyres | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
| Truck weight (kg) | 48 | 87 | 92 | 120 | 121 | 143 |
| Article number | GE0024062 | GE0024066 | GE0024068 | GE0024070 | GE0024060 | GE0024061 |
