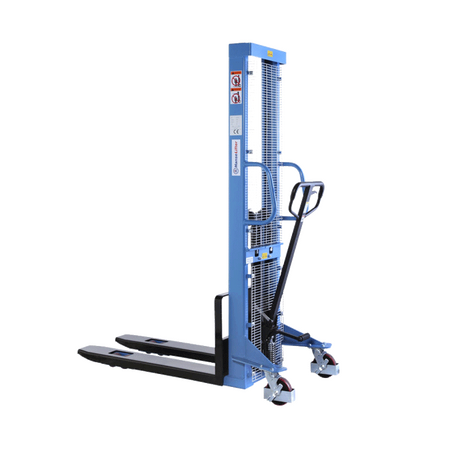

SDJ1516 manual stacker
For occasional stacking and unstacking
- Load capacity: 1500 kg
- Max. lifting height: 1600 mm
- Fork length: 1150 mm
- 20 mm ground clearance
- Overload protection
SDJ1516 manual stacker - ideal for occasional stacking
The mast of the SDJ1516 manual stacker is easy to raise with the hand tiller or hydraulically using the foot pedal to save even more energy. The hand lever is used for continuous lowering. Smooth-running polyurethane rollers with high-quality ball bearings make the SDJ1516 manual stacker easy to manoeuvre and operate.
Equipment and optional accessories
Parking brakes on both steering wheels guarantee the secure positioning of the device when lifting and lowering or during stops on upward or downward gradients. As an option, HanseLifter can also provide you with different platforms or tray attachments for the HanseLifter SDJ1516 manual stacker. These were specially designed for the transport and lifting of bulk goods, grains or other raw materials.
The SDJ1516 is also available as the E-SDJ15 semi-electrical version. The model is moved manually, but has electric lift.
Customised designs
You can order the SDJ1516 with customised dimensions. We can offer you a suitable device for almost every situation. Please get in touch with our Special Construction Department, by using our practical callback service or by simply calling one of our helpful advisors directly.
Features and technical data
- Load capacity: 1500 kg
- Max. lifting height: 1600 mm
- Clearance height: 2080 mm
- Fork outer distance: 550 mm
- Manual lifting via the tiller or foot pedal
- 20 mm ground clearance
- Sturdy handles for easy operation
- Load safety guards and frame guards
- For occasional stacking and unstacking of pallets
- Overload protection
- Continuous, controlled lowering using the hand lever on the tiller handle
- Both steering wheels with parking brake for secure positioning
- Optional: Also available with platform or tray attachments
- Optional: With load control system for direct weighing of pallets or piece goods
| Model | SDJ1516 |
|---|---|
| Load capacity (kg) | 1.500 |
| Lifting height (mm) | 1.600 |
| Minimum fork height (mm) | 90 |
| Lift (mm) | 1.505 |
| Free lift (mm) | 1.505 |
| Lift per tiller stroke | approx. 15 |
| Mast height raised (mm) | 2.080 |
| Mast height lowered (mm) | 2.080 |
| Load distance (mm) | 730 |
| Overall length (mm) | 1.705 |
| Overall width (mm) | 755 |
| Fork dimensions (LxWxH, mm) | 1.150/170/55 |
| Fork outer distance (mm) | 550 |
| Turning radius (mm) | 1.380 |
| Truck weight (kg) | 245 |
| Article number | GE0023998 |
