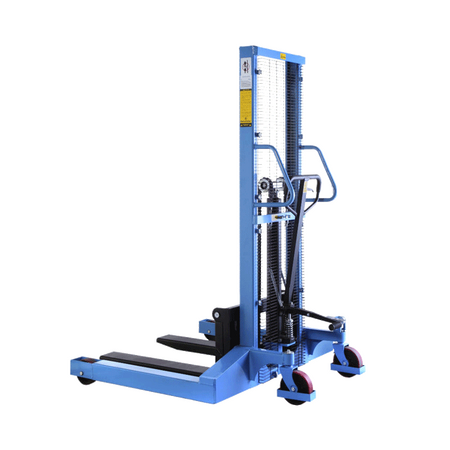

SDJ1016BS manual straddle pallet stacker
With adjustable fork arms
- Load capacity: 1000 kg
- Max. lifting height: 1600 mm
- Fork length: 1070 mm
- Variable widths for load arms and fork arms
- Fork outer distance: 295-925 mm
SDJ1016BS manual straddle pallet stacker - with adjustable fork outer distance
As it is powered by hand, the SDJ1016BS series manual stacker with wide-track chassis is always ready for use as well as offering cost-effective servicing. The mast is easy to raise with the hand tiller or using the foot pedal to save energy. The SDJ1016BS manual straddle pallet stacker can be continuously lowered using the hand lever. With its adjustable fork outer distance (320-740 mm), the forks can be individually adjusted.
Smooth-running roller equipment
Smooth-running polyurethane rollers with high-quality ball bearings make the stackers easy to manoeuvre and operate. Even small surface irregularities can be rolled over quietly without a problem. The rollers also impress with their abrasion-resistance and strong grip.
Alternatives and special dimensions
As an alternative to the SDJ1016BS manual straddle pallet stacker, we also supply the E-SDJ10BS semi-electric version. This has electric lift, but still has to be moved manually. As a fully electric alternative, our electric pallet stackers may be of interest, for example the E-DH10-MG-E.
If you cannot find a suitable device in our range, we can also offer you special constructions. Simply use our practical callback service for your request or contact one of our helpful advisors directly by phone or email.
Features and technical data
- Load capacity: 1000 kg
- Lifting height: 1600 mm
- Clearance height: 1980 mm
- Fork outer distance: 320 - 740 mm
- Free lift: 1505 mm
- Wide boom spacing of 1195 mm
- Fork arms adjustable from 320 - 740 mm
- Lifting via the tiller or foot pedal
- Rubberised tiller and reinforced tiller handle
- Controlled lowering using hand lever
- Brake on right steering wheel
- OPTIONAL: With platform, tray attachment or the HanseLifter LP1100 industrial waste compactor
- OPTIONAL: With food grade H1 oil
| Model | SDJ1016BS |
|---|---|
| Load capacity (kg) | 1.000 |
| Lifting height (mm) | 1.600 |
| Minimum fork height (mm) | 95 |
| Lift (mm) | 1.505 |
| Free lift (mm) | 1.505 |
| Lift per tiller stroke | ca. 15 |
| Mast height raised (mm) | 2.020 |
| Mast height lowered (mm) | 1.980 |
| Load distance (mm) | 735 |
| Overall length (mm) | 1.840 |
| Overall width (mm) | 1.400 |
| Fork dimensions (LxWxH, mm) | 900/150/60 |
| Fork outer distance (mm) | 320-740 |
| Turning radius (mm) | 1.250 |
| Truck weight (kg) | 336 |
| Article number | GE0023992 |
