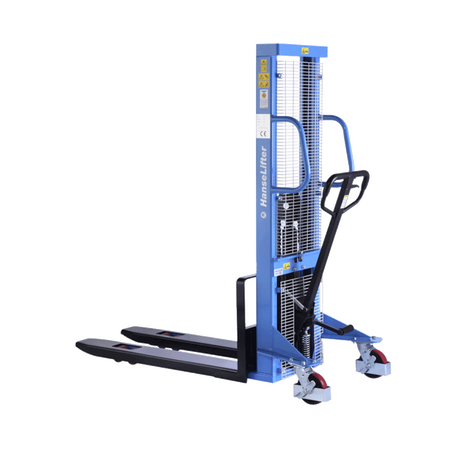

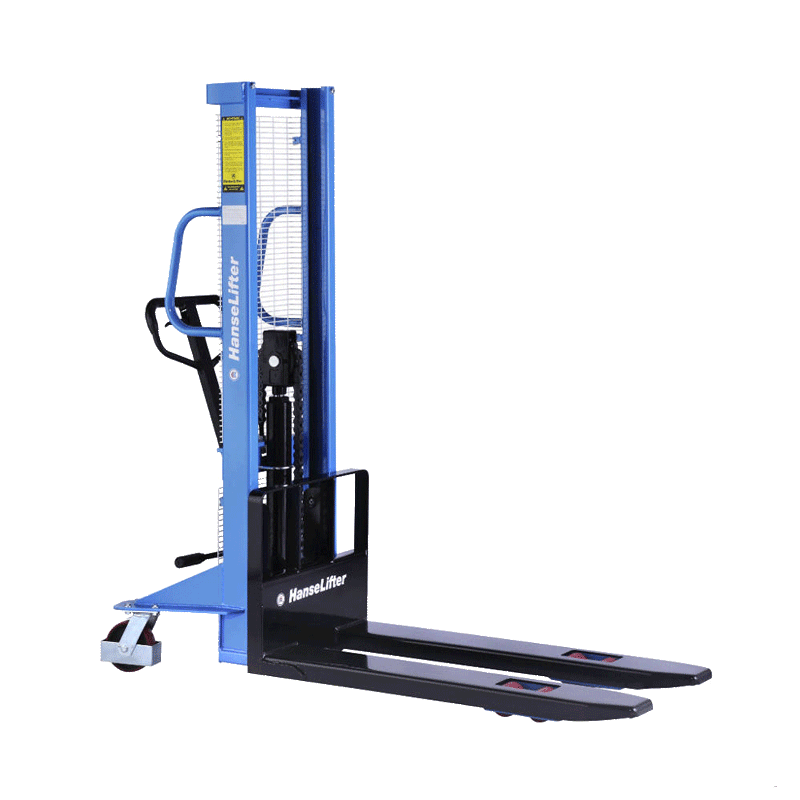

SDJ10 manual stackers with overload protection
For occasional stacking and unstacking
- Load capacity: 1000 kg
- Max. lifting height: 3000 mm**
- Fork length: 1150 mm
- Overload protection
- 40 mm ground clearance
*Lifting height model dependent
The frontrunners under the stackers
As they are powered purely by hand, the SDJ10 series manual stackers are nearly always ready for use, as well as offering cost-effective service and maintenance. The mast of the SDJ10 series is very easy to raise hydraulically with the hand tiller or the foot pedal. The SDJ10 series stacker trucks can be continuously lowered using the hand lever.
Smooth-running roller equipment
Smooth-running polyurethane rollers with high-quality ball bearings make the stackers easy to manoeuvre and operate. With a ground clearance of 40 mm, the SDJ1012, SDJ1016, SDJ1025 und SDJ1030 models are particularly high, making them easy to manoeuvre on irregular surfaces. Parking brakes on both steering wheels guarantee the secure positioning of the SDJ10 manual stacker when lifting and lowering or during stops on upward or downward gradients..
Optional attachments for the SDJ10
As an option, HanseLifter can also provide you with different platforms or tray attachments for the manual stackers..
Features and technical data
- Load capacity: 1000 kgg
- Different lifting heights up to 3000 mm (model-dependent)
- Manual lifting via the tiller or foot pedal
- Different clearance heights
- Fork outer distance: 550 mm
- Continuous, controlled lowering using the hand lever on the tiller handle
- 40 mm ground clearance for uneven floors
- Overload protection
- Sturdy handles for easy operation
- Both steering wheels with parking brake for secure positioning
- Load safety guards and frame guards for maximum safety
- Optional: Also available with platform or tray attachments
- Optional: With load control system for direct weighing of pallets or piece goods
| Model | SDJ1012 | SDJ1016 | SDJ1025 | SDJ1030 |
|---|---|---|---|---|
| Load capacity (kg) | 1.000 | 1.000 | 1.000 | 1.000 |
| Lifting height (mm) | 1.200 | 1.600 | 2.500 | 3.000 |
| Minimum fork height (mm) | 90 | 90 | 90 | 90 |
| Lift (mm) | 1.110 | 1.510 | 2.410 | 2.910 |
| Free lift (mm) | 1.085 | 1.440 | 330 | 330 |
| Lift per tiller stroke | ca. 20 | ca. 20 | ca. 20 | ca. 20 |
| Mast height raised (mm) | 1.750 | 2.080 | 3.000 | 3.505 |
| Mast height lowered (mm) | 1.730 | 1.980 | 1.850 | 2.090 |
| Load distance (mm) | 730 | 730 | 730 | 730 |
| Overall length (mm) | 1.705 | 1.705 | 1.705 | 1.705 |
| Overall width (mm) | 755 | 755 | 860 | 860 |
| Fork dimensions (LxWxH, mm) | 1.150/170/55 | 1.150/170/55 | 1.150/170/55 | 1.150/170/55 |
| Fork outer distance (mm) | 550 | 550 | 550 | 550 |
| Turning radius (mm) | 1.400 | 1.400 | 1.400 | 1.400 |
| Truck weight (kg) | 200 | 230 | 276 | 316 |
| Article number | GE0023985 | GE0023987 | GE0023993 | GE0023995 |
