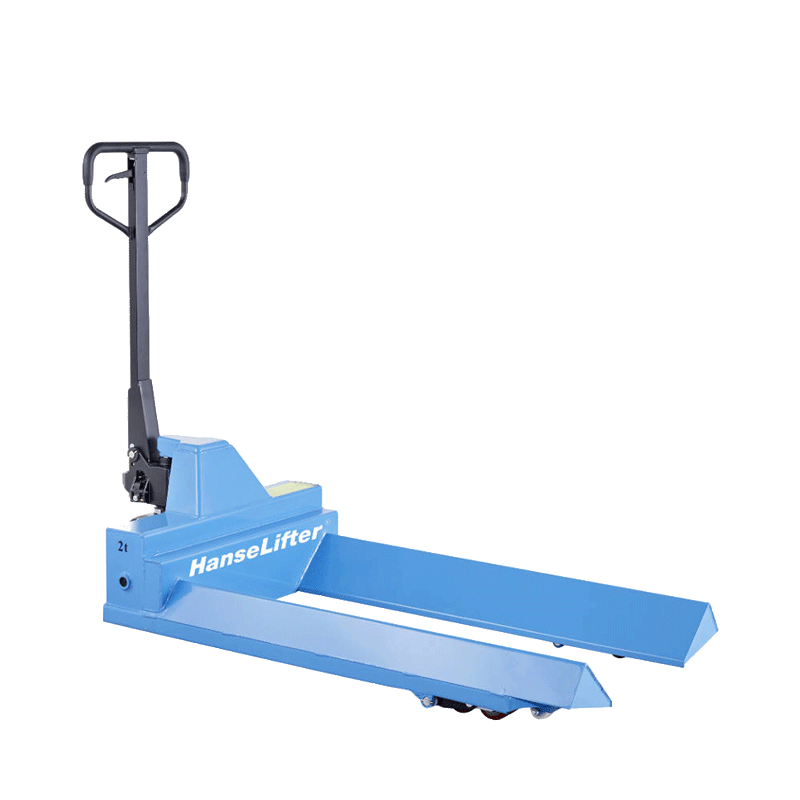

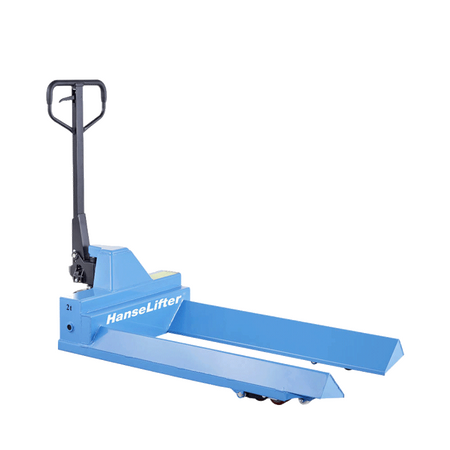

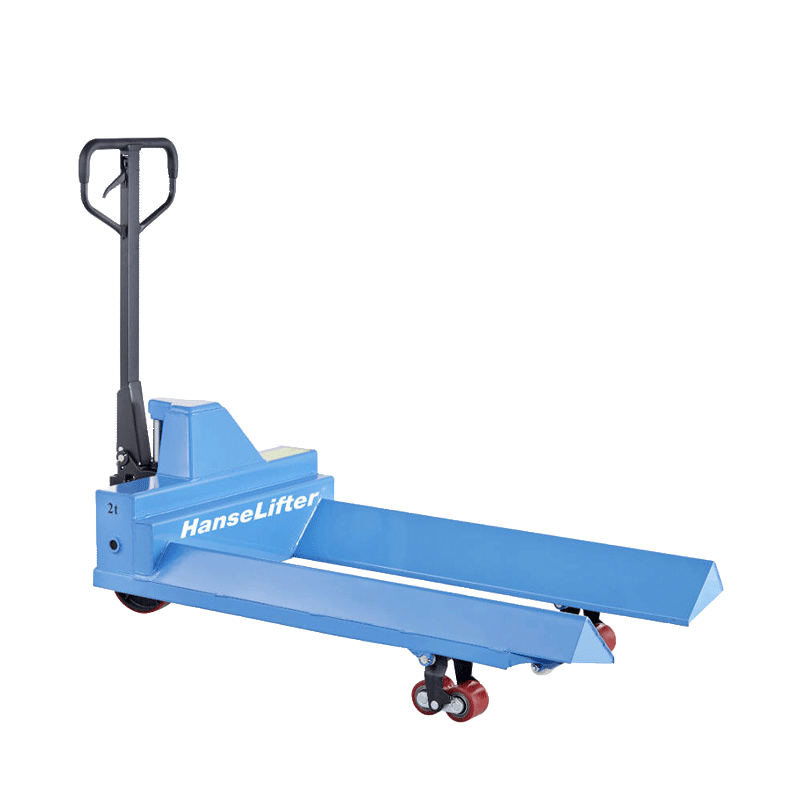

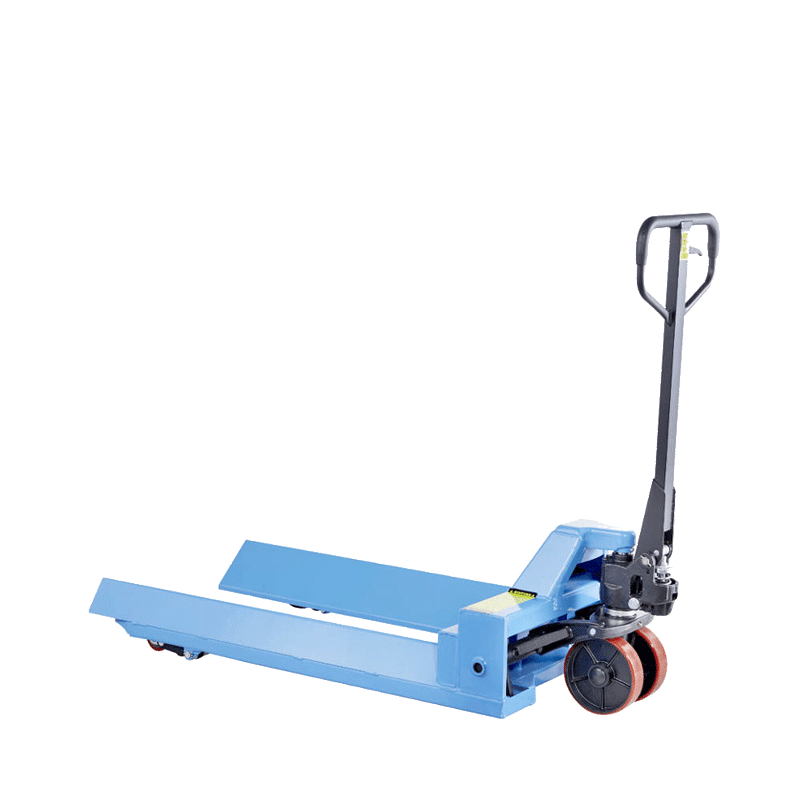

RH pallet truck
For rolls, reels and cable drums
- Load capacity: 1000 or 2000 kg
- Max. lifting height: 200 mm
- Specially shaped forks
- Reinforced tiller and frame
- Low-maintenance construction
Product description
RH pallet truck - easily transport paper rolls and reels
The special fork shape makes the RH series reel carrying pallet trucks ideal for transporting rolled goods such as pulp, paper, reels or cable drums. The load capacity of the RH reel carrying pallet trucks ranges from 1000 kg to 2000 kg and they can accommodate a roll diameter from 400 mm up to 1600 mm.
Long service times
The high-quality workmanship of the RH series reel carrying pallet truck and the reinforced frame construction ensure a long service life with daily use. High-quality powder coating also contributes to long service times.

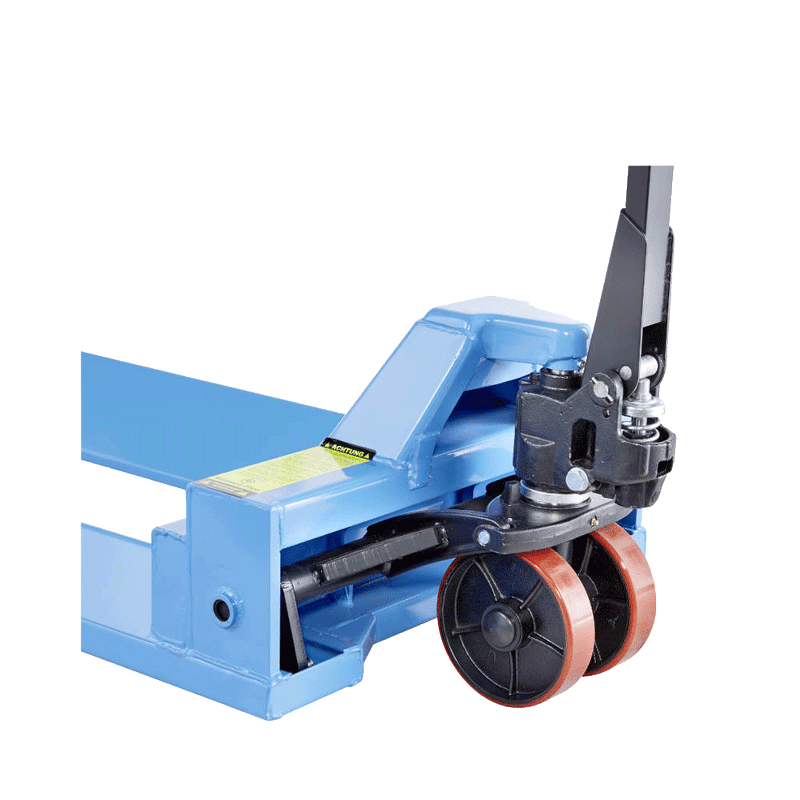

Roller equipment
The RH reel carrying pallet truck is equipped with polyurethane (PU) rollers as standard. These are abrasion-resistant and quiet and also impress with their strong grip. They can easily roll over small surface irregularities. PU rollers are suitable for almost any type of flat surfaces.
Features and technical data
- Feature: Suitable for rolls, reels or drums
- Load capacity depending on model: 1000 or 2000 kg
- Roll diameter selectable between 400 - 1600 mm
- Specially shaped forks
- Pressure relief valve for a long service life
- Lifting via hand tiller

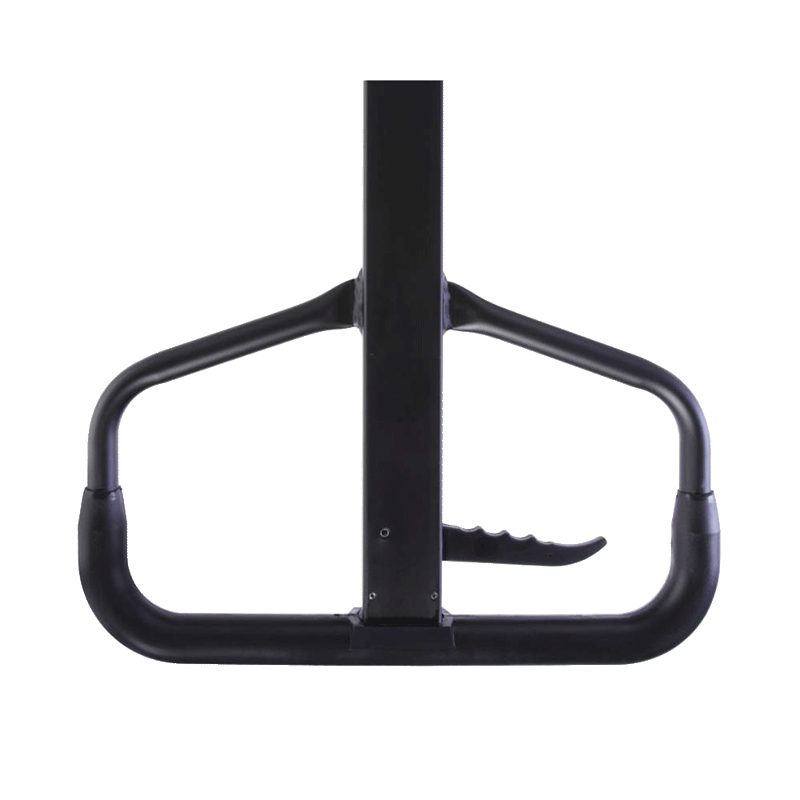

- Rubberised tiller handle
- Controlled, continuous lowering at the hand lever
- Reinforced tiller and reinforced frame
- Roller equipment: Polyurethane (PU)
- Low-maintenance construction
| Model | RH | RH500 | RH700 | RH1000 | RH1500 |
|---|---|---|---|---|---|
| Load capacity (kg) | 1.000 | 2.000 | 2.000 | 2.000 | 2.000 |
| Tyres | Polyurethane | Polyurethane | Polyurethane | Polyurethane | Solid rubber |
| Operation | Manual | Manual | Manual | Manual | Manual |
| Wheel distance (mm) | 1.120 | 1.170 | 1.170 | 1.170 | 1.170 |
| Roll diameter (∅, mm) | 750-1.000 | 400-600 | 600-800 | 800-1.200 | 1.200-1.600 |
| Lift (mm) | 125 | 120 | 120 | 120 | 120 |
| Tiller strokes until maximum lift | ca. 12 | ca. 20 | ca. 20 | ca. 20 | ca. 20 |
| Fork arm dimensions (mm) | 1.150 | 1.150 | 1.150 | 1.150 | 1.150 |
| Fork outer distance (mm) | 965 | 760 | 850 | 1.000 | 1.150 |
| Overall length (mm) | 1.530 | 1.600 | 1.600 | 1.600 | 1.600 |
| Overall width (mm) | 965 | 760 | 850 | 1.000 | 1.150 |
| Turning radius (mm) | 1.275 | 1.300 | 1.300 | 1.300 | 1.350 |
| Truck weight (kg) | 135 | 144 | 149 | 157 | 168 |
| Article number | GE0023944 | GE0023947 | GE0023948 | GE0023945 | GE0023946 |
