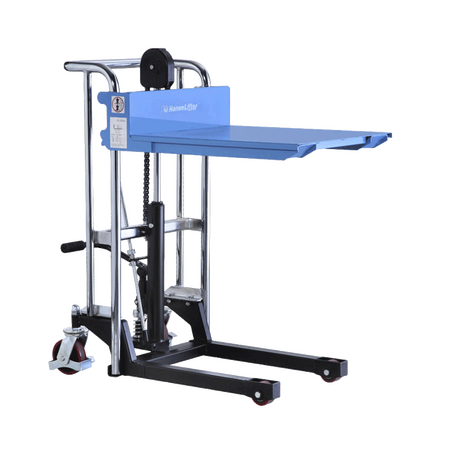

PS0 manual fork/platform stackers - for displays, half and special pallets
The practical PS0 manual fork/platform stackers, with removable platform, are ideally suited for use in retail such as supermarkets or specialist retailers. Designed for order picking, but also perfect for the transport of palletised and unpalletised goods. With a length of 640 mm, the forks of the PS0 manual fork/platform stackers are particularly suitable for displays, half and special pallets.
Ergonomic and flexible
With a single movement, the platform which is included with the manual stackers can be easily attached and removed. This allows you to react quickly and flexibly to different work requirements. The low own weight of the PS0 manual fork/platform stackers and the compact storage dimensions make the manual stackers of the PS0 series ideal for being carried on a lorry to simplify loading and unloading. They are suitable for easy lifting and transporting and with the platform, they can be used as a working table to prevent back strain. With the PS0 manual series fork/platform stackers, a foot pedal is used for energy-saving lifting and continuous lowering can be controlled using a rotary knob.
Alternatives and special constructions
As an alternative to the PS0 manual stacker, you can also order the device in its E-PS0 semi-electrical version. This uses electricity to conveniently lift and lower the forks. Can you not find a device in our range that meets your requirements? On request, we can offer you our devices with customised dimensions. Please get in touch with our Special Construction Department to discuss this further..
Features and technical data
- Load capacity: 400 kg
- Different lifting heights up to 1500 mm (model-dependent)
- Different clearance heights
- Fork outer distance: 540 or 545 mm
- Incl. removable platform
- Free lift
- Lifting with folding foot pedal
- Continuous lowering using rotary knob
- Low truck weight
- Ideal for displays, half or special pallets
- Ideal for being carried on lorries
- High-quality polyurethane steering wheels and fixed rollers
- Robust parking brakes on both steering wheels
Model | PS0485 | PS0412 | PS0415 |
---|---|---|---|
Load capacity (kg) | 400 | 400 | 400 |
Lifting height (mm) | 850 | 1.200 | 1.500 |
Minimum fork height (mm) | 90 | 90 | 90 |
Lift (mm) | 760 | 1.110 | 1.410 |
Free lift (mm) | 760 | 1.110 | 1.410 |
Lift per tiller stroke | approx. 40 | approx. 40 | approx. 40 |
Mast height raised (mm) | 1.080 | 1.430 | 1.725 |
Mast height lowered (mm) | 1.080 | 1.430 | 1.725 |
Overall length (mm) | 1.040 | 1.040 | 1.040 |
Overall width (mm) | 580 | 580 | 580 |
Fork dimensions (LxWxH, mm) | 640/110/50 | 640/110/50 | 640/110/50 |
Fork outer distance (mm) | 540 | 545 | 540 |
Turning radius (mm) | 940 | 940 | 940 |
Truck weight (kg) | 75 | 81 | 91 |
Article number | GE0023925 | GE0023923 | GE0023924 |
