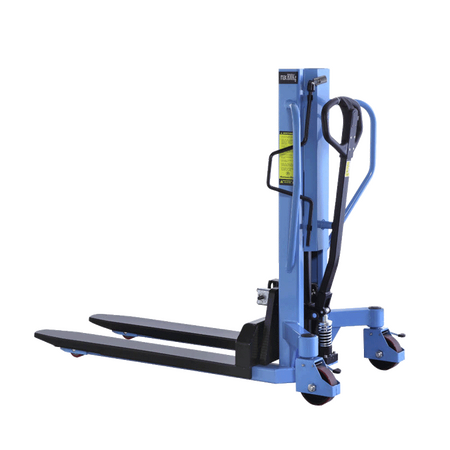

PH0809 manual stacker
Ideal for shipping departments
- Load capacity: 800 kg
- Max. lifting height: 920 mmm
- No tilt function
- Parking brakes on the steering wheels
- Lifting via tiller
PH0809 manual stacker - ideal for mail processing and roller conveyors
With the HanseLifter PH0809 manual stacker, pallets can be lifted and moved manually. It is ideally suited for use in mail processing or on roller conveyors. The PH has a lifting height of up to 900 mm and a load capacity of 800 kg. In contrast to the PHK manual stacker truck, the PH0809 does not have a tilt function. Lifting takes place using the hand tiller. The solid frame as well as parking brakes on both steering wheels guarantee that the stacker is firmly and securely positioned while working.
Roller equipment
The PH manual stacker is equipped with high-quality rollers made of polyurethane. They are suitable for smooth, even floors. But they can also easily roll over small surface irregularities. The PU rollers are very abrasion-resistant and provide good grip. The rollers are also very quiet. These are the optimal tyres for the handling of manual stackers.
Special constructions
If the PH pallet stacker has awakened your interest, but does not have the features you require, our Special Construction Department can assist. Let our helpful staff advise you and create your materials handling device tailored to your own wishes!
Features and technical data
- Manual lifting and moving
- Load capacity: 800 kg
- Lifting height: 920 mm
- Clearance height: 1320 mm
- Lifting via tiller
- No tilt function
- With parking brakes
- Ideal for production lines
| Model | PH0809 |
|---|---|
| Features | without tilt function |
| Load capacity (kg) | 800 |
| Lifting height (mm) | 900 |
| Minimum fork height (mm) | 88 |
| Lift (mm) | 812 |
| Free lift (mm) | 812 |
| Lift per tiller stroke (mm) | ca. 30 |
| Mast height raised (mmm) | 1320 |
| Mast height lowered (mm) | 1320 |
| Overall length (mm) | 1.650 |
| Overall width (mm) | 765 |
| Fork length (mm) | 1.150 |
| Fork dimensions (LxWxH) (mm) | 1150/150/50 |
| Fork outer distance (mm) | 540 |
| Turning radius (mm) | 1.340 |
| Truck weight (kg) | 210 |
| Article number | GE0023866 |
