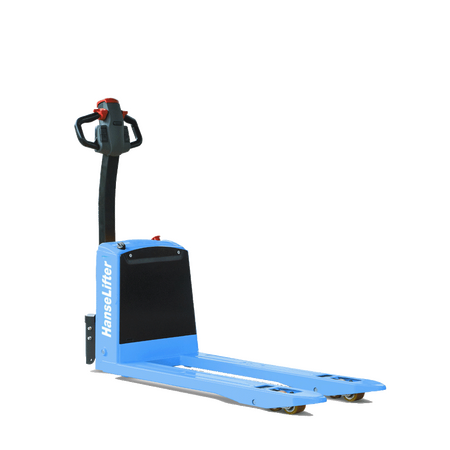

IMOW E-BF electric pallet truck

Electric lifting and movement of pallets

  • Load capacity: 1500 kg
  • Load centre distance: 600 mm
  • Load distance: 883 mm
  • Nationwide service network

Product description

First in its class - IMOW E-BF

IMOW stands for a new type of entry-level products in materials handling technology. The basic principle of the IMOW series is to produce simple and reliable materials handling technology which is also cost-effective to purchase. The HanseLifter IMOW E-BF electric pallet truck is such an ideal entry-level model. In the electric pallet truck range, the IMOW E-BF impresses with an exceptionally low price and great performance data. With a load capacity of 1500 kg, the IMOW electric pallet truck lifts nearly all pallets.

At only 190 kg, the lightest in its class

But its biggest advantage is its very low truck weight of just 190 kg. This makes the IMOW E-BF the optimal electric pallet truck for lorries and the lightest in its class.

Perfect for lorries and tight spaces

The IMOW E-BF not only has a low truck weight, but thanks to its compact dimensions, it also offers excellent handling in tight spaces. Controls are designed to be particularly user-friendly, so the electric pallet truck can be used efficiently after a very short time. As a result, the IMOW-BF is an excellent entry-level electric pallet truck which is ideal for loading and unloading lorries.

The HanseLifter electric pallet truck with gel battery

The electric pallet truck is equipped with an efficient gel battery and integrated charger and offers maximum flexibility for the user. An advantage of gel batteries is that they provide greater protection against vibration than conventional batteries. The encapsulated design also facilitates handling and improves safety. Users do not need to be concerned about leaks from an intact gel battery.

Energy-saving and easy to maintain

Thanks to its DC drive, the IMOW E-BF is very energy efficient and extremely easy to maintain with its well-known and proven components. In addition, the ergonomic and modular design of the IMOW E-BF also promises pleasant and safe working.

Features and technical data

Features
  • Load capacity: 1500 kg
  • Max. lifting height: 115 mm
  • The lightest in its class
  • Load centre distance: 600 mm
  • Load distance: 883 mm
  • Tandem rollers
  • Nationwide service network
  • Customised truck / specialised construction possible on request
  • 190 kg truck weight
Technical data
Model IMOW E-BF
Features DC-drive
Load capacity (kg) 1.500
Drive Elektro
Lifting range (mm) 80 - 195
Load centre distance (mm) 600
Overall length (mm) 1.638
Overall width (mm) 560
Fork length (mm) 1.150
Fork outer distance (mm) 560
Turning radius (mm) 1.485
Working aisle width (mm) 1.939
Gradeability (with/without load, %) 5/16
Driving speed (min/max, km/h) 4/4.5
Drive motor (DC, kW) 0,65
Lift motor (DC, kW) 0,84
Charger intern
Battery (V/Ah) 2x12V
Truck weight (kg) 190
