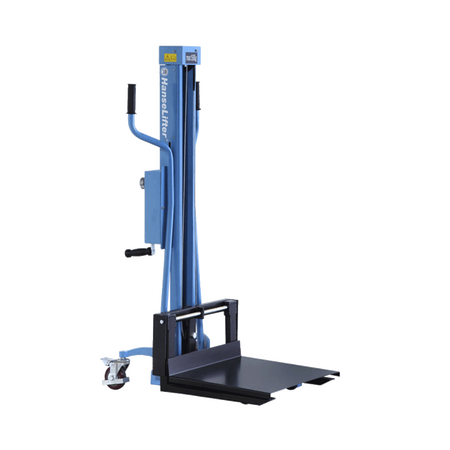

HWHH manual winch stacker
With platform and adjustable forks
- Load capacity: 80 or 150 kg
- Max. lifting height: 1100 mm
- Lifting via manual winch system
- Manual fork adjuster
- Compact and agile
Manual winch stacker with manual fork adjuster
Due to their good manoeuvrability, the manual winch stackers of the HWHH series are particularly suited for use in the tightest of spaces. Thanks to the manual fork adjuster, the HWHH manual winch stacker is very versatile. It is perfectly suited for half and special pallets. With the manual winch system, pallets as well as the work platforms supplied can be easily lifted to the required working height, ensuring ergonomic working.
Flexible platform
With the removable platform of the HWHH, even unpalletised goods can be transported without any problems. The platform can be attached and removed in just a few steps. It has a length of 500 mm and a width of 535 mm. This allows you to react quickly and flexibly to a wide range of work requirements.
Individual dimensions
On request, we can also provide you with the HWHH in special dimensions. Our Special Construction Department looks forward to every challenge. Simply use our practical callback service or contact one of our helpful advisors directly.
Features and technical data
- Load capacity: 80 or 150 kg (model-dependent)
- Lifting height: 1100 mm
- Clearance height: 1475 mm
- Fork outer distance: 132-520 mm
- Manual winch system for easy lifting
- Manual fork adjuster, continuously adjustable
- Incl. removable platform
- Platform dimensions (LxW): 500 x 535 mm
- Rubberised handles
- Easy to manoeuvre
- Compact and agile, easy to manoeuvre even in tight spaces
- Ideal for displays, half or special pallets
| Model | HWHH80 | HWHH150 |
|---|---|---|
| Load capacity (kg) | 80 | 150 |
| Lifting height (mm) | 1.100 | 1.100 |
| Minimum fork height (mm) | 70 | 70 |
| Lift (mm) | 910 | 910 |
| Free lift (mm) | 910 | 910 |
| Mast height raised (mm) | 1.475 | 1.475 |
| Mast height lowered (mm) | 1.475 | 1.475 |
| Overall length (mm) | 865 | 865 |
| Overall width (mm) | 580 | 580 |
| Fork dimensions (LxWxH, mm) | 500/30/50 | 500/30/50 |
| Fork outer distance (mm) | 132-520 | 132-520 |
| Turning radius (mm) | 850 | 850 |
| Operation | manuel | manuel |
| Brake (mm) | Parking brake | Parking brake |
| Handle height (mm) | 70 | 70 |
| Platform dimensions (LxW, mm) | 500 x 535 | 500 x 535 |
| Tyres | Polyurethane | Polyurethane |
| Truck weight (kg) | 52 | 62 |
| Article number | GE0023496 | GE0023495 |
