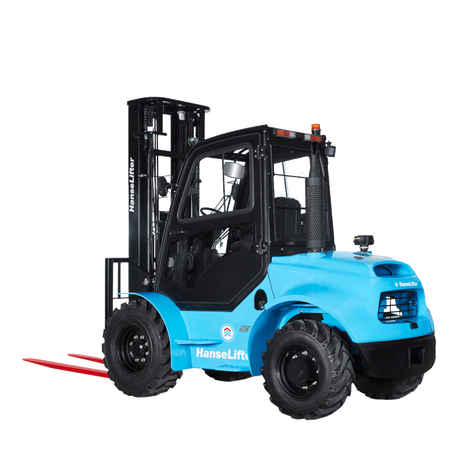

HLRT50-XF all terrain forklift truck (4WD) 5.0 t
For rough terrain and high-tonnage goods
- Load capacities up to 5000 kg
- Motor: DEUTZ TCD 3.6 L4
- Wet multi-disc brake
- High ground clearance
Product description
The strong HLRT50-XF (4WD) forklift truck for rough terrain
The HLRT50-XF (4WD) all terrain forklift trucks are the ideal forklift trucks to lift and transport heavy loads up to 5 tons in rough terrain. The equipment includes large pneumatic tyres with improved brakes, a differential gearbox with automatic locking function and an optimised steering axle assembly.
Steering and operation
With the new hydraulic steering, the all terrain forklift trucks can be easily manoeuvred through the terrain. Dynamic load measurement helps to reduce hydraulic loss, thereby improving energy efficiency. All electric components are integrated in the new vehicle controller. In addition, it offers excellent temperature and water resistance, as well as resistance to vibration.
Sustainability
The specially developed engine of the all terrain forklift trucks provides an optimal balance between environmental friendliness and performance. In the manufacture of the forklift trucks, particular emphasis is placed on sustainability. For example, innovative seals and asbestos-free brake shoes are used, as well as other environmentally friendly materials.
Features and technical data
- Load capacities up to 5000 kg
- Lifting ranges up to 6.0 m
- Drive type: Diesel
- Load centre distance: 600 mm
- Mast: Triplex
- Battery: 12 V
- Motor: Deutz TCD 3.6 L4
- Full cabin
- Heating
- Interior mirror
- Windscreen with wiper
- Load safety guard
| Model | HLRT50-XF (4WD) |
|---|---|
| Drive | Diesel |
| Load capacity (kg) | 5.000 |
| Free lift (depending on mast variant, mm) | 160 - 2.000 |
| Lifting height (depending on mast variant, mm) | 3.000 - 6.000 |
| Mast height extended (depending on mast variant, mm) | 4.183 - 7.534 |
| Height of protective roof (cabin, mm) | 2.575 |
| Overall length (mm) | 4.865 |
| Overall width (mm) | 2.105 |
| Fork arm dimensions (mm) | 60/150/1.220 |
| Driving speed (with/without load, km/h) | 25 / 25 |
| Max. gradeability (with load %)) | 45 |
| Truck weight (kg) | 8.900 |
Mast variants models HLRT50-XF (4WD) type standard
| Lifting height (mm) | Overall height lowered (mm) | Overall height raised without load safety guard (mm) | Overall height raised with load safety guard (mm) | Free lift without load safety guard (mm) | Free lift with load safety guard (mm) | Tilt of loading surface max. (degree) |
|---|---|---|---|---|---|---|
| 3.000 | 2.685 | 4.183 | 4.534 | 160 | 160 | 15 / 15 |
| 3.300 | 2.835 | 4.483 | 4.834 | 160 | 160 | 15 / 15 |
| 3.500 | 2.935 | 4.683 | 5.034 | 160 | 160 | 15 / 15 |
| 3.700 | 3.035 | 4.883 | 5.234 | 160 | 160 | 15 / 15 |
| 4.000 | 3.185 | 5.183 | 5.534 | 160 | 160 | 15 / 15 |
| 4.500 | 3.485 | 5.685 | 6.034 | 160 | 160 | 15 / 15 |
| 5.000 | 3.735 | 6.185 | 6.534 | 160 | 160 | 15 / 15 |
Mast variants model HLRT50-XF (4WD) type triplex
| Lifting height (mm) | Overall height lowered (mm) | Overall height raised without load safety guard (mm) | Overall height raised with load safety guard (mm) | Freel lift without load safety guard (mm) | Free lift with load safety guard (mm) | Tilt of loading surface max. (degree) |
|---|---|---|---|---|---|---|
| 4.000 | 2.760 | 5.470 | 5.534 | 1.300 | 1.051 | 15 / 15 |
| 4.300 | 2.850 | 5.740 | 5.834 | 1.420 | 1.141 | 15 / 15 |
| 4.500 | 2.910 | 5.920 | 6.034 | 1.500 | 1.201 | 15 / 15 |
| 4.800 | 3.010 | 6.220 | 6.334 | 1.600 | 1.301 | 15 / 15 |
| 5.000 | 3.060 | 6.399 | 6.534 | 1.671 | 1.351 | 10 / 15 |
| 5.500 | 3.260 | 6.970 | 7.034 | 1.800 | 1.551 | 10 / 15 |
| 6.000 | 3.410 | 7.420 | 7.534 | 2.000 | 1.701 | 10 / 15 |
