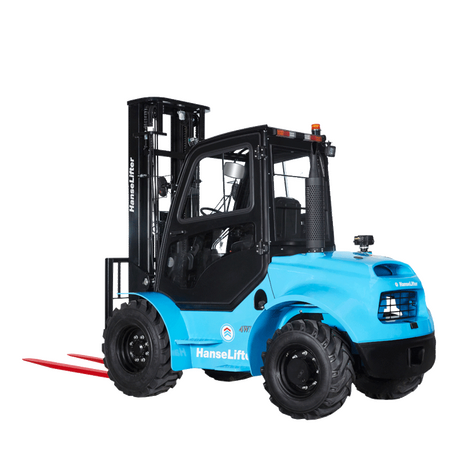

HLRT-XF (2WD) 5.0 t all terrain forklift truck

For rough terrain and high-tonnage goods

Load capacities: 5000 kg
Motor: DEUTZ TCD 3.6 L4
Wet multi-disc brake
High ground clearance
Technical data

Product advice and sales

Product description

The strong forklift truck for rough terrain

The HLRT-XF (2WD) all terrain forklift trucks are the ideal forklift trucks for rough terrain. They have large pneumatic tyres, 2 forward gears and one reverse gear for respective gradients and an automatic differential lock. In addition, there is a differential gearbox with automatic locking function, an optimised steering axle assembly and improved brakes. This ensures optimal traction even in bad weather conditions and harsh operating environments.

Energy efficiency and steering

The HLRT-XF (2WD) all terrain forklift trucks have an innovative hydraulic steering system with dynamic load measurement, which helps to improve energy efficiency and reduce hydraulic loss. All electric components are integrated in the new vehicle controller. This controller offers optimum temperature and water resistance and excellent vibration resistance.

Sustainability

The specially developed engine of the HLRT-XF (2WD) provides an optimal balance between environmental friendliness and performance. Environmentally friendly materials are used in the manufacture of the forklift truck, such as innovative seals and asbestos-free brake shoes.

Features and technical data

Features

Load capacities 5000 kg
Lift: 3000 mm
Drive type: Diesel
Load centre distance: 600 mm
Mast: Triplex
Battery: 12 V
Motor: Deutz TCD 3.6 L4
Full cabin
Heating
Interior mirror
Windscreen with wiper
Load safety guard
Wet multi-disc brakes

technical data

Model	HLRT50-XF (2WD)
Drive	Diesel
Load capacity (kg)	5.000
Free lift (depending on mast variant, mm)	160 - 2.000
Lift (depending on mast variant, mm)	3.000 - 6.000
Height (mast height extended, mm)	4.183 - 7.534
Height of protective roof (cabin, mm)	2.575
Overall length (mm)	4.865
Overall width (mm)	2.105
Turning radius (mm)	3.550
Fork arm dimensions (mm)	60/150/1.220
Driving speed (with/without load, km/h)	25 / 25
Motor	Deutz TCD 3.6 L4
Emission STD	EUROIIIB/TIer4F
Truck weight (kg)	8.700

Mast variants models HLRT50-XF (2WD) type standard

Lifting height (mm)	Overall height lowered (mm)	Overall height raised without load safety guard (mm)	Overall height raised with load safety guard (mm)	Free lift without load (mm)	Free lift with load safety guard (mm)	Tilt of loading surface max. (degree)
3.000	2.685	4.183	4.534	160	160	15 / 15
3.300	2.835	4.483	4.834	160	160	15 / 15
3.500	2.935	4.683	5.034	160	160	15 / 15
3.700	3.035	4.883	5.234	160	160	15 / 15
4.000	3.185	5.183	5.534	160	160	15 / 15
4.500	3.485	5.685	6.034	160	160	15 / 15
5.000	3.735	6.185	6.534	160	160	15 / 15

Hubmastvarianten Modell HLRT50-XF (2WD) Typ Triplex

Hubhöhe (mm)	Bauhöhe gesenkt (mm)	Bauhöhe gehoben ohne Lastschutzgitter (mm)	Bauhöhe gehoben mit Lastschutzgitter (mm)	Freihub ohne Lastschutzgitter (mm)	Freihub mit Lastschutzgitter (mm)	Neigungswinkel (Grad)
4.000	2.760	5.470	5.534	1.300	1.051	15 / 15
4.300	2.850	5.740	5.834	1.420	1.141	15 / 15
4.500	2.910	5.920	6.034	1.500	1.201	15 / 15
4.800	3.010	6.220	6.334	1.600	1.301	15 / 15
5.000	3.060	6.399	6.534	1.671	1.351	10 / 15
5.500	3.260	6.970	7.034	1.800	1.551	10 / 15
6.000	3.410	7.420	7.534	2.000	1.701	10 / 15
