Product description
Environmentally friendly LPG drive

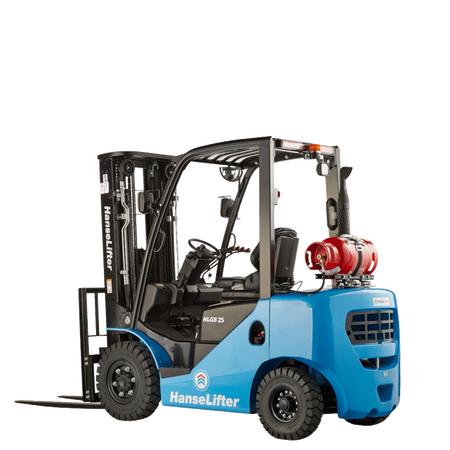

The HLGS-XF 2.0 - 2.5 t LPG forklift trucks create significantly less pollutant emissions in comparison with diesel forklift trucks. Despite this, LPG forklift trucks have the same power as diesel forklift trucks. Due to their low emissions, LPG forklift trucks are ideally suited for use in warehouses and halls. LPG burns with fewer residues than conventional diesel engines, resulting in a longer service life and maintenance intervals.
Outstanding quality
All assemblies, such as the chassis and mast, are only manufactured from high-quality materials. The careful selection of the materials guarantees the robustness and long service life of the forklift truck. All assemblies that may require servicing are easily accessible. The different oil levels, as well as the cooling water, can be easily checked by the driver. Even when exposed to high dust levels, the combustion engine is protected thanks to the specially designed safety air filter.
Attachments and special constructions
It goes without saying that we also offer suitable attachments. If an LPG forklift truck in its original dimensions does not meet your requirements, we will be happy to adapt the device to your individual wishes. Please call us or send us an email. We look forward to hearing from you!
Features and technical data
- Load capacities depending on model from 2000 kg to 2500 kg
- Lifting ranges up to 7000 mm
- NISSAN© or GM© industrial motors with high torque (NISSAN K21 / K25 or GM 4.3l)
- Low-maintenance Okamura© transmissions
- IMPCO© system for an optimal gas mixture
- Additional hydraulic circuits pre-installed for attachments
- Clearly laid out controls in the cockpit
- Easy service and maintenance thanks to easy accessibility of all components
- Ergonomic and clearly laid out workplace
- Comfort driver's seat by GRAMMER
- Lighting and safety package as standard
Model | HLGS20-XF | HLGS25-XF |
---|---|---|
Drive | LPG | LPG |
Load capacity (kg) | 2.000 | 2.500 |
Free lift (depending on mast variant, mm) | 140 - 2.370 | 140 - 2.370 |
Lift (depending on mast variant, mm) | 2.000 - 7.000 | 2.000 - 7.000 |
Height mast height extended (depending on mast variant, mm) | 2.660 - 8.045 | 2.660 - 8.045 |
Protective roof height (mm) | 2.135 (2.215) | 2.135 (2.215) |
Overall length (mm) | 3.600 | 3.675 |
Overall width (mm) | 1.155 | 1.155 |
Fork arm dimensions (mm) | 40/122/1.070 | 40/122/1.070 |
Pulling force (with/without load) | 18.400 / - | 18.400 / - |
Truck weight without battery (kg) | 3.405 | 3.765 |
Mast variants models HLGS15-XF and HLGS18-XF type standard
Lifting height (mm) | Overall height min. (mm) | Overall height max with / without load safety guard (mm) | Free lift with / without load safety guard (mm) | Tilt of loading surface max. (min / max, degree) | Load capacity HLGS20-XF (kg) | Load capacity HLGS25-XF (kg) |
---|---|---|---|---|---|---|
2.000 | 1.535 | 3.045 / 2.660 | 140 | 6 / 12 | 2.000 | 2.500 |
2.500 | 1.785 | 3.545 / 3.160 | 140 | 6 / 12 | 2.000 | 2.500 |
2.700 | 1.885 | 3.745 / 3.360 | 140 | 6 / 12 | 2.000 | 2.500 |
3.000 | 2.035 | 4.045 / 3.660 | 140 | 6 / 12 | 2.000 | 2.500 |
3.300 | 2.185 | 4.345 / 3.960 | 140 | 6 / 12 | 2.000 | 2.500 |
3.500 | 2.285 | 4.545 / 4.160 | 140 | 6 / 12 | 2.000 | 2.500 |
3.700 | 2.435 | 4.745 / 4.360 | 140 | 6 / 12 | 2.000 | 2.500 |
4.000 | 2.635 | 5.045 / 4.660 | 140 | 6 / 12 | 2.000 | 2.450 |
4.300 | 2.785 | 5.345 / 4.960 | 140 | 6 / 6 | 1.950 | 2.300 |
4.500 | 2.885 | 5.545 / 5.160 | 140 | 6 / 6 | 1.900 | 2.150 |
4.700 | 2.985 | 5.745 / 5.360 | 140 | 6 / 6 | 1.850 | 2.000 |
5.000 | 3.135 | 6.045 / 5.660 | 140 | 6 / 6 | 1.800 | 1.850 |
5.500 | 3.385 | 6.545 / 6.160 | 140 | 3 / 6 | / | / |
6.000 | 3.635 | 7.045 / 6.660 | 140 | 3 / 6 | / | / |
Mast variants models HLGS15-XF and HLGS18-XF type duplex
Lifting height (mm) | Overall height min. (mm) | Overall height max. with / without load safety guard (mm) | Free lift with / without load safety guard (mm) | Tilt of loading surface max. (min / max, degree) | Load capacity HLGS20-XF (kg) | Load capacity HLGS25-XF (kg) |
---|---|---|---|---|---|---|
2.000 | 1.560 | 3.045 / 2.680 | 510 / 880 | 6 / 12 | 2.000 | 2.500 |
2.500 | 1.810 | 3.545 / 3.180 | 760 / 1.130 | 6 / 12 | 2.000 | 2.500 |
2.700 | 1.910 | 3.745 / 3.380 | 860 / 1.230 | 6 / 12 | 2.000 | 2.500 |
3.000 | 2.010 | 4.045 / 3.680 | 960 / 1.330 | 6 / 12 | 2.000 | 2.500 |
3.300 | 2.160 | 4.345 / 3.980 | 1.110 / 1.480 | 6 / 12 | 2.000 | 2.500 |
3.500 | 2.260 | 4.545 / 4.180 | 1.210 / 1.580 | 6 / 12 | 2.000 | 2.500 |
3.700 | 2.360 | 4.745 / 4.330 | 1.310 / 1.680 | 6 / 12 | 2.000 | 2.500 |
4.000 | 2.560 | 5.045 / 4.680 | 1.510 / 1.880 | 6 / 12 | 2.000 | 2.450 |
Mast variants models HLGS15-XF and HLGS18-XF type triplex
Lifting height (mm) | Overall height min. (mm) | Overall height max with / without load safety guard (mm) | Free lift with / without load safety guard (mm) | Tilt of loading surface max. (min / max, degree) | Load capacity HLGS20-XF (kg) | Load capacity HLGS25-XF (kg) |
---|---|---|---|---|---|---|
4.000 | 2.000 | 5.045 / 4.700 | 955 / 1.300 | 6 / 6 | 1.900 | 2.350 |
4.300 | 2.100 | 5.345 / 5.000 | 1.055 / 1.400 | 6 / 6 | 1.850 | 2.200 |
4.500 | 2.150 | 5.595 / 5.230 | 1.105 / 1.470 | 6 / 6 | 1.800 | 2.050 |
4.700 | 2.200 | 5.745 / 5.380 | 1.155 / 1.520 | 6 / 6 | 1.750 | 1.900 |
5.000 | 2.300 | 6.045 / 5.680 | 1.255 / 1.620 | 6 / 6 | 1.700 | 1.750 |
5.500 | 2.500 | 6.545 / 6.180 | 1.455 / 1.820 | 3 / 6 | 1.300 | 1.400 |
6.000 | 2.750 | 7.095 / 6.730 | 1.705 / 2.070 | 3 / 6 | 900 | 1.000 |
6.500 | 2.900 | 7.545 / 7.200 | 1.855 / 2.200 | 3 / 6 | / | / |
7.000 | 3.050 | 8.045 / 7.680 | 2.005 / 2.370 | 3 / 6 | / | / |
