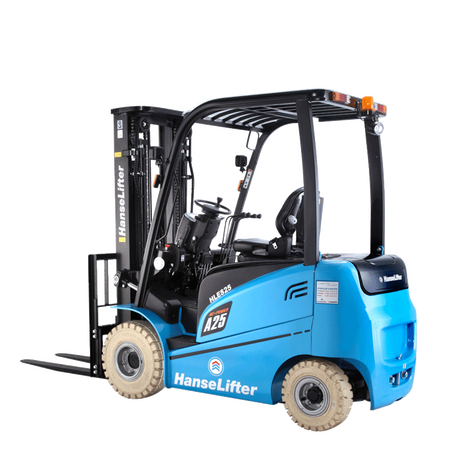

HLES-AC4 2.0 - 2.5 t electric forklift trucks

With powerful Curtis AC motors

Load capacities: 2000 - 2500 kg
Lifting heights up to max. 6500 mm
Compact design
Curtis AC drive control
Low workload

Product description

HLES-AC4 2.0 - 2.5 t electric forklift trucks - powerful, compact, emission-free

You are spoilt for choice with the HanseLifter HLES-AC4 2.0 - 2.5 t electric forklift trucks. You can select the model that suits you from 10 different models. The HLES series forklift trucks can be used outdoors and indoors without any restrictions. Especially indoors, the robust HLES-AC4 2.0 - 2.5 t electric forklift trucks impress with their compact dimensions. Quietly and efficiently transport your pallets up to max. 4990 kg to their destination.

High driving comfort

With the HLES-AC4 2.0 - 2.5 t electric forklift trucks, you can experience high driving comfort. The cockpit has a clearly laid out and functional design, so that all controls are always within view. The lighting consists of two LED working spotlights at the front and one LED combination light at the rear. The battery is mounted under the driver's seat so it is easily accessible, ensuring a low centre of gravity

Reliability and precision

The on-board electronics are installed in the rear of the HLES-AC4 2.0 - 2.5 t electric forklift truck. In just a few steps, it is easily accessible for any maintenance required. The two powerful AC controllers are connected to each other via a high-quality CAN bus system, which ensures that the control signals between the controllers and motors are transmitted precisely. As a result, manoeuvring the HLES-AC4 2.0 - 2.5 t electric forklift truck is particularly responsive.

Features and technical data

Features

Load capacities from 2000 to 2500 kg
Lifting ranges up to max. 6500 mm
Compact design
Curtis AC drive control
Ideal visibility and space
Electric parking brake
Complete LED lighting system
Load safety guard
Ergonomic hydraulic levers
Driver's comfort seat
OPS safety system

Technical data

Model	HLES20-AC4	HLES25-AC4	HLES25-ALC4
Drive	Electric	Electric	Electric
Load capacity (kg)	2.000	2.500	2.500
Free lift (depending on mast variant, mm)	140 - 2.111	140 - 2.111	140 - 2.111
Lift (depending on mast variant, mm)	2.500 - 6.500	2.500 - 6.500	2.500 - 6.500
Mast height extended (depending on mast variant, mm)	3.234 - 7.556	3.234 - 7.556	3.234 - 7.556
Protective roof height (mm)	2.155	2.155	2.190
Overall length (mm)	3.412	3.412	3.552
Overall width (mm)	1.265	1.265	1.265
Fork arm dimensions (mm)	40/122/1.070	40/122/1.070	40/122/1.070
Driving speed (with/without load, km/h)	14 / 14	14 / 14	14 / 14
Lifting speed (with/without load, mm/s)	280 / 440	230 / 430	230 / 430
Pulling force (with/without load)	12.000 / 12.500	16.000 / 17.000	16.000 / 17.000
Service brake	Hydraulic	Hydraulic	Hydraulic
Drive motor (power S2 60 min., kW)	11 AC	11 AC	15 AC
Lift motor (power at S3 15%, kW)	8,6 AC	8,6 AC	10 AC
Battery voltage (rated capacity K5, V/Ah)	48 / 630	48 / 630	80 / 500
Truck weight incl. battery (kg)	3.700	4.180	4.580

Mast variants models HLES20-AC4, HLES25-AC4 and HLES25-ALC4 type standard

Lifting height (mm)	Overall height lowered (mm)	Overall height raised with / without load safety guard(mm)	Free lift with / without load safety guard (mm)	Tilt of loading surface max. (degree)	Load capacity single tyres (HLES20-AC4, kg)	Load capacity single tyres (HLES25-AC4, kg)	Load capacity single tyres (HLES25-ALC4, kg)
2.500	1.786	3.556 / 3.234	140	5 / 10	2.000	2.500	2.500
2.700	1.886	3.756 / 3.434	140	5 / 10	2.000	2.500	2.500
3.000	2.006	4.056 / 3.734	140	5 / 10	2.000	2.500	2.500
3.300	2.186	4.356 / 4.034	140	5 / 10	2.000	2.500	2.500
3.500	2.286	4.556 / 4.234	140	5 / 10	2.000	2.500	2.500
3.600	2.336	4.656 / 4.334	140	5 / 10	2.000	2.500	2.500
4.000	2.586	5.056 / 4.734	140	5 / 10	1.900	2.300	2.500
4.300	2.751	5.356 / 5.034	140	5 / 6	1.800	2.100	2.500
4.500	2.861	5.556 / 5.234	140	5 / 6	1.700	2.000	2.300

Mast variants models HLES20-AC4, HLES25-AC4 and HLES25-ALC4 type duplex

Lifting (mm)	Overall height lowered (mm)	Overall height raised with / without load safety guard (mm)	Free lift with / without load safety guard (mm)	Tilt of loading surface max. (degree)	Load capacity single tyres (HLES20-AC4, kg)	Load capacity single tyres (HLES25-AC4, kg)	Load capacity single tyres (HLES25-ALC4, kg)
2.500	1.766	3.556 / 3.185	720 / 1.091	5 / 10	2.000	2.500	2.500
2.700	1.866	3.756 / 3.385	820 / 1.191	5 / 10	2.000	2.500	2.500
3.000	1.966	4.056 / 3.685	920 / 1.291	5 / 10	2.000	2.500	2.500
3.300	2.116	4.356 / 3.985	1.070 / 1.441	5 / 10	2.000	2.500	2.500
3.600	2.266	4.656 / 4.285	1.220 / 1.591	5 / 10	2.000	2.500	2.500
4.000	2.516	5.056 / 4.685	1.470 / 1.841	5 / 10	1.900	2.300	2.500

Mast variants models HLES20-AC4, HLES25-AC4 and HLES25-ALC4 type triplex

Lifting height (mm)	Overall height lowered (mm)	Overall height raised with / without load safety guard (mm)	Free lift with / without load safety guard (mm)	Tilt of loading surface max. (degree)	Load capacity single tyres (HLES20-AC4, kg)	Load capacity single tyres (HLES25-AC4, kg)	Load capacity single tyres (HLES25-ALC4, kg)
4.300	1.976	5.356 / 5.019	930 / 1.267	5 / 6	1.700	2.000	2.300
4.500	2.096	5.556 / 5.219	1.050 / 1.387	5 / 6	1.600	1.900	2.200
4.800	2.196	5.856 / 5.519	1.150 / 1.487	5 / 6	1.500	1.700	2.100
5.000	2.261	6.056 / 5.719	1.215 / 1.552	5 / 6	1.400	1.600	1.900
5.500	2.426	6.556 / 6.219	1.380 / 1.717	3 / 6	1.050	1.200	1.400
6.000	2.641	7.056 / 6.719	1.595 / 1.932	3 / 6	700	800	1.000
6.500	2.820	7.556 / 7.219	1.774 / 2.111	3 / 6	500	650	850
