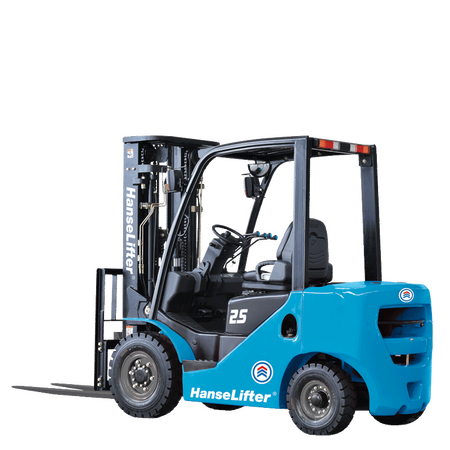

HLDS-XF 2.0 - 2.5 t diesel forklift trucks

The compact diesel forklift truck

Various models
Load capacities up to 2500 kg
Lifting height up to max. 7 m
Additional hydraulic circuits for attachments

Product description

HLDS-XF 2.0 - 2.5 t diesel forklift trucks - with additional hydraulic circuits for attachments

HanseLifter HLDS-XF 2.0 - 2.5 t diesel forklift trucks are particularly impressive due to their agile and economic driving characteristics. Whether in halls or transshipment locations, the robust diesel forklift trucks are always a match for their task. The environment is also taken into account, thanks to the NETT© emission control system which is installed as standard. In addition, the forklift trucks are tested in accordance with EURO III.

Optimal equipment

In addition to the basic equipment, you can choose from a wide range of optional equipment. For example, for working outdoors exposed to all weather conditions, you can equip your forklift truck with a full cabin with heating and air conditioning. The cabins are robust and spacious, providing comfortable seating even for taller people. The clearly laid out cockpit has a functional design, so that all controls are always within view and easy reach.

Attachments and special constructions

We also offer suitable attachments for our forklift trucks for a wide range of situations. If the forklift truck does not have the right dimensions for you, our Special Construction Department can assist with an individual customised forklift truck. Please call us on +49 (0) 421 33636 220 or send an email to post@hanselifter.de. We look forward to hearing from you!

Features and technical data

Features

Load capacities from 2.0 t to 2.5 t
Lifting ranges up to 7.0 m
High-torque industrial diesel engines (ISUZU, YANMAR, PERKINS, NISSAN)
Low-maintenance Okamura© transmissions (for models up to 3.5 t load capacity)
NETT emission control system installed as standard
Optional soot filter system by PURItech
Additional hydraulic circuits pre-installed for attachments
Clearly laid out controls in the cockpit
Easy service and maintenance thanks to easy accessibility of all components
Ergonomic and clearly laid out workplace
Comfort driver's seat by GRAMMER
Lighting and safety package as standard

Technical data

Model	HLDS20-XF	HLDS25-XF
Drive	Diesel	Diesel
Load capacity (kg)	2.000	2.500
Free lift (depending on mast variant, mm)	140 - 2.370	140 - 2.370
Lifting height (depending on mast variant, mm)	2.000 - 7.000	2.000 - 7.000
Mast height extended (depending on mast variant, mm)	2.660 - 8.045	2.660 - 8.045
Protective roof (cabin, mm)	2.135 (2.215)	2.135 (2.215)
Overall length (mm)	3.600	3.675
Overall width (mm)	1.155	1.155
Fork arm dimensions (mm)	40/122/1.070	40/122/1.070
Max. gradeability (with/without load, %)	34 / -	29 / -
Truck weight (kg)	3.405	3.765

Mast variants models HLDS20-XF and HLDS25-XF type standard

Lifting height (mm)	Overall height lowered (mm)	Overall height raised with / without load safety guard (mm)	Free lift with / without load safety guard (mm)	Tilt of loading surface max. (degree)	Load capacity single tyres (kg) HLDS20-XF	Load capacity single tyres (kg) HLDS25-XF
2.000	1.535	3.045 / 2.660	140	6 / 12	2.000	2.500
2.500	1.785	3.545 / 3.160	140	6 / 12	2.000	2.500
2.700	1.885	3.745 / 3.360	140	6 / 12	2.000	2.500
3.000	2.035	4.045 / 3.660	140	6 / 12	2.000	2.500
3.300	2.185	4.345 / 3.960	140	6 / 12	2.000	2.500
3.500	2.285	4.545 / 4.160	140	6 / 12	2.000	2.500
3.700	2.435	4.745 / 4.360	140	6 / 12	2.000	2.500
4.000	2.635	5.045 / 4.660	140	6 / 12	2.000	2.450
4.300	2.785	5.345 / 4.960	140	6 / 6	1.950	2.300
4.500	2.885	5.545 / 5.160	140	6 / 6	1.900	2.150
4.700	2.985	5.745 / 5.360	140	6 / 6	1.850	2.000
5.000	3.135	6.045 / 5.660	140	6 / 6	1.800	1.850
5.500	3.385	6.545 / 6.160	140	3 / 6	/	/
6.000	3.635	7.045 / 6.660	140	3 / 6	/	/

Mast variants models HLDS20-XF and HLDS25-XF type duplex

Lifting height (mm)	Overall height lowered (mm)	Overall height raised with / without load safety guard (mm)	Free lift with / without load safety guard (mm)	Tilt of loading surface max. (degree)	Load capacity single tyres (kg) HLDS20-XF	Load capacity single tyres (kg) HLDS25-XF
2.000	1.560	3.045 / 2.680	510 / 880	6 / 12	2.000	2.500
2.500	1.810	3.545 / 3.180	760 / 1.130	6 / 12	2.000	2.500
2.700	1.910	3.745 / 3.380	860 / 1.230	6 / 12	2.000	2.500
3.000	2.010	4.045 / 3.680	960 / 1.330	6 / 12	2.000	2.500
3.300	2.160	4.345 / 3.980	1.110 / 1.480	6 / 12	2.000	2.500
3.500	2.260	4.545 / 4.180	1.210 / 1.580	6 / 12	2.000	2.500
3.700	2.360	4.745 / 4.330	1.310 / 1.680	6 / 12	2.000	2.500
4.000	2.560	5.045 / 4.680	1.510 / 1.880	6 / 12	2.000	2.450

Mast variants models HLDS20-XF and HLDS25-XF type triplex

Lifting height (mm)	Overall height (mm)	Overall height raised with / without load safety guard (mm)	Free lift with / without load safety guard (mm)	Tiltof loading surface max. (degree)	Load capacity single tyres (kg) HLDS20-XF	Load capacity single tyres(kg) HLDS25-XF
4.000	2.000	5.045 / 4.700	955 / 1.300	6 / 6	1.900	2.350
4.300	2.100	5.345 / 5.000	1.055 / 1.400	6 / 6	1.850	2.200
4.500	2.150	5.595 / 5.230	1.105 / 1.470	6 / 6	1.800	2.050
4.700	2.200	5.745 / 5.380	1.155 / 1.520	6 / 6	1.750	1.900
5.000	2.300	6.045 / 5.680	1.255 / 1.620	6 / 6	1.700	1.750
5.500	2.500	6.545 / 6.180	1.455 / 1.820	3 / 6	1.300	1.400
6.000	2.750	7.095 / 6.730	1.705 / 2.070	3 / 6	900	1.000
6.500	2.900	7.545 / 7.200	1.855 / 2.200	3 / 6	/	/
7.000	3.050	8.045 / 7.680	2.005 / 2.370	3 / 6	/	/
