Product description

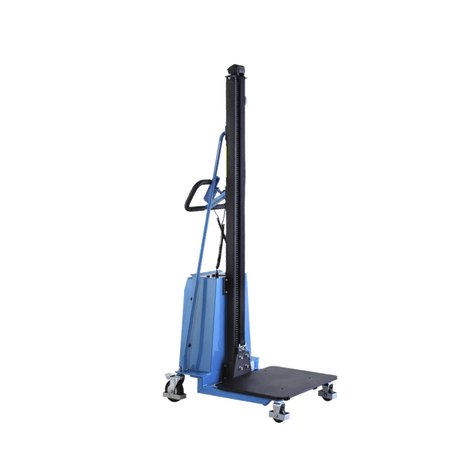

The E-MES mini lift
The easy to handle and practical E-MES electric mini lift is a real aid. Wherever relatively heavy loads have to be lifted and transported without back strain, the E-MES mini lift is the ideal tool. Lifting is electric, fast and quiet. Transport is very easy. Batteries can be simply charged at any socket. The platform can be raised electrically to a comfortable, ergonomic working height, so that your files, books, cartons or magazines are always at a convenient height.
Equipment
The models with up to 150 kg load capacity are equipped with a water-repellent PVC platform, while the models with a 250 kg load capacity have a sturdy metal platform. The electric mini lifts have maintenance-free batteries installed and an integrated charger with approx. 1.5 m supply cable. The smooth-running and abrasion-resistant rollers made of polyurethane (PU) are quiet and have good grip. The steering wheels are equipped with parking brakes.
Different versions
The E-MES electric mini lift is available in four versions as standard. They differ in their load capacity as well as their lifting height. Other differences are listed in the technical data. If the standard version of the E-MES does not meet your requirements, our Special Construction Department can assist you. We are happy to adapt your HanseLifter materials handling device to the dimensions required by you. We look forward to your request by email or phone.
Features & technical data
- Load capacities up to max. 250 kg (model-dependent)
- Lifting heights up to max. 1965 mm (model-dependent)
- Good manoeuvrability in the tightest of spaces
- Electric lifting and lowering
- Can be positioned under special pallets and shelves
- Easy to clean PVC platform
- Maintenance-free batteries
- Smooth-running polyurethane rollers
- Parking brakes on both steering wheels
Model | E-MES100-17 | E-MES150-15 | E-MES250-16 | E-MES250-19 |
---|---|---|---|---|
Features | Electric | Electric | Electric | Electric |
Load capacity (kg) | 100 | 150 | 250 | 250 |
Lifting range (mm) | 135 - 1.700 | 135 - 1.500 | 135 - 1.635 | 135 - 1.965 |
Free lift (mm) | 1.567 | 1.267 | 1.500 | 1.800 |
Overall height (mm) | 2.000 | 1.790 | 1.910 | 2.250 |
Loading area length (mm) | 470 | 475 | 475 | 475 |
Loading area width (mm) | 600 | 600 | 605 | 605 |
Turning radius (mm) | 850 | 850 | 840 | 840 |
Operation | Manual | Manual | Manual | Manual |
Tyres | Polyurethane | Polyurethane | Polyurethane | Polyurethane |
Overall length (mm) | 890 | 870 | 850 | 850 |
Overall width (mm) | 600 | 600 | 610 | 610 |
Truck weight (kg) | 66 | 66 | 94 | 94 |
Article number | GE0023002 | GE0023003 | GE0031224 | GE0031147 |
