E-SDJ15 semi-electric stackers
Electric lifting and manual moving
- Load capacity: 1500 kg
- Max. lifting height: 3500 mm*
- Fork length: 1100 mm
- Including battery and charger
- Can be charged at any socket
*Lifting height model-dependent
Product description

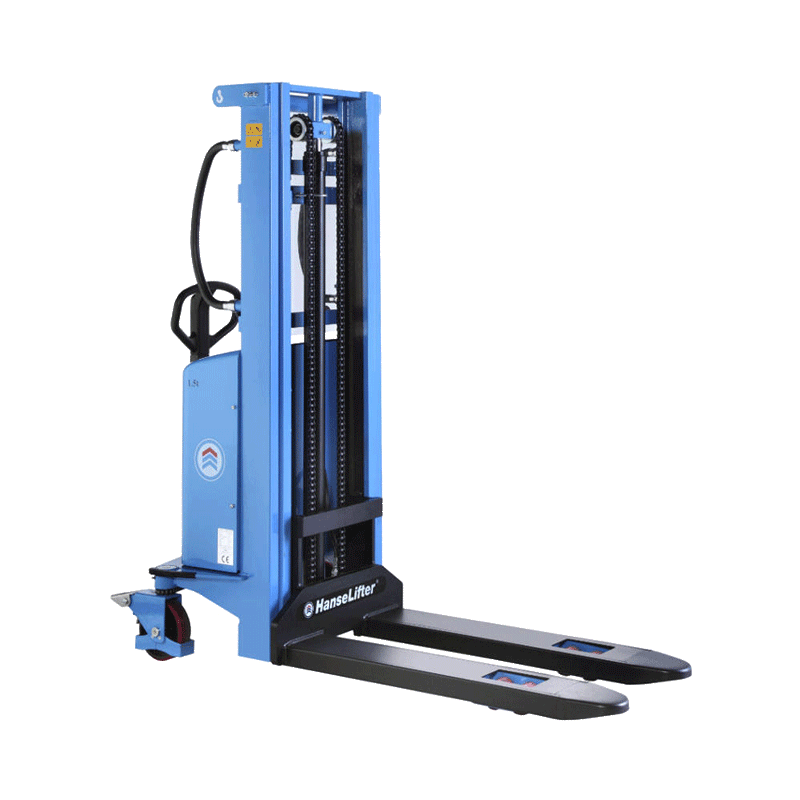

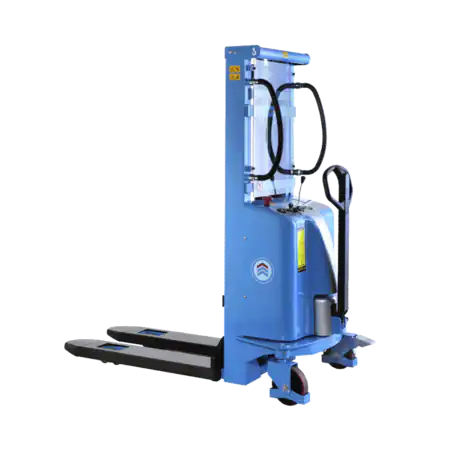

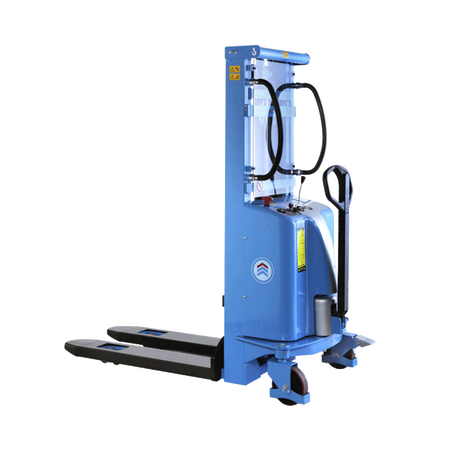

E-SDJ15 semi-electric stacker

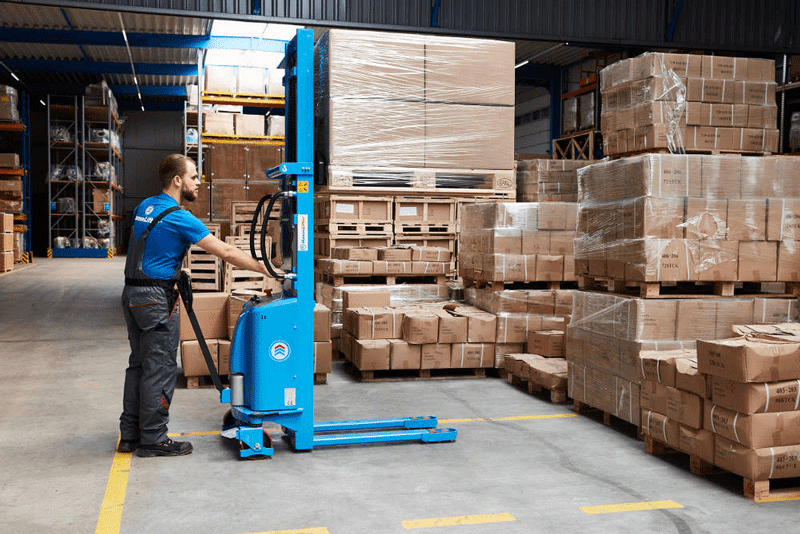

Manual moving, electric lifting With the E-SDJ15 series semi-electric stacker you can electrically lift 1500 kg up to a height of 3500 mm. The E-SDJ15 semi-electric stacker is very easy to manoeuvre thanks to the high-quality polyurethane rollers and the integrated track steering. Sturdy, rubberised handles and a rubberised tiller handle ensure that E-SDJ15 semi-electric stacker can be easily manoeuvred in tight spaces and can always be controlled. With a semi-electric stacker of the E-SDJ15 series, you have a versatile device that is quick to deploy.
Drive through doors with loads
The full free lift of 1490 mm and an overall height of 1980 mm means that you can drive the E-SDJ1516 model through doors of normal height even when the stacker is loaded. This model is also ideal for loading and unloading of lorries or containers.
Tyres
The E-SDJ15 is equipped with smooth-running polyurethane rollers and high-quality ball bearings as standard, making it easy to handle. The PU rollers are also very abrasion-resistant and provide good grip. In addition, the stacker can easily and quietly roll over small surface irregularities.
Alternative versions
The E-SDJ15 is also available in a manual version. With the SDJ1516, lifting and moving of pallets is carried out manually. If you want to lift and move your pallets electrically without much effort, the E-DH10-BF or E-DH15-MG-E electric pallet stackers are the ideal alternatives.
Features and technical data
- Load capacity: 1500 kg
- Different lifting heights up to 3500 mm
- Different clearance heights
- Fork outer distance: 570 mm

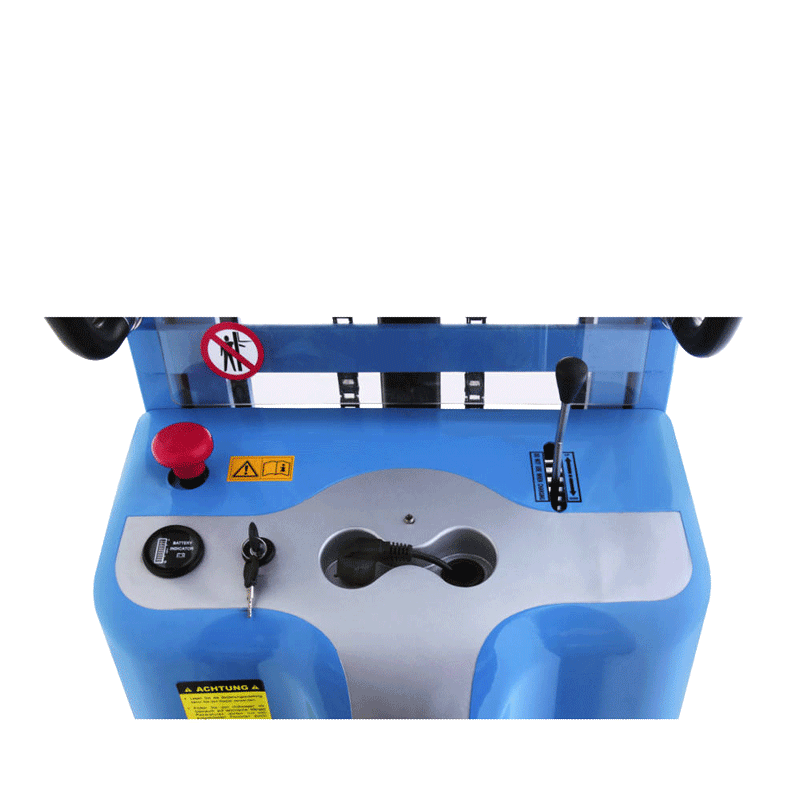

- Lifting via lever on the chassis
- Continuous, controlled lowering
- Incl. battery and charger
- Track steering for easy manoeuvrability
- Can be charged at any socket (230 V)
- Parking brake on right steering wheel
- Protective plexiglass screen
- For occasional stacking and unstacking of pallets
Model | E-SDJ1516 | E-SDJ1525 | E-SDJ1530 | E-SDJ1535 |
---|---|---|---|---|
Load capacity (kg) | 1.500 | 1.500 | 1.500 | 1.500 |

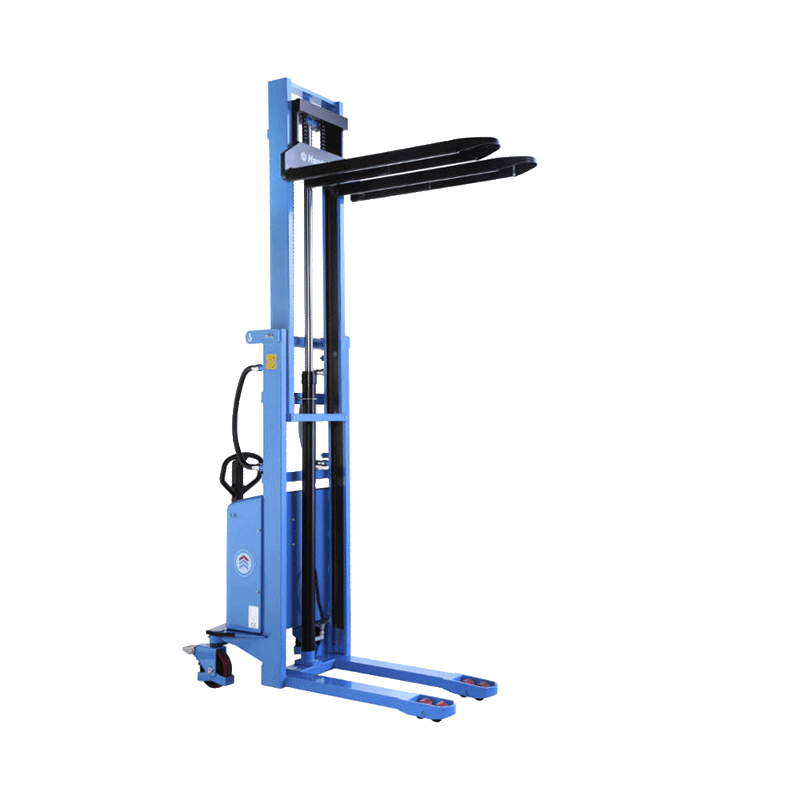

Lifting height (mm) | 1.600 | 2.500 | 3.000 | 3.500 |
Minimum fork height (mm) | 85 | 85 | 85 | 85 |
Lift (mm) | 1.515 | 2.415 | 2.915 | 3.415 |
Free lift (mm) | 1.490 | 100 | 100 | 100 |
Mast height raised (mm) | 2.000 | 3.040 | 3.520 | 4.020 |
Mast height lowered (mm) | 1.980 | 1.780 | 2.030 | 2.280 |
Load distance (mm) | 730 | 730 | 730 | 730 |
Overall length (mm) | 1.790 | 1.790 | 1.790 | 1.790 |
Overall width (mm) | 760 | 760 | 760 | 760 |
Fork dimensions (LxWxH, mm) | 1.100/180/60 | 1.100/180/60 | 1.100/180/60 | 1.100/180/60 |
Fork outer distance (mm) | 570 | 570 | 570 | 570 |
Turning radius (mm) | 1.490 | 1.490 | 1.490 | 1.490 |
Truck weight (kg) | 436 | 525 | 524 | 580 |
Article number | GE0023028 | GE0023029 | GE0023030 | GE0023032 |
