E-SDJ10 semi-electric stackers
Electric lifting and manual moving
- Load capacity: 1000 kg
- Max. lifting height: 3000 mm*
- Fork length: 1100 mm
- Including battery and charger
- Can be charged at any socket
*Lifting height model dependent

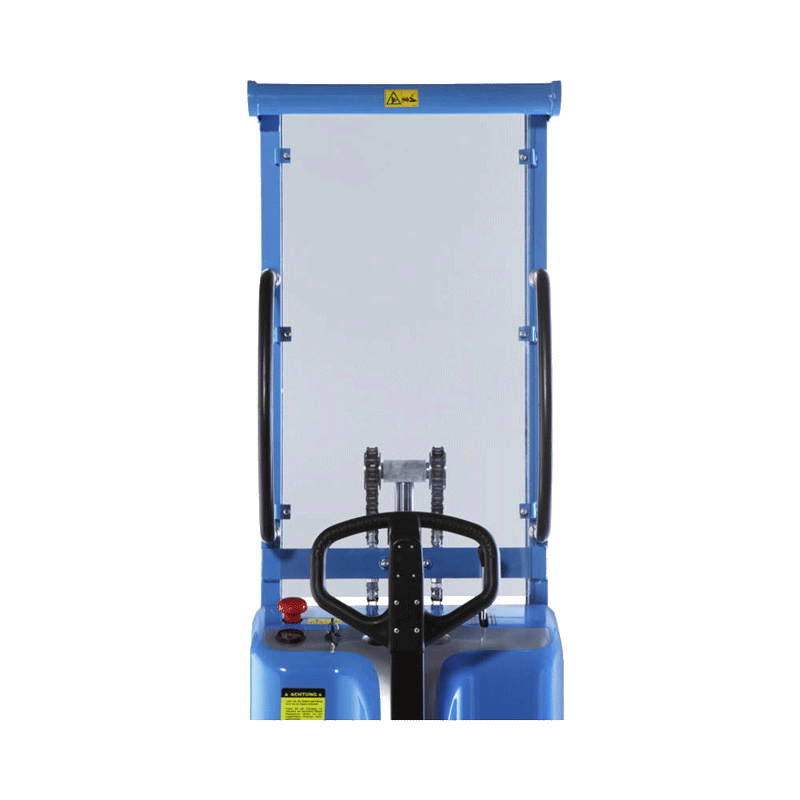

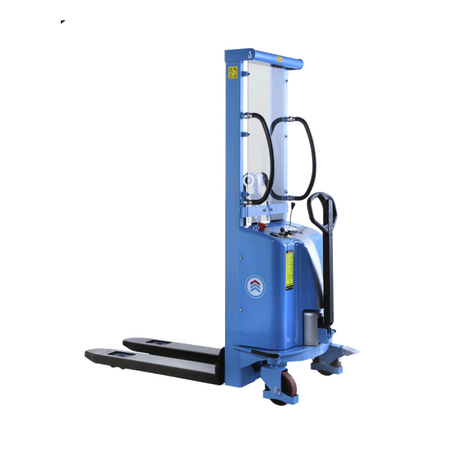

E-SDJ10 semi-electric stacker
With the inexpensive semi-electric stackers of the E-SDJ10 series, you have a versatile device that is quick to deploy. These semi-electric stackers are suitable for different application areas, such as loading and unloading of lorries and containers, stacking of pallets and other goods in warehouses or simply for transporting palletised goods over short distances. With the integrated charger of the E-SDJ10 which is operated at 230 V / 50 Hz, these semi-electric stackers can be easily charged at any socket so they can be redeployed quickly. A rubberised tiller handle and rubberised handles ensure that E-SDJ10 series semi-electric stacker can be easily manoeuvred even in tight spaces and can always be controlled.
1000 kg load capacity and different lifting heights
With a load capacity of 1000 kg and different lifting heights, you can choose from three models. Select from 1600, 2500 and 3000 mm lifting heights. The semi-electric stackers of the E-SDJ15 series are designed for load capacities up to 1500 kg. The E-SDJ10 semi-electric stacker can be charged at any standard socket. The battery is low-maintenance and durable.
Manual version
If you are looking for an inexpensive manual model, we recommend our SDJ10. The manual stacker is practically always ready for use.
Features and technical data
- Load capacity: 1000 kg
- Different lifting heights up to 3000 mm
- Fork outer distance: 570 mm
- Track steering for easy manoeuvrability
- Electric lifting and lowering of pallets
- Different clearance heights
- Can be charged at any socket (230 V
- Incl. battery and charger
- Continuous, controlled lowering
- Steering wheels with parking brake
- Convenient electric lifting and manual moving
| Model | E-SDJ1016 | E-SDJ1025 | E-SDJ1030 |
|---|---|---|---|
| Load capacity (kg) | 1.000 | 1.000 | 1.000 |
| Lifting height (mm) | 1.600 | 2.500 | 3.000 |
| Minimum fork height (mm) | 85 | 85 | 85 |
| Lift (mm) | 1.515 | 2.415 | 2.915 |
| Free lift (mm) | 1.415 | 100 | 100 |
| Mast height raised (mm) | 2.030 | 3.020 | 3.515 |
| Mast height lowered (mm) | 1.980 | 1.830 | 2.080 |
| Load distance (mm) | 680 | 680 | 680 |
| Overall length (mm) | 1.720 | 1.720 | 1.720 |
| Overall width (mm) | 760 | 760 | 760 |
| Fork dimensions (LxWxH, mm) | 1.100/180/60 | 1.100/180/60 | 1.100/180/60 |
| Fork outer distance (mm) | 570 | 570 | 570 |
| Turning radius (mm) | 1.470 | 1.470 | 1.470 |
| Truck weight (kg) | 353 | 475 | 462 |
| Article number | GE0023025 | GE0023026 | GE0023027 |
