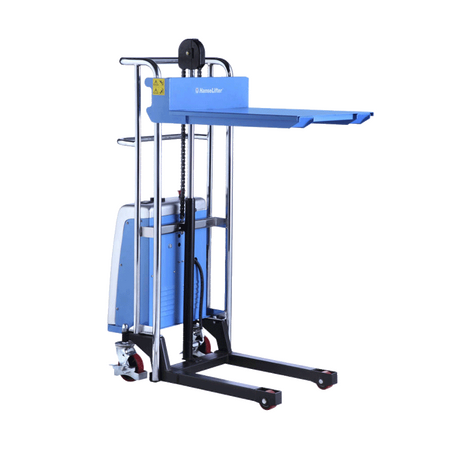

E-PS0 electric fork/platform pallet stackers - with removable platform
The electric fork/platform pallet stackers from the E-PS0 series are ideally suited for use in retail, such as supermarkets or specialist retailers. The electric pallet stackers are designed for order picking in those locations. But the E-PS0 series pallet stackers are also ideally suited for the transport of palletised and unpalletised goods. With a length of 640 mm, the forks of these electric pallet stackers are particularly suitable for displays, half and special pallets.
Flexible platform
With a single movement, the platform included with the electric fork/platform pallet stackers of the E-PS0 series can be easily mounted or removed again, allowing you to react quickly and flexibly to work requirements. Easy lifting and lowering at the touch of a button. The E-PS0 electric fork/platform pallet stackers are equipped with an integrated charger, allowing them to be easily charged at any socket (230 V/16 A).
Alternatives and special dimensions
The E-PS0 semi-electric pallet stacker is also available as a PS0 manual version. This is equipped with a foot pedal for lifting and lowering the fork. If you cannot find a suitable device for your requirements in our range, special constructions can be provided on request. Please get in touch with our Special Construction Department, by using our practical callback service or contacting one of our helpful advisors.
Features and technical data
- Load capacity: 400 kg
- Different lifting heights up to 1500 mm (model-dependent)
- Different clearance heights
- Fork outer distance: 545 mm
- Incl. removable platform
- Fork arms can be used for displays, half or special pallets, for example.
- Free lift
- Electric lifting drive
- Integrated charger
- Can be charged at standard sockets (230 V/16 A)
- Ideal for retail and warehouses
- Ideal for being carried on lorries
- High-quality polyurethane steering wheels and fixed rollers
- Robust parking brakes on both steering wheels
Model | E-PS0412 electric pallet stacker | E-PS0415 electric pallet stacker |
---|---|---|
Load capacity (kg) | 400 | 400 |
Lifting height (mm) | 1.200 | 1.500 |
Minimum fork height (mm) | 95 | 95 |
Lift (mm) | 1.105 | 1.405 |
Free lift (mm) | 1.045 | 1.255 |
Mast height raised (mm) | 1.505 | 1.800 |
Mast height lowered (mm) | 1.425 | 1.725 |
Overall length (mm) | 1.140 | 1.140 |
Overall width (mm) | 570 | 570 |
Fork dimensions (LxWxH, mm) | 640/110/50 | 640/110/50 |
Fork outer distance (mm) | 545 | 545 |
Turning radius (mm) | 940 | 940 |
Truck weight (kg) | 118 | 121 |
Article number | GE0023009 | GE0023010 |
