Elektrohubwagen E-LI-WALK15

The lightest electric pallet truck

  • Load capacity: 1,500 kg
  • Multifunctional tiller head
  • Integrated charger with automatic shut-off
  • Can be charged from any standard power outlet
  • Net weight: 190 kg

Product description

Electric Pallet Truck E-BF-WALK15 with DC Drive

The HanseLifter E-BF-WALK15 electric pallet truck is one of our latest models and is comparable to our E-BF-WALK15 electric pallet truck. Lifting, lowering, and traveling are electrically controlled, making operation significantly easier for the user. In addition, the E-LI-WALK15 electric pallet truck features an ergonomic and modular design that ensures comfortable and safe operation.

Perfect for Trucks and Confined Spaces

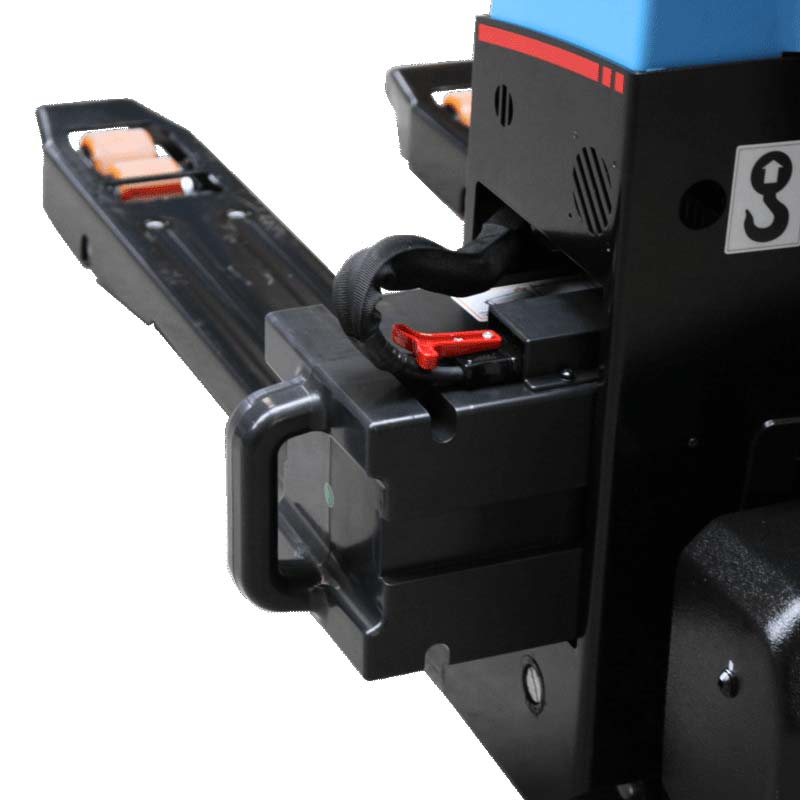

Thanks to its compact and lightweight design, the HanseLifter E-LI-WALK15 electric pallet truck has a low net weight and offers excellent maneuverability. With these characteristics, the E-BF-WALK electric pallet truck is frequently used for loading and unloading trucks. Its compact construction also makes the E-LI-WALK15 ideal for use in very tight spaces. The low-maintenance lithium-ion battery and the high-quality integrated charger ensure long operating times and fast recharging. Charging can be done at any standard power outlet.

High Quality Standards

One of the key quality features of the E-LI-WALK15 electric pallet truck is the advanced Curtis drive control system, which allows precise operation. Control via the user-friendly tiller head is intuitive. A battery and charge level indicator shows how long the device still needs to be charged. A full charge takes approximately 2 hours. The polyurethane wheels are extremely quiet, wear-resistant, and provide excellent traction. Thanks to its wheels, the E-LI-WALK15 rolls smoothly over uneven surfaces and offers outstanding handling. The tandem polyurethane rollers also provide an excellent balance between smooth running and durability.



Easy Operation of the E-LI-WALK15 Electric Pallet Truck

A three-point support structure and a lateral support system increase stability and safety. The E-LI-WALK15 electric pallet truck is also equipped with a tiller head reduced to the essential controls. Thanks to this simplicity, the operator can fully concentrate on lifting, lowering, and driving. The speed is controlled by the tilt angle of the tiller. When the tiller is in a vertical or horizontal position, the E-LI-WALK15 cannot be moved. When the tiller is almost upright, the unit automatically switches to creep speed. This function is particularly practical when multiple industrial trucks are operating in the same warehouse and visibility in the aisles is limited.

Features & technical data

Ausstattungsmerkmale
  • Very low net weight
  • Load capacity: 1,200 kg
  • Max. lifting height: 200 mm
  • Load center distance: 600 mm
  • Load distance: 950 mm
  • High-quality polyurethane rollers
  • Multifunctional tiller head
  • Low-maintenance Li-ion battery
  • Tandem rollers
  • Battery and charge level indicator
  • Hour meter
  • Can be charged from any standard power outlet
Technical data
Model E-LI-WALK15
Features DC-drive
Load capacity (kg) 1,500
Drive Elektro
Lifting range (mm) 85 - 200
Load centre distance (mm) 600
Overall length (mm) 1,669
Overall width (mm) 568
Fork length (mm) 1,150
Fork outer distance (mm) 560
Turning radius (mm) 1,400
Gradeability (with / without load, %)) 6/15
Driving speed (min/max, km/h) 4,5/4,9
Drive motor (DC, kW) 0,65
Lift motor (DC, kW) 0,8
Battery (V/Ah) 12/8
Controller CURTIS DC
Truck weight (kg) 190
