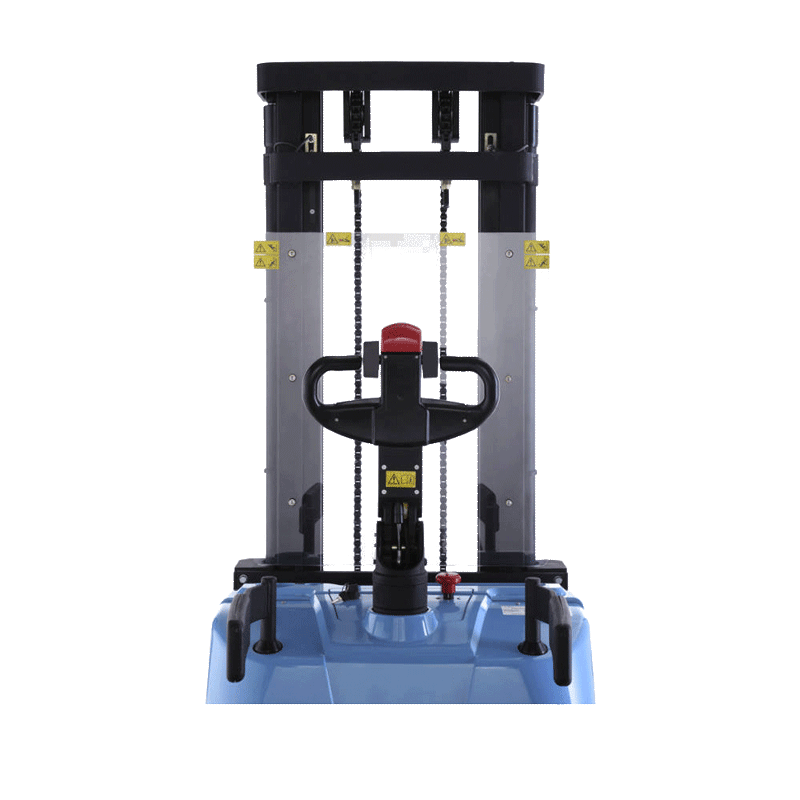

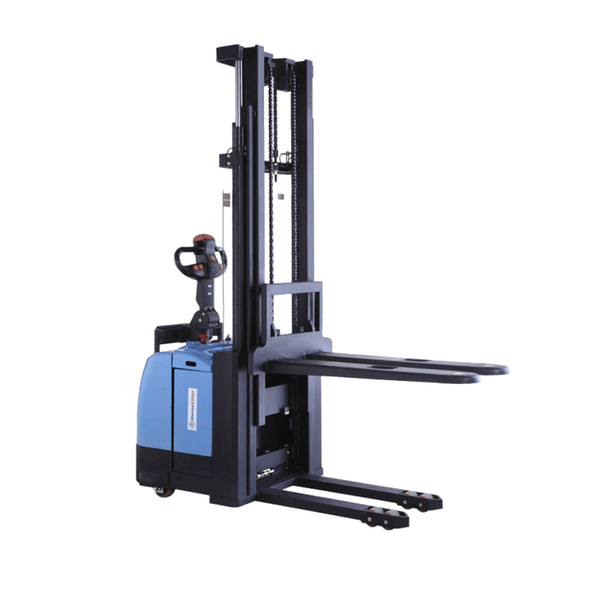

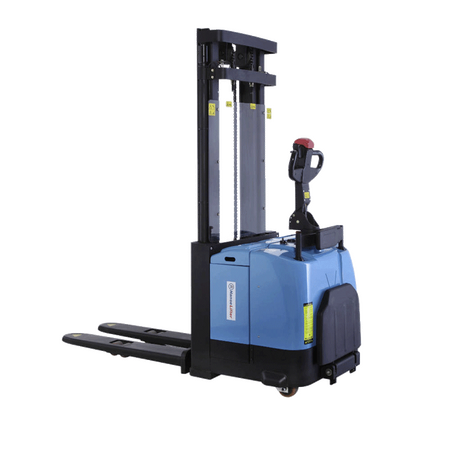

E-DHD-S16 electric pallet stacker

Easy and electric steering

Load capacity: 1600 kg
Max. lifting height: 4000 mm
Ride on platform
Duplex mast
Battery level display and operating hours counter

Product description

E-DHD-S16 electric pallet stacker with ride on platform

The E-DHD-S16PL electric pallet stacker impresses with precise steering and a range of extras. These meet nearly all requirements in warehouses and operations. Without effort, the E-DHD-S16PL electric pallet stacker lets you achieve the ideal conditions for outstanding and comfortable operation. With its simple, foldable driver's platform, the E-DHD-S16PL electric pallet stacker is suitable for pedestrian as well as ride on operation.

Easy battery change

With the battery change system on both sides, the batteries of the E-DHD-S16PL electric pallet stacker can be removed quickly and easily. As a result, the E-DHD-S16PL electric pallet stackers can also be used in multi-shift operation and the battery can simply be replaced as required.

Low-maintenance and powerful

The maintenance-free and powerful three-phase drive motors provide optimal performance and goods handling. High-quality components as well as a Curtis controller for ride on operation are also part of the standard equipment.

Features and technical data

Features

Load capacity: 1600 kg
Lifting heights up to 4000 mm
Ride on platform
Duplex mast
Fork outer distance: 550 mm
Clearance height depending on model: up to max. 2500 mm
Raised mast depending on model: up to max. 4410 mm
Easy, electric steering of the electric pallet stacker
Two lowering speeds for precise lowering
Automatic rollback protection for ramps and gradients
Automatic speed reduction from 300 mm lifting height
Automatic switch to stand-by when not in use
Side battery changing system on both sides
Ergonomic hand unit, suitable for both left- and right-handed users
Battery level display with operating hours counter
OPTIONAL: Load control system for direct weighing of pallets and goods

Technical data

Model	E-DHD-S1630PL	E-DHD-S1633PL	E-DHD-S1636PL	E-DHD-S1642PL
Load capacity (kg)	1.600	1.600	1.600	1.600
Lifting height (mm)	2.915	3.215	3.515	3.465
Max. fork height	3.000	3.300	3.600	4.200
Minimum fork height (mm)	85	85	85	88
Free lift (mm)	-	-	-	-
Mast height lowered (mm)	1.980	2.135	2.335	2.020
Mast height raised (mm)	3.510	3.810	4.110	3.465
Mast	Duplex	Duplex	Duplex	Duplex
Load distance (mm)	620	620	620	620
Overall length (mm)	2.050	2.050	2.050	2.050
Overall width (mm)	850	850	850	850
Fork arm dimensions (LxWxH, mm)	1.150/185/50	1.150/185/50	1.150/185/50	1.150/190/60
Fork outer distance (mm)	550	550	550	570
Drive motor (kW)	1,5	1,5	1,5	1,5
Lift motor (kW)	3,0	3,0	3,0	3,0
Battery voltage (V/Ah)	24 / 280	24 / 280	24 / 280	24 / 280
Charger V/A)	24 / 40 (external)	24 / 40 (external)	24 / 40 (external)	24 / 40 (external)
Overall weight (kg)	1.292	1.303	1.318	1.350
Article number	GE0068424	GE0074641	GE0074642	GE0074256
