E-DH15MG-E electric pallet stacker
Compact pedestrian device with duplex mast
- Load capacity: 1500 kg
- Max. lifting height: 3300 mm
- Duplex mast
- For right and left-handed users
- Operating hours counter and charge level display
Product description

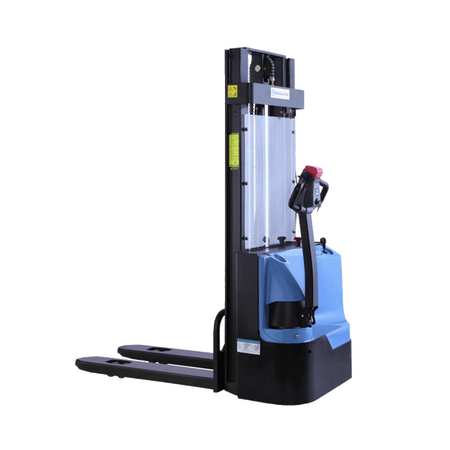

E-DH15MG-E electric pallet stacker with duplex mast
The E-DH15MG-E electric pallet stacker by HanseLifter is mainly used for loading, moving and order picking. However, its driving characteristics also impress when loading and unloading lorries and containers. The E-DH15-MG-E electric pallet stacker is equipped with a practical duplex mast, allowing it to be used in halls and warehouses with low ceilings. Its long tiller makes it easy and safe to control. The rear of the E-DH15-MG-E electric pallet stacker is extra short and provides additional support for the excellent handling.
Increased goods handling
The E-DH15-MG-E electric pallet stacker can significantly increase efficiency in the warehouse. With a load capacity of 1500 kg, it moves and stacks almost every standard pallet in the warehouse.
Ergonomic and efficient with HanseLifter
The long experience in materials handling technology and close customer contact have resulted in a user-friendly electric pallet stacker with impressive, high-quality features. The HanseLifter E-DH15MG-E electric pallet stacker has a tiller head which has been reduced to the essentials. With its help, the electric pallet stacker can be controlled intuitively and easily without training. There are no superfluous buttons which only cause confusion when working. This allows you to concentrate fully on driving, steering, lifting or lowering. When stopping on ascending and descending gradients or ramps, an automatic brake engages and prevents the unintentional rolling away of the electric pallet stacker. From a lifting height of 500 mm, the speed of the E-DH15MG-E is automatically reduced. In addition, a low-maintenance gel battery ensures that the electric pallet stackers can provide impressive performance in the warehouse for longer and actively support you in your work. When not in use, the truck automatically switches to standby mode and saves battery power. With its agility and good handling, the E-DH15-MG-E electric pallet stacker provides optimal support for your warehouse.
Special construction for special requirements
Our Special Construction Department for custom-built trucks can create a solution for even the biggest problems. Simply use our practical callback service or call one of our helpful advisors. We look forward to your challenge!
Is this not the right materials handling device for you?
Do you just want to move your pallets without stacking them? Then we recommend our high-quality E-BF electric pallet truck and our BF pallet truck by HanseLifter.
Features and technical data
- Load capacity: 1500 kg
- Max. lifting height: 3300 mm
- Fork outer distance: 570 mm
- Clearance height: 2200 mm
- Mast height raised: 3300 mm
- Duplex mast
- Suitable for both left- and right-handed users
- Ergonomic hand unit by German REMA
- Operating hours counter and charge level display as standard
- High-quality polyurethane rollers for smooth and safe running
| Model | E-DH1525MG-E | E-DH1527MG-E | E-DH1530MG-E | E-DH1533MG-E |
|---|---|---|---|---|
| Load capacity (kg) | 1.500 | 1.500 | 1.500 | 1.500 |
| Lifting height (mm) | 2.500 | 2.700 | 3.000 | 3.300 |
| Minimum fork height (mm) | 90 | 90 | 90 | 90 |
| Lift (mm) | 2.415 | 2.615 | 2.915 | 3.215 |
| Free lift (mm) | - | - | - | - |
| Mast height raised (mm) | 2.943 | 3.143 | 3.443 | 3.743 |
| Mast height lowered (mm) | 1.728 | 1.828 | 1.978 | 2.128 |
| Clearance height (mm) | 1.728 | 1.828 | 1.978 | 2.128 |
| Overall length (mm) | 1.740 | 1.740 | 1.740 | 1.740 |
| Overall width (mm) | 800 | 800 | 800 | 800 |
| Fork dimensions (LxWxH, mm) | 1.150/170/60 | 1.150/170/60 | 1.150/170/60 | 1.150/170/60 |
| Fork outer distance (mm) | 570 | 570 | 570 | 570 |
| Turning radius (mm) | 1.500 | 1.500 | 1.500 | 1.500 |
| Working aisle width (pallet lengthways) (mm) | 2.260 | 2.260 | 2.260 | 2.260 |
| Gradeability (with/without load, %) | 8 / 16 | 8 / 16 | 8 / 16 | 8 / 16 |
| Driving speed (min/max, km/h) | 5,0 / 5,5 | 5,0 / 5,5 | 5,0 / 5,5 | 5,0 / 5,5 |
| Drive motor, power S2 60 min. (kW) (kW) | 1,27 | 1,27 | 1,27 | 1,27 |
| Lift motor, power at S3 15% (kW) | 3 | 3 | 3 | 3 |
| Battery voltage (V/ah) | 24 / 125 | 24 / 125 | 24 / 125 | 24 / 125 |
| Overall weight (kg) | 715 | 735 | 755 | 760 |
| Article number | GE0073525 | GE0073526 | GE0065084 | GE0065085 |
