E-DH1242-TMG electric pallet stacker
Ideal for large lifting heights thanks to the triplex mast
- Load capacity: 1200 kg
- Max. lifting height: 4200 mm
- Triplex mast
- Free lift: 1370 mm
- Ergonomic hand unit
Product description

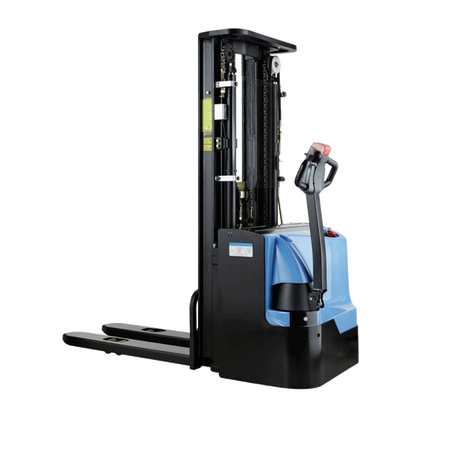

E-DH1242-TMG electric pallet stacker with triplex mast
The E-DH1242-TMG electric pallet stacker with triplex mast is the ideal device if particularly high heights have to be reached. At the same time, the overall height is very low at 1940 mm and the electric pallet stacker can pass through door frames. Equipped with a triplex mast, it reaches a maximum lifting height of to 4200 mm. With a load capacity of 1200 kg, pallets can be easily stacked and unstacked.

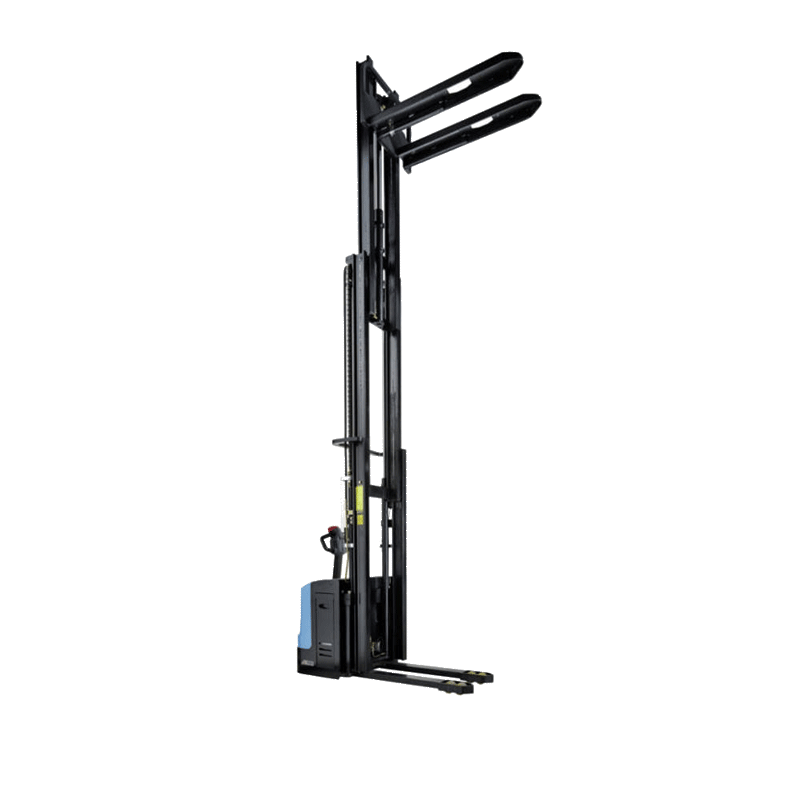

Triplex mast
The triplex mast consists of 3 sections and 3 cylinders. The lifting cylinders are arranged behind the sections and the free lift cylinder in the centre. The advantage is a lower overall height, combined with a maximum lifting height
Free lift
The E-DH1242-TMG electric pallet stacker has a free lift of 1370 mm, making it suitable for containers.
Equipment
The E-DH1242-TMG electric pallet stacker automatically reduces speed from a lifting height of 500 mm. The electric pallet stacker automatically switches to stand-by-mode when it is not in use.
Features and technical data
- Feature: Triplex mast
- Load capacity: 1200 kg
- Mast height retracted: 1940 mm
- Lifting range: 90 - 4200 mm
- Fork outer distance: 550 mm
- Mast raised: 4730 mm
- Free lift: 1370 mm
- Agile and easy to manoeuvre
- Battery level display with operating hours counter
- Ergonomic hand unit, suitable for both left- and right-handed users
- High-quality polyurethane rollers for smooth and safe running
- • OPTIONAL: Load control system for direct weighing of pallets and goods
| Model | E-DH1242-TMG |
|---|---|
| Load capacity (kg) | 1.200 |
| Lifting height (mm) | 4.200 |
| Minimum fork height (mm) | 90 |
| Lift (mm) | 4.110 |
| Free lift (mm) | 1.370 |
| Mast height raised (mm) | 4.730 |
| Mast height lowered (mm) |
1.940 |
| Load distance (mm) | 700 |
| Overall length (mm) | 1.826 |
| Overall width (mm) | 800 |
| Fork dimensions (LxWxH, mm) | 1.150/170/60 |
| Fork outer distance (mm) | 550 |
| Turning radius (mm) | 1.463 |
| Working width (pallet crossways, mm) | 2.370 |
| Working width (pallet lengthways, mm) | 2.303 |
| Gradeability (with/without load, %) | 8 / 16 |
| Driving speed (min/max, km/h) | 5,5 / 6,0 |
| Drive motor (kW) | 1,1 |
| Lift motor (kW) | 2,2 |
| Battery voltage (V/ah) | 24 / 210 |
| Overall weight (kg) | 1.082 |
| Article number | GE0074316 |
