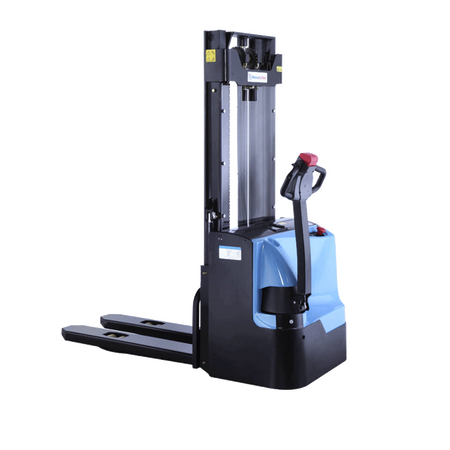

E-DH12-MG-I electric pallet stacker

E-DH12-MG-I electric pallet stacker with initial lift

The HanseLifter E-DH12-MG-I electric pallet stacker has a strong AC drive and a compact construction. With its high-performance data, the E-DH12MG-I electric pallet stacker provides optimal support in the warehouse. The side-mounted tiller ensures good visibility and facilitates easy and precise steering. With its initial lift of 125 mm, the wheel are raised further. A proportional valve is installed, so pallets can be lowered gently.

Ideal for unloading, moving or order picking

The HanseLifter E-DH12MG-I electric pallet stacker is mainly intended for moving, unloading and order picking, but its driving characteristics also impress when loading and unloading lorries and containers. The E-DH12MG-I electric pallet stacker is equipped with a practical duplex mast, allowing it to be used in halls and warehouses with low ceilings. The extra long tiller provides easy and safe control. The good handling of the E-DH12-MG-I electric pallet stacker is also supported by its particularly short rear.

Increased goods handling

The E-DH12MG-I electric pallet stacker can significantly increase goods handling in the warehouse. It has a load capacity of 1200 kg and a selectable lifting height of between 1600 mm, 2700 mm and 3000 mm. As a result, it can stack nearly any standard pallet in the warehouse. The clearance height varies between 1302 mm and 1967 mm, depending on the model.

Initial lift

Electric pallet stackers with initial lift are suitable for transporting loads over uneven areas or ramps, as only the wheel arms are raised by the initial lift. This facilitates double pallet pick-up and increased ground clearance.

Duplex mast

The duplex mast has 2 mast sections, but 3 lifting cylinders. 2 lifting cylinders are arranged behind the sections and there is an additional central free lift cylinder midway. The latter slightly restricts the view. The free lift means that the fork carrier can be extended by 100 mm without changing the overall height or extending the mast.

Ergonomic and efficient with HanseLifter

The HanseLifter brand already has a 15 year track record on the market. The long experience in materials handling technology and close customer contact have resulted in HanseLifter electric pallet stackers, which are user-friendly materials handling devices with impressive, high-quality features. The tiller head of the HanseLifter E-DH12-MG-I electric pallet stacker has been reduced to the essentials, making the electric pallet stacker intuitive to control without any training. When stopping on ascending and descending gradients or ramps, an automatic brake engages and prevents the unintentional rolling away of the electric pallet stacker. From a lifting height of 500 mm, the speed is automatically reduced. When not in use, the E-DH12-MG-I automatically switches to standby mode and saves battery power.

Special construction for special requirements

Our Special Construction Department for custom-built trucks will be happy to convert your E-DH12-MG-I electric pallet stacker according to your requirements. Just call our friendly advisors or use our practical callback service. We look forward to your challenge!

Is this not the right materials handling device for you?

Do you just want to move your pallets without stacking them? Then we recommend our high-quality E-BF electric pallet truck and our BF pallet truck by HanseLifter.
