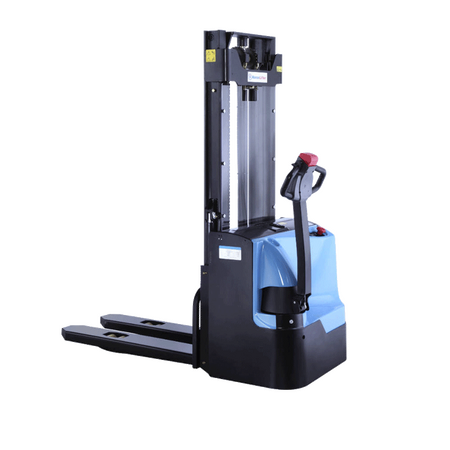

E-DH12-MG-FH electric pallet stacker
For low ceiling heights
- Load capacity: 1200 kg
- Max. lifting height: 3300 mm
- Rollback protection/li>
- Free lift
- Side-mounted tiller
Product description
E-DH12MG-FH electric pallet stacker with free lift
High-performance data, free lift and choice of lifting heights from 2700 mm to max. 3000 mm characterise the E-DH12MG-FH electric pallet stacker. High-quality mast sections and precision mast rollers guarantee the quality and safety of the electric pallet stacker. The E-DH12MG-FH is equipped with low-maintenance and high-performance three-phase motors. Free lift facilitates use in halls and warehouses with low ceiling heights. When not in use, the E-DH12MG-FH electric pallet stacker automatically switches to stand-by-mode.
Safety when moving and stacking pallets
The E-DH12MG-FH electric pallet stacker is equipped with many functions which are fully automatic and make operation even easier and safer. For example, the driving speed is reduced automatically when a lifting height of 500 mm is exceeded, or the automatic brake of the electric pallet stacker engages when it stops on ramps, ascending or descending gradients.
Precise steering and easy handling
Storing pallets is not a problem with the E-DH12MG-FH electric pallet stacker, thanks to its precise steering and easy handling.
Features and technical data
- Feature: With free lift
- Load capacity: 1200 kg
- Different lifting heights up to 3300 mm (model-dependent)
- Clearance height depending on model: up to max. 2120 mm
- Raised mast depending on model: up to max. 3829 mm
- Fork outer distance: 550 mm
- Side-mounted tiller
- Practical side battery changing system
- Rollback protection
- Precision mast rollers
- Agile and easy to manoeuvre
- Sensitive speed control
- Automatic speed reduction from 500 mm lift
- Automatic switch to stand-by when not in use
| Model | E-DH1227-MG-FH | E-DH1230-MG-FH | E-DH1233-MG-FH |
|---|---|---|---|
| Load capacity (kg) | 1.200 | 1.200 | 1.200 |
| Free lift (mm) | 1.320 | 1.470 | 1.620 |
| Minimum fork height (mm) | 90 | 90 | 90 |
| Load distance (mm) | 700 | 700 | 700 |
| Overall length (mm) | 1.826 | 1.826 | 1.826 |
| Overall width (mm) | 800 | 800 | 800 |
| Fork dimensions (LxWxH, mm) | 1.150/190/60 | 1.150/190/60 | 1.150/190/60 |
| Fork outer distance (mm) | 550 | 550 | 550 |
| Turning radius (mm) | 1.425 | 1.425 | 1.425 |
| Working width (crossways (mm) | 2.265 | 2.265 | 2.265 |
| Gradeability (with/without load, %) | 8 / 16 | 8 / 16 | 8 / 16 |
| Driving speed (min/max, km/h) | 5,5 | 5,5 | 5,5 |
| Drive motor (kW) | 1,1 | 1,1 | 1,1 |
| Lift motor (kW) | 2,2 | 2,2 | 2,2 |
| Battery capacity (V/ah) | 24 / 210 | 24 / 210 | 24 / 210 |
| Overall weight depending on model (kg) | 950 | 960 | 985 |
| Article number | GE0074416 | GE0074417 | GE0074418 |
