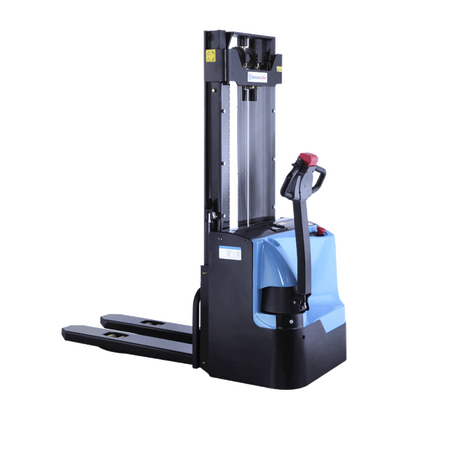

E-DH12-MG electric pallet stacker
Range of mast models
- Load capacity: 1200 kg
- Max. lifting height: 4200 mm
- Low-maintenance AC drive
- Pedestrian device
- Agile and easy to manoeuvre
Product description
E-DH12-MG electric pallet stacker - the standard model
Excellent performance data and lifting heights up to 4200 mm distinguish the E-DH12-MG electric pallet stacker. With a load capacity of 1200 kg, it carries almost all common pallets. High-quality mast sections and precision mast rollers guarantee the quality and safety of the electric pallet stacker.
Low-maintenance three-phase motor
The E-DH12-MG is equipped with a low-maintenance, powerful three-phase motor, which ensures optimal operation and outstanding performance. A maximum driving speed of 5.5 km/h can be reached without a load. With a load, the E-DH12-MG can reach a speed of 5.0 km/h.
Different mast versions
Choose between a total of 9 different mast variants. Our smallest mast model for the E-DH12-MG has a maximum fork height of 2500 mm, the largest 4200 mm. Please refer to the Technical data for further information.
Practical functions
The E-DH12-MG electric pallet stacker is equipped with practical functions which are fully automatic and make operation even easier and safer. From a lifting height of 500 mm, the driving speed of the E-DH12-MG is automatically reduced. This ensures better control of the device and provides additional safety. The automatic brake of the E-DH12-MG electric pallet stacker engages when it stops on ramps, ascending or descending gradients.
Features and technical data
- 1200 kg load capacity
- Different lifting heights (model-dependent)
- Fork outer distance: 550 mm
- Clearance height depending on model: up to max. 2550 mm
- Raised mast depending on model: up to max. 4689 mm
- Lifting heights depending on model: up to max. 4200 mm
- Extra long tiller mounted on side for safe operation
- Agile and easy to manoeuvre
- Low-maintenance AC drive
- Practical side battery changing system
- Sensitive speed control
- Automatic speed reduction from 500 mm lift
- Automatic switch to stand-by when not in use
| Model | E-DH12MG |
|---|---|
| Load capacity (kg) | 1.200 |
| Lifting height (mm) | von 2.500 bis 4.200 |
| Minimum fork height (mm) | 90 |
| Load distance (mm) | 700 |
| Overall length (mm) | 1.825 |
| Overall width (mm) | 800 |
| Fork dimensions (LxWxH, mm) | 1.150/170/60 |
| Fork outer distance (mm) | 550 |
| Turning radius (mm) | 1.460 |
| Working width (crossways, mm) | 2.730 |
| Gradeability (with/without load, %) | 8 / 16 |
| Driving speed (min/max, km/h) | 5,0 / 5,5 |
| Drive motor (kW) | 1,1 |
| Lift motor (kW) | 2,2 |
| Battery capacity (V/ah) | 24 / 210 |
| Overall weight (kg) | ab 905 |
| Article number | GE0074257 |
