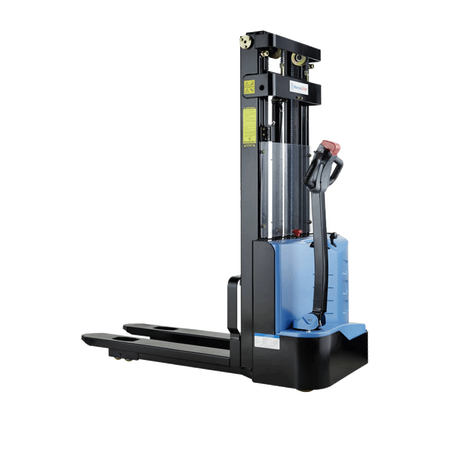

E-DH10-MG-E electric pallet stacker

E-DH10-MG-E electric pallet stacker with duplex mast

The HanseLifter E-DH10-MG-E electric pallet stacker is mostly intended for moving, unloading and order picking. However, its driving characteristics also impress when loading and unloading lorries and containers. The E-DH10-MG-E electric pallet stacker is equipped with a practical duplex mast, allowing it to be used in halls and warehouses with low ceilings. Its extra long tiller makes it easy and safe to control. Good handling is also supported by the particularly short rear of the E-DH10-MG-E electric pallet stacker.

Increased goods handling

The E-DH10-MG-E electric pallet stacker can significantly increase goods handling and efficiency in the warehouse, similar to forklift trucks. It stacks nearly all standard pallets in the warehouse, with a weight up to 1000 kg. You can choose between a maximum lifting height of 2700, 3000 and 3300 mm. The clearance height varies between 1900 mm and 2200 mm and, like the lifting height, differs depending on the model.

Duplex mast

The duplex mast has 2 mast sections, but 3 lifting cylinders. 2 lifting cylinders are arranged behind the sections and there is an additional central free lift cylinder midway. The latter slightly restricts visibility. The free lift means that the fork carrier can be extended by 100 mm without changing the overall height or extending the mast.

Ergonomic and efficient with HanseLifter

The HanseLifter brand already has a 15 year track record on the market. The long experience in materials handling technology and close customer contact have resulted in user-friendly electric pallet stackers with high-quality features. The tiller head of the HanseLifter E-DH10-MG-E electric pallet stacker has been reduced to the essentials. With its help, the electric pallet stacker can be controlled intuitively and easily without training. There are no superfluous buttons which only cause confusion when working. This allows you to concentrate fully on lifting, lowering, driving and steering. When stopping on ascending and descending gradients or ramps, an automatic brake engages and prevents the unintentional rolling away of the electric pallet stacker. From a lifting height of 500 mm, the speed is automatically reduced. The low-maintenance gel battery ensures that the electric pallet stackers can provide impressive performance in the warehouse for longer and actively support you in your work. When not in use, the truck automatically switches to standby mode and saves battery power. Its agility and good handling provides additional support to the user.

Special construction for special requirements

Our Special Construction Department for custom-built trucks can create a solution for even the biggest problems. Avail of our practical callback service or call our helpful employees. We look forward to your challenge!
