E-BF75 electric pallet truck

The model with low minimum fork height

  • Load capacity: 1500 kg
  • Multifunctional tiller head
  • Integrated charger with automatic shutdown
  • Can be charged at any socke
  • Truck weight: 205 kg

Product description

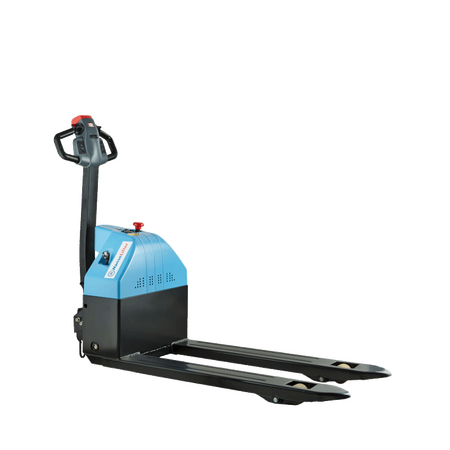

E-BF75 electric pallet truck - with low minimum fork height

The E-BF75 electric pallet truck by HanseLifter has a low minimum fork height of just 75 mm. Thanks to this low entry height, flat pallets as well as special pallets up to a weight of 1500 kg can be picked up very easily. Its compact and easy-maintenance design means that the electric pallet truck is extremely economical and efficient in warehouses. Lifting, lowering and driving is controlled electrically with the E-BF75 electric pallet truck, saving effort for the user. The modular and ergonomic design also promotes comfortable and safe working in the warehouse.

A HanseLifter electric pallet truck not just for warehouses

The electric pallet truck has a very low truck weight for an electric pallet truck. This recommends it, for example, for being carried on lorries or in containers, where the load weight is often important. With its design, the E-BF75 electric pallet truck is also an ideal industrial truck for use in the tightest of spaces.

Tiller head and charger

The multifunctional tiller head is not only ergonomic, but also suitable for right as well as left-handers. The control of the device is almost intuitive. The inclination of the tiller influences the speed. If the tiller is vertical or horizontal, the pallet truck cannot be moved. If the tiller is nearly vertical, it automatically switches to creep gear. In a busy warehouse, this is an advantage and guarantees more safety. The high-quality batteries not only ensure a long runtime, they are also particularly low-maintenance. The integrated charger quickly charges the batteries at any standard socket.

High-quality rollers and equipment of the E-BF75 electric pallet truck

The electric pallet truck is equipped with high-quality polyurethane rollers. These rollers are quiet, abrasion-resistant and facilitate good handling, thanks to their good grip.

Zu den hochwertigen Standards für Flurförderfahrzeuge von HanseLifter zählt außerdem die ausgeklügelte Curtis Fahrsteuerung. Mit ihr wird der Elektrohubwagen instinktiv durch das Lager gesteuert. Das Heben, Senken und Fahren verläuft fast automatisch. Der praktische Betriebsstundenzähler zeigt exakt die Stunden an, in denen das Flurförderfahrzeug eingeschaltet war. Die präzise Batterie- und Ladestandsanzeige zeigt an, wann der Elektrohubwagen wieder geladen werden sollte.

We offer more than just standard materials handling device

Along with forklifts and hand pallet trucks, electric pallet trucks are among the most frequently-used industrial trucks in the warehouse. But the standard dimensions are not always sufficient. We also offer electric pallet trucks with different dimensions and fork lengths. Our Special Construction Department builds HanseLifter electric pallet trucks to meet your requirements. Use our free callback service and one of our knowledgeable colleagues will contact you shortly.

Is the E-BF75 electric pallet truck not the right device for you? Perhaps a HanseLifter forklift, pallet stacker or pallet truck would be an alternative.

Features and technical data

Features
  • Feature: Low minimum fork height of 75 mm
  • Load capacity: 1500 kg
  • Max. lifting height: 190 mm
  • Load centre distance: 600 mm
  • Load distance: 946 mm
  • Low-maintenance battery
  • Battery and charge level display
  • Operating hours counter
  • Integrated charger with automatic shutdown
  • Multifunctional tiller head
  • Can be charged at any socket
  • High-quality polyurethane rollers
  • With single rollers
Technical data
Model E-BF75 electric pallet truck
Features Low minimum fork height
Load capacity (kg) 1.500
Drive Elektro
Lifting range (mm) 75 - 190
Load distance (mm) 600
Overall length (mm) 1.700
Overall width (mm) 565
Fork length (mm) 1.150
Fork outer distance (mm) 560
Turning radius (mm) 1.475
Working aisle width (mm) 1.929
Gradeability (with/without load, %) 3/10
Driving speed (with/without load, km/h) 3,5/4
Drive motor (DC, kW) 0,65
Lift motor (DC, kW) 0,8
Charger (integrated) 12/8
Battery (V/Ah) 24/65
Truck weight (kg) 205
Article number GE0031027
