E-BF-WALK electric pallet truck

Electric lifting and movement of pallets

  • Load capacity: 1500 kg
  • Multifunctional tiller head
  • Integrated charger with automatic shutdown
  • Can be charged at any socket
  • Truck weight: 220 kg

Product description

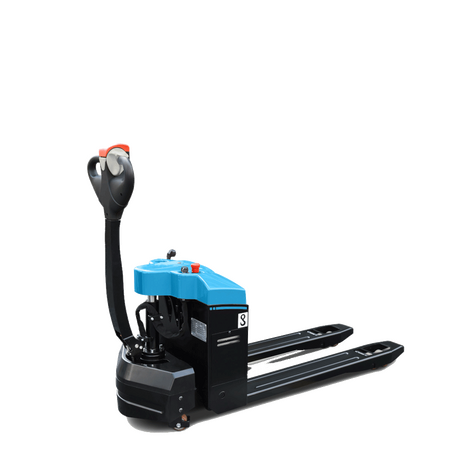

E-BF-WALK electric pallet truck with DC drive

The HanseLifter E-BF-WALK electric pallet truck is one of our newest devices and comparable to our E-BF electric pallet truck. Lifting, lowering and driving the pallet truck is electrically controlled and makes work easier for the user. In addition, the E-BF-WALK electric pallet truck also offers an ergonomic and modular design that ensures pleasant and safe working.

Perfect for lorries and tight spaces

Thanks to its compact and light design, the HanseLifter E-BF-WALK electric pallet truck has a low truck weight and offers particularly good handling. Due to these characteristics, the E-BF-WALK electric pallet truck is a device that is frequently used on lorries for loading purposes. With its compact design, the E-BF-WALK electric pallet truck can also be used in the tightest of spaces. The low-maintenance battery and the high-quality integrated charger ensure that the truck can be used for long work assignments and recharged quickly. It can be charged at any socket.

Many quality standards

One of the quality standards of the E-BF-WALK electric pallet truck is the sophisticated Curtis drive control. It facilitates precise control. The truck can be controlled instinctively using the user-friendly tiller head. An integrated operating hours counter shows how many working hours are possible with the E-BF-WALK electric pallet truck until the next charge is needed. A battery and charge level display also indicate how long the truck still needs to be charged. The polyurethane wheels are extremely quiet, abrasion-resistant and have good grip. With its tyres, the E-BF-WALK electric pallet truck rolls easily over surface irregularities and offers excellent handling. Polyurethane tandem rollers are also a good compromise between smooth running and resistance.

Easy operation of the E-BF-WALK electric pallet truck

The E-BF-WALK electric pallet truck has a tiller head which has been reduced to the essentials. Thanks to this simplicity, the driver can concentrate on lifting, lowering and driving. The inclination of the tiller influences the speed. If the tiller is in a vertical or horizontal position, the E-BF-WALK electric pallet truck cannot be moved. If the tiller is nearly vertical, the truck automatically switches to creep gear. This function is particularly useful when several industrial trucks are working in the same warehouse and the view of the aisles is obstructed.

Features & technical data

Features
  • Load capacity: 1500 kg
  • Max. lifting height: 200 mm
  • Load centre distance: 600 mm
  • Load distance: 946 mm
  • Multifunctional tiller head
  • Tandem rollers
  • Integrated charger with shutdown
  • Can be charged at any socket
  • DC controller by Curtis
  • Driving speed up to 4.9 km/h
Technical data
Model E-BF-WALK electric pallet truck
Features DC-Antrieb
Load capacity (kg) 1.500
Drive Elektro
Lifting range (mm) 85 - 200
Load centre distance (mm) 600
Overall length (mm) 1.669
Overall width (mm) 568
Fork length (mm) 1.150
Fork outer distance (mm) 560
Turning radius (mm) 1.400
Working aisle width (mm) 2.100 - 2.208
Gradeability (with/without load, %) 6/15
Driving speed (min/max, km/h) 4,5/4,9
Drive motor (DC, kW) 0,65
Lift motor (DC, kW) 0,8
Charger (integrated) 12/8
Battery (V/Ah) 2x12/70
Controller CURTIS DC
Truck weight (kg) 220
Article number GE0075515
