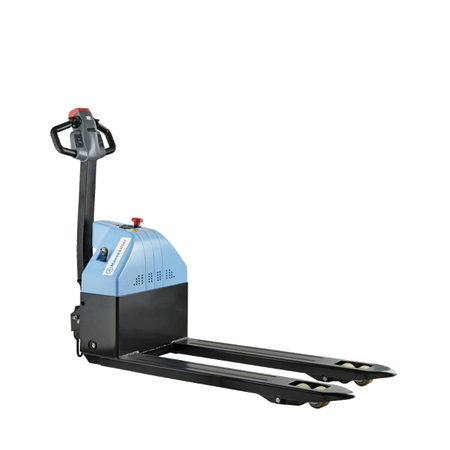

E-BF electric pallet truck

Truck weight only 205 kg

  • Load capacity: 1500 kg
  • Small turning circle
  • Integrated charger with automatic shutdown
  • Can be charged at any socket
  • Multifunctional tiller head
  • Truck weight: 205 kg

Product description

HanseLifter E-BF electric pallet truck - the standard model

The HanseLifter E-BF electric pallet truck is efficient and very easy to maintain. Pallet trucks which are operated with an electric motor greatly facilitate the movement of pallets in the warehouse. Lifting, lowering and driving the pallet truck is electrically controlled and makes work easier for the user. In addition, the E-BF electric pallet truck also offers an ergonomic and modular design that ensures pleasant and safe working.

For lorries and tight spaces

Thanks to its compact and light design, the HanseLifter E-BF electric pallet truck has a low truck weight and offers particularly good handling. Due to these characteristics, the E-BF electric pallet truck is a device that is frequently used on lorries for loading purposes. With its compact design, the E-BF electric pallet truck can also be used in the tightest of spaces. The low-maintenance battery and the high-quality integrated charger ensure that the truck can be used for long work assignments and recharged quickly. It can be charged at any socket.

An industrial truck with many quality standards

An additional quality standard of the E-BF electric pallet truck is the sophisticated Curtis drive control. It facilitates precise control. The truck can be controlled instinctively using the multifunctional tiller head. An integrated operating hours counter shows precisely how many working hours are still possible with the E-BF electric pallet truck until the next charge is needed. A battery and charge level display also indicate how long the truck still needs to be charged. The polyurethane wheels are very quiet, abrasion-resistant and have good grip. They allow the E-BF electric pallet truck to easily roll over surface irregularities and offer good handling. The polyurethane tandem rollers are a good compromise between smooth running and resistance.

Easy operation of the E-BF electric pallet truck

The E-BF electric pallet truck has a tiller head which has been reduced to the essentials. Thanks to this simplicity, the driver can concentrate on lifting, lowering and driving. The inclination of the tiller influences the speed. If the tiller is in a vertical or horizontal position, the E BF electric pallet truck cannot be moved. If the tiller is nearly vertical, the truck automatically switches to creep gear. This function is particularly useful when several industrial trucks are working in the same warehouse and the view of the aisles is obstructed.

Electric pallet trucks are the most frequently used industrial trucks in warehouses and the standard fork lengths are not always sufficient. We also offer the E-BF electric pallet truck with different fork lengths. Alternatively, the industrial truck is also available with fork lengths of 800 mm, 1000 mm und 1220 mm. Simply use our callback service and one of our knowledgeable colleagues will contact you free of charge. The E-BF electric pallet truck can also be ordered with a lower minimum fork height. With 75 mm, the fork height of the E-BF75 electric pallet truck is 10 mm less than that of the E-BF.

Features & technical data

Features
  • Load capacity: 1500 kg
  • Max. lifting height: 200 mm
  • Load centre distance: 600 mm
  • Load distance: 946 mm
  • High-quality polyurethane rollers
  • Multifunctional tiller head
  • Low-maintenance battery
  • Tandem rollers
  • Battery and charge level display
  • Operating hours counter
  • Integrated charger
  • Can be charged at any socket
Technical data
Model E-BF electric pallet truck
Features DC drive
Load capacity (kg) 1.500
Drive Elektro
Lifting range (mm) 85 - 200
Load centre distance (mm) 600
Overall length (mm) 1.700
Overall width (mm) 565
Fork length (mm) 1.150
Fork outer distance (mm) 560
Turning radius (mm) 1.475
Working aisle width (mm) 1.929
Gradeability (with/without load, %)) 3/10
Driving speed (min/max, km/h) 3,5/4,0
Drive motor (DC, kW) 0,65
Lift motor (DC, kW) 0,8
Charger (integrated) 12/8
Battery (V/Ah) 24/65
Controller CURTIS DC
Truck weight (kg) 205
Article number GE0022960
