Product description

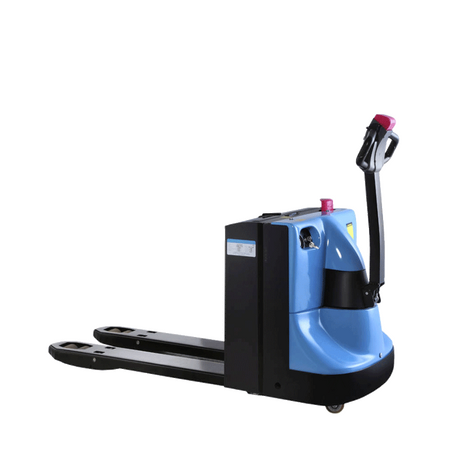

E-20MG-AC electric pallet truck - with AC drive
The E-20MG-AC electric pallet truck by HanseLifter, with its 2000 kg load capacity, lifts nearly every pallet in the warehouse. Lifting, lowering and driving is electrically controlled, eliminating the need for the user to manual pump the tiller. Its powerful and low-wear AC drive motor provides the E-20MG-AC electric pallet truck with the right power to shine in the warehouse. The electric pallet truck is the perfect means to significantly increase handling frequency. Compared to similar models with DC shunt technology, the materials handling device is 15% more efficient.
Application and design of the HanseLifter electric pallet truck
The main area of application of the electric pallet truck is the transport of palletised goods in warehouses. But the E-20MG-AC electric pallet truck also excels when loading and unloading lorries and containers. Unlike the other model in the range, the E-20PL-AC, the E-20MG-AC is purely a pedestrian device, i.e. it does not have a platform. With its extremely compact design, the E-20MG-AC electric pallet truck is also ideally suited for being carried on lorries or containers.
Long tiller and ergonomic tiller head
The electric pallet truck has a long tiller and an ergonomic tiller head. This is reduced to the essentials and is suitable for both right and left-handed operators. Intuitive handling and safe working are made possible by the particularly easy control and a generous steering angle of 210°. The truck also has a creep gear, which increases safety. When the tiller is almost vertical, it is automatically switched on, giving the user even more control over the device and the loaded pallet.
HanseLifter quality standards
The HanseLifter materials handling device has a low-maintenance battery, a battery and charge level display and an operating hours counter. The polyurethane rollers of the E-20MG-AC electric pallet truck are abrasion-resistant and quiet. In addition, their good grip provides support to the electric pallet truck. These PU rollers also glide easily over irregularities in the warehouse floor and are ideally suited for hard or delicate floors. If you are interested in this materials handling device but find its dimensions are unsuitable, we can help. Our Special Construction Department can always offer you alternative dimensions for the E-20MG-AC electric pallet truck. For expert advice or to place an order, simply contact one of our technicians or use our convenient callback service.
Features & technical data
- Load capacity: 2000 kg
- Max. lifting height: 200 mm
- Load center distance: 600 mm
- Load distance: 982 mm
- Powerful AC motor
- Multifunctional tiller head
- Particularly easy control and long tiller
- The automatic brake prevents the electric pallet truck from rolling away on gradients
- Compact and agile, making it suitable for being carried on lorries or for containers
- High-quality polyurethane rollers for smooth and safe running
- Tandem rollers
Model | E-20MG-AC electric pallet truck |
---|---|
Features | Powerful AC drive motor |
Load capacity (kg) | 2.000 |
Drive | Electric |
Lifting range (mm) | 85 - 200 |
Load centre distance (mm) | 600 |
Overall length (mm) | 1.748 |
Overall width (mm) | 710 |
Fork length (mm) | 1.150 |
Fork outer distance (mm) | 540 |
Turning radius (mm) | 1.638 |
Working aisle width (mm) | 2.056 |
Gradeability (with/without load, %)) | 6/8 |
Driving speed (min/max, km/h) | 5,5/6,0 |
Drive motor (AC, kW) | 1,1 |
Lift motor (AC, kW) | 0,8 |
Charger (V/A, external) | 24/30 |
Battery / optional (V/Ah) | 24/210 / 24/225 |
Controller | Zapi AC |
Overall weight (kg) | 535 |
Article number | GE0022954 |
