E-15FH electric pallet stacker
Pedestrian and ride on model
- Load capacity: 1500 kg
- Max. lifting height: 4600 m
- Triplex mast
- Full free lift
- Folding ride on platform
Product description
E-15FH electric pallet stacker with free lift
The E-1534FH electric pallet stacker model has a triplex mast and is particularly suited to high warehouses. With its low clearance height of less than 2000 mm and a width of 800 mm, the model is designed so it can be easily driven through almost any door. As a result, the E-1534FH is also ideally suited to loading and unloading containers and lorries

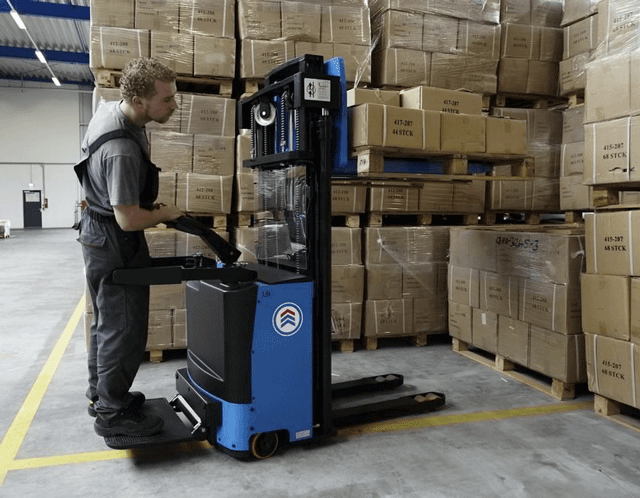

Ride on platform
With the ride on platform as standard, all electric pallet stackers of the E-15FH series can also be used for order picking or the transport of palletised goods over medium and long distances - the E-15FH series electric pallet stackers are truly all-rounders!
REMA tiller and CANBUS SepEx controller
The exclusive REMA tiller and the optimised CANBUS SepEx controller form the basis for the modern CANBUS control of this E-15FH electric pallet stacker. The tiller is equipped with low-wear induction contacts, which allows for the precise and sensitive control of the E-15FH. A selectable creep gear also ensures greater precision when manoeuvring the electric pallet stacker. As pedestrian or ride on electric pallet stackers, the E-15FH electric pallet stackers are ideally suited for daily use.
The E-15FH electric pallet stacker can be charged at any socket (230 V / 50 Hz).
Features and technical data
- Feature: Can be used as a pedestrian or ride on device
- Load capacity: 1500 kg
- Max. lifting height depending on model: up to 4600 mm
- Triplex mast
- Full free lift
- Fork outer distance: 570 or 575 mm (model-dependent)
- Clearance height depending on model: up to max. 2105 mm
- Raised mast depending on model: up to max. 5160 mm
- Agile and easy to manoeuvre
- Very low clearance height for working in containers and lorries
- Ergonomic hand unit, suitable for both left- and right-handed users
- Selectable creep gear for difficult shunting manoeuvres
- Folding ride on platform and side bars as standard
- High-quality polyurethane rollers for smooth and safe running
- Battery level display with operating hours counter
- OPTIONAL: Load control system for direct weighing of pallets and goods
| Model | E-1534-FH | E-1543-FH | E-1546-FH |
|---|---|---|---|
| Load capacity (kg) | 1.500 | 1.500 | 1.500 |
| Lifting height (mm) | 3.400 | 4.300 | 4.600 |
| Minimum fork height (mm) | 85 | 85 | 85 |
| Lift (mm) | 3.315 | 4.265 | 4.515 |
| Free lift (mm) | 1.104 | 1.380 | 1.505 |
| Mast height raised (mm) | 3.920 | 4.865 | 5.160 |
| Mast height lowered (mm) | 1.695 | 1.955 | 2.105 |
| Load distance (mm) | 677 | 765 | 765 |
| Overall length (mm) | 1.960 | 2.065 | 2.065 |
| Overall width (mm) | 805 | 1.075 | 1.075 |
| Fork dimensions (LxWxH, mm) | 1.150/180/60 | 1.150/180/60 | 1.150/180/60 |
| Fork outer distance (mm) | 570 | 570 | 570 |
| Turning radius (mm) | 1.465 | 1.710 | 1.800 |
| Working aisle width (crossways, mm) | 2.147 | 2.354 | 2.354 |
| Gradeability (%) | 6 / 12 | 6 / 12 | 6 / 12 |
| Driving speed (km/h) | 5,1 | 5,0 | 5,0 |
| Drive motor (kW) | 1,5 | 1,8 | 1,8 |
| Lift motor (kW) | 3,0 | 3,0 | 3,0 |
| Battery capacity (V/Ah) | 24 / 240 | 24 / 300 | 24 / 300 |
| Charger V/A | 24 / 30 (internal) | 24 / 40 (external) | 24 / 40 (external) |
| Overall weight (kg) | 1.140 | 1.338 | 1.315 |
| Article number | GE0027473 | GE0029217 | GE0031506 |
