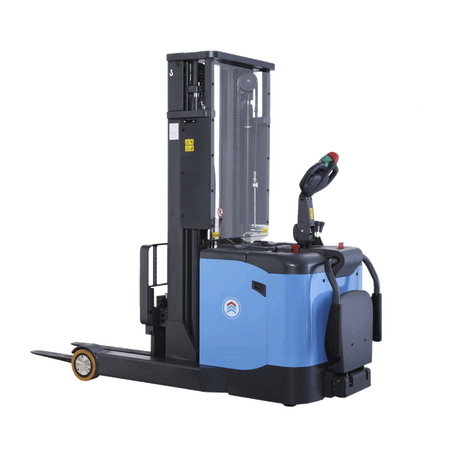

E-13GS & E-15GS electric pallet stackers
Reach mast side arm with 550 mm reach distance
- Load capacity: 1300 or 1500 kg
- Max. lifting height: 4500 mm
- Adjustable fork outer distance
- Agile due to power steering
- Expandable hydraulic circuits
Product description
E-13GS and E-15GS electric pallet stackers with reach mast
The E-13GS and E-15GS electric reach pallet stackers both have a reach distance of 550 mm. As a result, the lift mast can be moved directly to the shelf or the goods. This means that you can use the E-13GS and E-15GS electric reach pallet stackers to remove goods and pallets from shelves or store them there if access below is blocked or locked.
Inclining and tilting the mast
Similar to a forklift truck, the mast of this electric reach pallet stacker from the E-13GS and E-15GS series can be hydraulically inclined and tilted. This gives you even better control over the load. Safety, ease of operation and ergonomics are the top priorities for the E-13GS and E-15GS electric pallet stackers with reach mast.
Ergonomic REMA hand tiller
The E-13GS und E-15GS electric reach pallet stackers are equipped with an ergonomic REMA hand tiller with controls on both sides. Both left- and right-handed users can operate the E-13GS und E-15GS electric pallet stackers.
Features and technical data
- Load capacity: 1300 or 1500 kg
- Carrier standard: DIN FEM02 mounting
- Different lifting heights up to 4500 mm (model-dependent)
- Fork outer distance manually adjustable between 200 mm and 760 mm
- Clearance height depending on model: up to max. 2096 mm
- Raised mast depending on model: up to max. 5385 mm
- Reach mast side arm with 550 or 540 mm reach distance
- Folding ride on platform and side bars as standard
- Agile and easy to manoeuvre thanks to power steering
- Rocker switch for forward and reverse travel
- Battery level display with operating hours counter
- Lifting speed can be determined using proportional lever
- Expandable hydraulic circuits
- Ergonomic hand unit, suitable for both left- and right-handed users
| Model | E-1330GS | E-1345GS | E-1516GS | E-1530GS | E-1545GS |
|---|---|---|---|---|---|
| Load capacity (kg) | 1.300 | 1.300 | 1.500 | 1.500 | 1.500 |
| Lifting height (mm) | 3.000 | 4.500 | 1.600 | 3.000 | 4.500 |
| Minimum fork height (mm) | 85 | 85 | 50 | 50 | 50 |
| Lift (mm) | 2.950 | 4.450 | 2.950 | 2.950 | 4.450 |
| Free lift (mm) | - | 1.500 | 1.600 | - | 1.500 |
| Fork carrier | FEM2A | FEM2A | FEM2A | FEM2A | FEM2A |
| Mast height raised (mm) | 3.885 | 5.385 | 2.485 | 3.885 | 5.385 |
| Mast height lowered (mm) | 2.096 | 2.096 | 2.196 | 2.096 | 2.096 |
| Load distance (mm) | 404 | 404 | 404 | 465 | 465 |
| Overall length (mm) | 2.206 | 2.206 | 2.160 | 2.180 | 2.180 |
| Overall width (mm) | 1.090 | 1.090 | 1.184 | 1.090 | 1.090 |
| Fork dimensions (LxWxH, mm) | 950/100/35 | 950/100/35 | 1.150/100/35 | 920(1.070)/100/35 | 920(1.070)/100/35 |
| Fork outer distance (mm) | 200 - 720 | 200 - 720 | 200 - 760 | 220 - 760 | 220 - 760 |
| Turning radius (mm) | 1.666 | 1.666 | 1.720 | 1.726 | 1.726 |
| Working aisle width (crossways, mm) | 2.710 | 2.710 | 2.710 | 2.730 | 2.730 |
| Gradeability (with/without load, %)) | 5 / 8 | 5 / 8 | 5 / 8 | 5 / 8 | 5 / 8 |
| Driving speed (with/without load, km/h) | 5,0 / 5,5 | 5,0 / 5,5 | 5,5 / 6,0 | 5.0/6.0 | 5.0/6.0 |
| Drive motor (kW) | 1,6 | 1,6 | 2,6 | 1,6 | 1,6 |
| Lift motor (kW) | 2,2 | 3,0 | 3,0 | 3,0 | 3,0 |
| Battery voltage (V/Ah) | 24/270 | 24/400 | 24/270 | 24/270 | 24/400 |
| Overall weight (kg) | 1.750 | 1.750 | 2.070 | 1.950 | 2.200 |
| Article number | GE0066025 | GE0065655 | GE0073552 | GE0073553 | GE0073554 |
