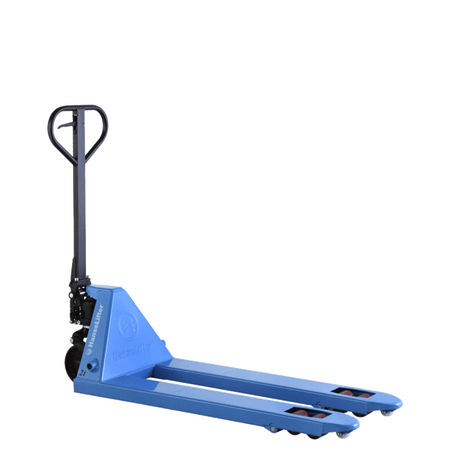

DB pallet truck - the standard for all pallets
The DB pallet truck is the standard model among the pallet trucks. The DB pallet truck is equipped with a fork length of 1150 mm and a load capacity of 2000 kg. Easy handling of the DB is ensured by the 210° steering angle. This also makes the DB pallet truck very easy to manoeuvre. This is a top product, due to a high-quality hydraulic pump, strong construction and high-grade powder coating.
Tyres
The DB pallet truck is available with three different types of rollers. You have a choice between polyurethane (PU), rubber or nylon rollers. The PU rollers have the advantage that they are very durable and quiet, with good grip. The advantage of the rubber rollers, in addition to good grip, is that they are non-chalking due to their soft tread, protecting your floors. The nylon rollers are suitable for use under chemical exposure, but are not as quiet.
Many variations - ideal for industry and trade
Does the DB pallet truck meet your expectations, but its dimensions are not suitable? We also offer the DB pallet truck in special dimensions. You can choose from different models with varying fork lengths, fork outer distance or load capacity. If you still cannot find a suitable model, our Special Construction Department is looking forward to your challenge. Simply contact one of our helpful sales advisors.
Features and technical data
- Load capacity: 2000 kg
- Max. lifting height: 200 mm
- Fork length: 1150 mm
- Load distance: 870 mm
- Fork outer distance: 520 mm
- High-quality powder coating and strong construction
- Range of roller equipment: Polyurethane (PU), nylon or rubber)
- Controlled, continuous lowering at the hand lever
- Easy pallet pick-up from the side
- Fork markings for picking up pallets crossways
- Lubricating nipples for easy maintenance
- High-quality hydraulic pump
- Pressure relief valve for a long service life
Model | DB |
---|---|
Load capacity (kg) | 2.000 |
Tyres | Polyurethane, nylon or rubber |
Operation | Hand |
Lifting height (mm) | 200 |
Minimum fork height (mm) | 85 |
Lift (mm) | 115 |
Lift per tiller stroke | approx. 13 |
Load distance (mm) | 870 |
Overall length (mm) | 1.550 |
Overall width (mm) | 520 |
Fork dimensions (LxWxH, mm) | 1.150/160/50 |
Fork outer distance (mm) | 520 |
Turning radius (mm) | 1.340 |
Truck weight (kg) | 67 |
Article number | GE0022858 |
