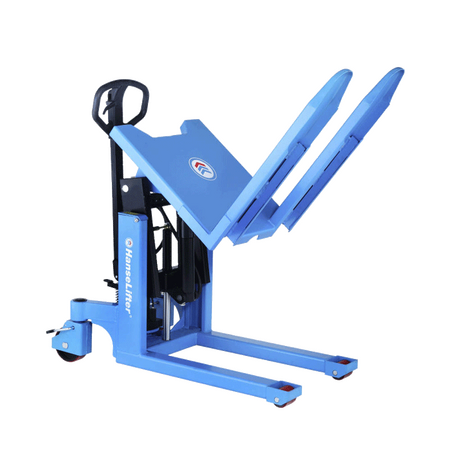

BHN1t pallet lifter, tilter, transporter
With tilt function
- Load capacity: 1000 kg
- Max. lifting height: 275 mm
- Tilt function up to 90°
- Variable working height
- Continuous lowering
The multifunctional BHN1t pallet lifter, tilter, transporter
The BHN1t pallet lifter, tilter, transporter can be used for multiple functions. With a load capacity of 1000 kg, the BHN1t pallet lifter, tilter, transporter is ideally suited for transporting, lifting and tilting of palletised goods, crates or pallet cages.
Tilt and lifting function
The tilt and lifting functions can be controlled independently of each other. The working height is easily adjustable, even when tilted. Using the hand lever at the tiller, you can lower the fork in a controlled, continuous fashion. In addition, all functions of the BHN1t pallet lifter, tilter, transporter can be adjusted from the working area. This provides ergonomics at the workplace and makes the BHN1t pallet lifter, tilter, transporter the ideal production aid in warehouses and operations.
Special constructions
Do none of our devices meet your requirements? Our Special Construction Department can customise your HanseLifter materials handling device to the individual dimensions you require. Use our practical callback service or contact one of our helpful advisors directly.
Features and technical data
- Load capacity: 1000 kg
- Tilt function up to 90°
- Lifting height: 275 mm
- Clearance height: 680 mm
- Fork outer distance: 560 mm
- Lifting and tilting can be controlled independently
- Tiller can be locked in side position/li>
- Variable working height, easily adjustable even when tilted
- Continuous, controlled lowering at the hand lever
| Model | BHN1t |
|---|---|
| Load capacity (kg) | 1.000 |
| Features | Tilt function |
| Lifting height (mm) | 275 |
| Minimum fork height (mm) | 88 |
| Lift (mm) | 187 |
| Lift per tiller stroke | ca. 15 |
| Mast height raised (mm) | 680 |
| Mast height lowered (mm) | 870 |
| Overall length (mm) | 1.410 |
| Overall width (mm) | 714 |
| Fork dimensions (LxWxH, mm) | 800/160/50 |
| Fork outer distance (mm) | 560 |
| Turning radius (mm) | 1.360 |
| Tilt in degrees | to 90 |
| Truck weight (kg) | 178 |
| Article number | GE0022740 |
