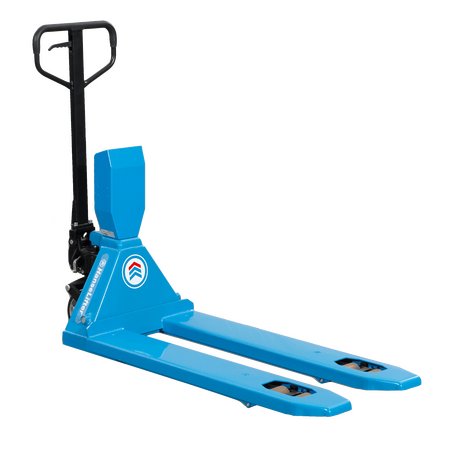

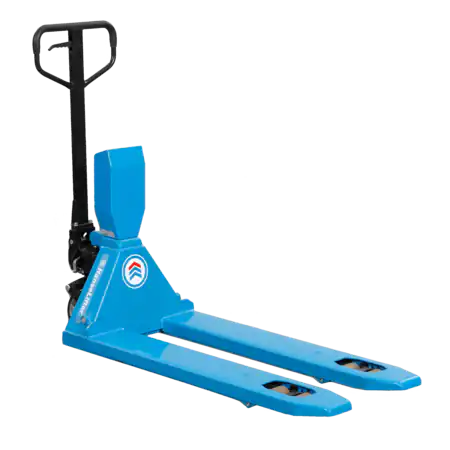

WHP-E weigh scale pallet truck
Calibrated in accordance with EU grade III
- Load capacity: up to 2000 kg
- Max. lifting height: 115 mm
- Calibrated in accordance with EU grade III
- Measurement in 1 kg increments
- Measuring tolerance: 0.1%
Product description
Weighing pallets in accordance with EU Grade III with the WHP-E
Our WHP-E weigh scale pallet truck quickly weighs your pallets up to 2000 kg, and pretty accurately, too. It is calibrated in accordance with EU Grade III and has a calibration certificate which is valid for two years.
Equipment
A rubberised handle provides comfort when moving pallets. An automatic and manual zero correction, tare, gross/net weight display and practical stand-by mode when not in use form part of the standard equipment. The scale is equipped with a 12 V / 1.2 Ah battery. The battery is charged externally and is easily replaceable when required.
Rollers and wheels
The steering wheels are made of rubber and the fork rollers of polyurethane. This makes it possible to pull the WHP-E weigh scale pallet truck over the hall floor quietly and with good grip.
Features and technical data
Ausstattungsmerkmale
- Load capacity: up to 2000 kg
- Measurement in 1 kg increments
- Load centre distance: 600 mm
- High-quality polyurethane rollers
- Battery quick-change system
- Adding memory
- Calibrated in accordance with EU Grade III
- Taring function
- Automatic and manual zero correction
- Measuring tolerance approx. 0.1%
Technical data
| Model | WHP-E1500 | WHP-E2000 |
|---|---|---|
| Features | Calibrated in accordance with EU Grade III, incl. printer | Calibrated in accordance with EU Grade III, incl. printer |
| Load capacity (kg) | 1.500 | 2.000 |
| Measuring range (kg) | 1 - 1.500 | 1 - 2.000 |
| Drive | manuell | manuell |
| Lifting range (mm) | 85 - 200 | 85 - 200 |
| Lift (mm) | 115 | 115 |
| Load centre distance (mm) | 600 | 600 |
| Load distance (mm) | 610 | 610 |
| Overall length (mm) | 1.575 | 1.575 |
| Overall width (mm) | 555 | 555 |
| Fork dimensions (HxWxL, mm) | 60/180/1.150 | 60/180/1.150 |
| Turning radius (mm) | 1.425 | 1.425 |
| Battery (V/Ah) | 12/1,2 | 12/1,2 |
| Operating hours | 35 | 35 |
| Truck weight (kg) | 125 | 130 |
| Article number | GE0024312 | GE0024313 |
