LH25 load hook
For attaching to fork arms
- Load capacity: 2500 kg
- Swivel load hook
- Screw fixing
- For an inner fork distance of 300 mm
- Solid construction
Product description

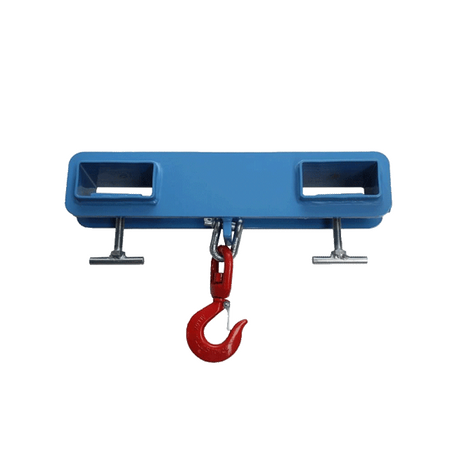

LH25 load hook - for forklift trucks
The LH25 load hook makes it very easy to lift and transport heavy loads up to 2500 kg. The load hook is suitable for forklift trucks, electric pallet stackers or stackers with two fork arms. The max. fork arm width is 147 mm.
Easy operation and safety
The load hook has two forklift pockets, which are particularly easy to attach to forklift trucks. By inserting the fork arms into the forklift pockets and then fixing them in place using the T-bolts supplied, assembly only takes a few minutes. Anti-slip protection and a swivel load hook ensure safe working.
Is the load hook not the right attachment for you?
Our range includes many additional attachments for forklift trucks. For optimal goods handling, you can find other attachments beside the load hook here. If you have any questions or suggestions, please call us at the above phone number or send us an email.
Features and technical data
- With 2500 kg load capacity
- For forks up to 147 mm wide and 56 mm high
- With swivel load hook so loads can swing freely and are easier to control
- Screw fixings for both fork arms
- For an inner fork distance of 300 mm
- Solid, heavy-duty construction with 25 kg own weight
| Model | LH25 |
|---|---|
| Overall length (mm) | 140 |
| Overall width (mm) | 660 |
| Fork inner distance (mm) | 300 |
| Max. fork width/entry width (mm) | 147 |
| Max. fork height (mm) | 56 |
| Truck weight (kg) | 25 |
| Article number | GE0027064 |
