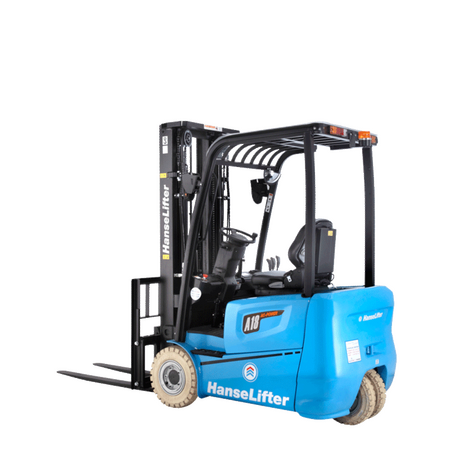

HL3ES-AC6 1.6 - 1.8 t 3-wheel electric forklift truck
High handling performance in confined spaces
- Manoeuvrable, agile and emission-free
- Load capacities up to 1800 kgg
- High-quality electric motors
- Compact design
- Comfort driver's seat
Product description
AC drive motors - low-maintenance and emission-free
The AC drive motors and wet multi-disc brakes of the three-wheel electric forklift trucks are very easy to maintain and ensure a long service life. The encapsulated motors and brakes are resistant to dust and splashing water.
Special constructions and attachments
If our forklift trucks with standard dimensions do not meet your requirements, our Special Construction Department can assist you. Create your customised forklift truck together with us. Of course, we also offer attachments for a wide range of situations. Just call us or send us an email. We look forward to hearing from you!
Features and technical data
Features
- Load capacities from 1.6 t to 1.8 tt
- Lifting ranges up to 6.5 m
- Compact design
- Particularly agile and easy to manoeuvre
- Low-wear three-phase motor
- High-quality HOPPECKE or WERBAT batteries as standard
- Drive via two AC synchronous moto
- Clearly laid out controls in the cockpit
- Easy service and maintenance thanks to easy accessibility of all components
- Ergonomic and clearly laid out workplace
- Comfort driver's seat by GRAMMER
- Lighting and safety package as standard
Technical data
| Model | HL3ES16 | HL3ES18 |
|---|---|---|
| Drive | Elektro | Elektro |
| Load capacity (kg) | 1.600 | 1.800 |
| Free lift (depending on mast variant, mm) | 145 - 2.180 | 145 - 2.180 |
| Lift (depending on mast variant, mm) | 2.500 - 6.500 | 2.500 - 6.500 |
| Mast height extended (depending on mast variant, mm) | 3.065 - 7.455 | 3.065 - 7.455 |
| Height of protective roof (cabin, mm) | 2.130 | 2.155 |
| Overall length (mm) | 2.818 | 2.823 |
| Overall width (mm) | 1.086 | 1.086 |
| Fork arm dimensions (mm) | 35/100/920 | 35/100/920 |
| Driving speed (with/without load, km/h) | 16 / 16 | 16 / 16 |
| Lifting speed (with/without load, mm/s) | 380 / 470 | 370 / 450 |
| Pulling force (with/without load) | 3.300 / 3.900 | 3.200 / 3.800 |
| Parking brake / service brake | mech. / hydr. | mech. / hydr. |
| Drive motor (power S2 60 min., kW) | 4,75 / 4,75 | 4,75 / 4,75 |
| Lift motor (power at S3 15%, kW) | 9,5 | 9,5 |
| Battery voltage (rated capacity K5, V/Ah) | 48 / 500 | 48 / 500 |
| Truck weight (kg) | 3.120 | 3.240 |
Mast variants models HL3ES13-AC6 and HL3ES15-AC6 type standard
| Lifting height (mm) | Overall height (mm) | Overall height raised with / without load safety guard (mm) | Free lift with / without load safety guard (mm) | Tilt of loading surface max. (degree) | Load capacity single tyres (kg) HL3ES16-AC6 | Load capacity single tyres (kg) HL3ES18-AC6 |
|---|---|---|---|---|---|---|
| 2.500 | 1.745 | 3.445 / 3.065 | 145 | 5,5 / 6 | 1.600 | 1.800 |
| 2.700 | 1.845 | 3.645 / 3.265 | 145 | 5,5 / 6 | 1.600 | 1.800 |
| 3.000 | 1.995 | 3.945 / 3.565 | 145 | 5,5 / 6 | 1.600 | 1.800 |
| 3.300 | 2.145 | 4.245 / 3.865 | 145 | 5,5 / 6 | 1.600 | 1.800 |
| 3.500 | 2.245 | 4.445 / 4.065 | 145 | 5,5 / 6 | 1.600 | 1.800 |
| 3.600 | 2.295 | 4.545 / 4.165 | 145 | 5,5 / 6 | 1.600 | 1.800 |
| 4.000 | 2.545 | 4.945 / 4.565 | 145 | 5,5 / 5 | 1.600 | 1.800 |
| 4.300 | 2.710 | 5.245 / 4.865 | 145 | 5,5 / 5 | 1.500 | 1.700 |
| 4.500 | 2.820 | 5.445 / 5.065 | 145 | 5,5 / 5 | 1.400 | 1.600 |
Mast variants models HL3ES16-AC6 and HL3ES18-AC6 type duplex
| Lifting height (mm) | Overall height lowered (mm) | Overall height raised with / without load safety guard (mm) | Free lift / without load safety guard (mm) | Tilt of loading surface max. (degree) | Load capacity single tyres (kg) HL3ES16-AC6 | Load capacity single tyres (kg) HL3ES18-AC6 |
|---|---|---|---|---|---|---|
| 2.500 | 1.745 | 3.455 / 3.095 | 800 / 1.160 | 5,5 / 6 | 1.600 | 1.800 |
| 2.700 | 1.845 | 3.655 / 3.295 | 900 / 1.260 | 5,5 / 6 | 1.600 | 1.800 |
| 3.000 | 1.995 | 3.955 / 3.595 | 1.050 / 1.410 | 5,5 / 6 | 1.600 | 1.800 |
| 3.300 | 2.145 | 4.255 / 3.895 | 1.200 / 1.560 | 5,5 / 6 | 1.600 | 1.800 |
| 3.500 | 2.245 | 4.455 / 4.095 | 1.300 / 1.660 | 5,5 / 6 | 1.600 | 1.800 |
| 3.600 | 2.295 | 4.555 / 4.195 | 1.350 / 1.710 | 5,5 / 6 | 1.600 | 1.800 |
| 4.000 | 2.545 | 4.955 / 4.595 | 1.600 / 1.960 | 5,5 / 5 | 1.600 | 1.800 |
Mast variants models HL3ES16-AC6 and HL3ES18-AC6 type triplex
| Lifting height (mm) | Overall height lowered (mm) | Overall height raised with / without load safety guard (mm) | Free lift with / without load safety guard (mm) | Tilt of loading surface max. (degree) | Load capacity single tyres (kg) HL3ES16-AC6 | Load capacity single tyres (kg) HL3ES18-AC6 |
|---|---|---|---|---|---|---|
| 4.000 | 1.910 | 4.955 / 4.595 | 965 / 1.325 | 3,5 / 5 | 1.600 | 1.800 |
| 4.300 | 2.010 | 5.255 / 4.895 | 1.065 / 1.425 | 3,5 / 5 | 1.500 | 1.700 |
| 4.500 | 2.075 | 5.455 / 5.095 | 1.130 / 1.490 | 3,5 / 5 | 1.400 | 1.600 |
| 4.800 | 2.175 | 5.755 / 5.395 | 1.230 / 1.590 | 3,5 / 5 | 1.300 | 1.500 |
| 5.000 | 2.240 | 5.955 / 5.595 | 1.295 / 1.655 | 3,5 / 5 | 1.200 | 1.400 |
| 5.500 | 2.410 | 6.455 / 6.095 | 1.465 / 1.825 | 3,5 / 5 | 1.100 | 1.250 |
| 6.000 | 2.625 | 6.955 / 6.625 | 1.680 / 2.010 | 3,5 / 5 | 1.000 | 1.100 |
| 6.500 | 2.840 | 7.455 / 7.170 | 1.895 / 2.180 | 3,5 / 5 | 800 | 950 |
