WF pallet truck
For displays and short pallets
- Load capacity: 500 kg
- Max. lifting height: 150 mm
- Small turning circle
- Particularly short forks
- Ideal for half pallets
Product description

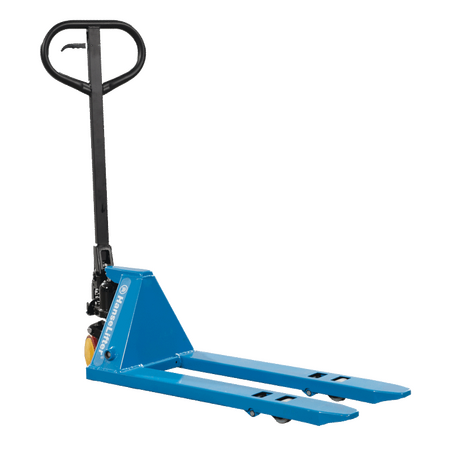

WF pallet truck - ideal for small spaces
The WF mini pallet truck is specially designed for small spaces. With a fork length of 800 mm and a width of 380 mm, the HanseLifter WF mini pallet truck can be used in the tightest of spaces and is also easy to transport. It has a load capacity of 500 kg and is, for example, suitable for the transport of retail displays of for being carried on lorries
Applications
The WK mini pallet truck is the optimal materials handling device for retail. It is extremely well suited for transporting displays and small pallets. Excellent manoeuvrability is ensured due to the short forks and the 210° steering angle. As a result, the WF mini pallet truck is particularly impressive in irregularly shaped rooms and narrow aisles.
Pallet trucks for different situations
We can offer you a suitable materials handling device for almost every situation. Our range includes, for example, the HH5t pallet truck for heavy loads up to 5 tons and the NR stainless steel pallet truck for use in cleanrooms and under chemical exposure. If you still cannot find a device in our range to meet your requirements, you can design your individual pallet truck with our Special Construction Department.
Features and technical data
- Load capacity: 500 kg
- Max. lifting height: 150 mm
- Load centre: 570 mm
- Load distance: 190 mm
- Fork outer distance: 380 mm
- Nylon fork rollers and polyurethane steering wheels
- Particularly short forks
- Ideal for half pallets and displays
- For narrow rooms or obstructed aisles
- Light and easy to handle, making it ideally suited for being carried on lorries
| Model | WF mini pallet truck |
|---|---|
| Load capacity (kg) | 500 |
| Drive | Manual |
| Features | Light and compact |
| Tyres | Polyurethane/nylon |
| Operation | Manual |
| Lifting range (mm) | 60-150 |
| Lift (mm) | 90 |
| Load centre distance (mm) | 570 |
| Load distance | 190 |
| Overall length (mm) | 1.126 |
| Overall width | 380 |
| Fork length (mm) | 800 |
| Fork dimensions (LxWxH, mm) | 800/100/40 |
| Fork outer distance (mm) | 380 |
| Turning radius (mm) | 1.100 |
| Minimum fork height (mm) | 60 |
| Truck weight (kg) | 34 |
| Article number | GE0024298 |
