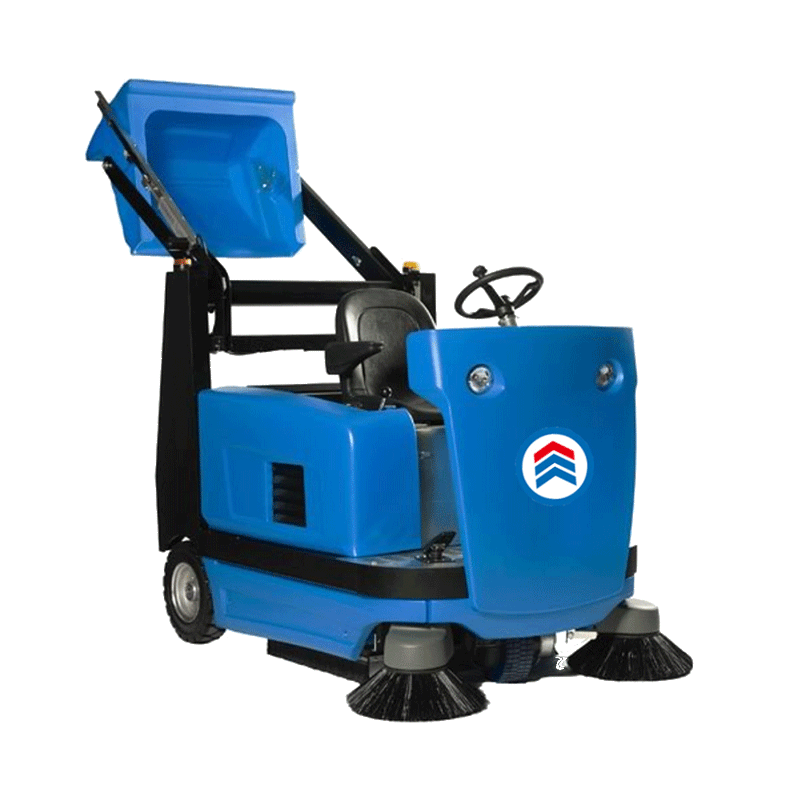

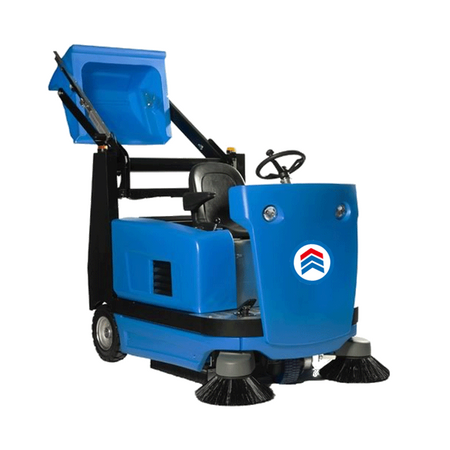

TWIN TOP 1300 ride on vacuum sweeper
With extra large dirt collector
- Tandem roller system (TRS)
- Petrol, diesel, electric motor
- High discharge
- Solid steel frame
- Optimal access to technology
Modern ride on vacuum sweeper for large areas
With the motorised TWIN TOP 1300 ride on sweeper, you always stay in control of large areas up to 50000 m². In just one pass, the sweeper picks up coarse and fine dirt of all types, from fine dust to stones and bottles.
Different motor variants for maximum flexibility
The TWIN TOP 1300 ride on sweeper is available in several versions. Choose between an electric motor, diesel or petrol engine and receive a device that is tailored to your requirements.
Different attachment options on request
On request, you can select up to 4 side brushes made of different materials, a driver's overhead guard or a driver's cab, a sprung suspension seat or individual requirements.
A powerhouse with TRS for best results
The TWIN TOP 1300 vacuum sweeper combines the tandem roller system (TRS) for unsurpassed sweeping results with the particularly robust, high-performance platform of a professional sweeper for exceptionally reliable operation under the most difficult conditions. The two counter-rotating brush rollers reliably pick up both fine dust and objects up to a size of 1 litre bottles, grip the dirt and throw it overhead into the rear dirt collector, filling it up to 90%.
Nothing is left behind!
Is the TWIN TOP 1300 ride on vacuum sweeper not the right device for you?
We offer a large range of high-quality sweepers. For optimal cleaning results, you can find other outstanding ride on sweepers in addition to the TWIN TOP 1300. If you have any questions or suggestions, please call us at the above phone number or send us an email..
Features & technical data
- Tandem roller system (TRS)
- Available with a diesel, petrol or electric motor
- High discharge
- Solid steel frame
- Optimal access to technology
- Variety of additional equipment
| Modell | TWINTOP/P1300 | TWINTOP/E1300 | TWINTOP/D1300 |
|---|---|---|---|
| Drive type / engine type | Petrol engine Honda GX 390 / 8.20 kW +a 3600 rpm |
Electric engine 24 V, 360 Ah 2,9 kW |
Diesel engine 2 cyl. Lombardini 702 11,7 KW |
| Sweeping principle | TWS | TWS | TWS |
| Working width without side brushes (mm) | 800 | 800 | 800 |
| - with one side brush (mm) | 1.100 | 1.100 | 1.100 |
| - with two side brushes (mm) | 1.300 | 1.300 | 1.300 |
| Transmission | Hydraulic / chain | Hydraulic / chain | Hydraulic / chain |
| Theoretical sweeping performance (m²/h) | 13.000 | 13.000 | 13.000 |
| Practical sweeping performance (m²/h (70%)) | 9.100 | 9.100 | 9.100 |
| Net cleaning area (m²) up to | 50.000 | 50.000 | 50.000 |
| Dirt collector volume (litres) | 150 | 150 | 150 |
| Runtime (h) | >6 | >4 | >6 |
| Motorised sweeper roller drive | Yes | Yes | Yes |
| Dimensions (LxWxH, mm) | 1.830x1.130x1.540 | 1.830x1.130x1.540 | 1.830x1.130x1.540 |
| Truck weight (kg) | 670 | 850 | 690 |
| Drive | Yes | Yes | Yes |
| Dust suction | Yes | Yes | Yes |
| Dust suction air volume (m3/h) | 1.200 | 1.200 | 1.200 |
| Filter area (m²) | 6 | 6 | 6 |
| Speed (km/h) | 10 | 8 | 10 |
| Gradeability (%) | 20 | 20 | 20 |
| Areas of application | + Large carpeted areas + Halls + Industrial plants + Warehouses + Parking lots + Plublic areas + Exhibition areas + Production areas + Stadiums + Underground car parks |
+ Large carpeted areas + Halls + Industrial plants + Warehouses + Parking lots + Plublic areas + Exhibition areas + Production areas + Stadiums + Underground car parks |
+ Large carpeted areas + Halls + Industrial plants + Warehouses + Parking lots + Plublic areas + Exhibition areas + Production areas + Stadiums + Underground car parks |
| Article number | GE0042040 | GE0030943 | GE0042039 |
