TRSHT electric scissor lift table
Triple scissors up to 3.0 m lifting height
- Load capacity depending on model: 1000 or 2000 kg
- Lifting range depending on model: 470-3000 mm
- Seamless hydraulic height adjustment
- All-round protective frame
- External control panel with approx. 3000 mm supply cable
TRSHT electric scissor lift tables

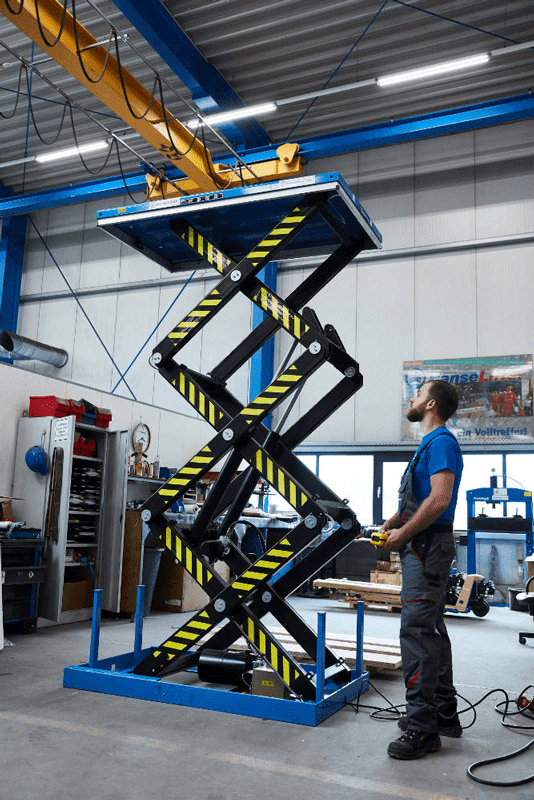

Electric scissor lift tables of the TRSHT series can be mounted directly on the floor or sunk into it. When sunk into the floor, it is a space-saving variant. Electric scissor lift tables are mainly used for loading or equipping in warehouses, freight forwarding or industrial operations. The electric scissor lift tables of the TRSHT series with triple scissors have a maximum table height of 3000 mm and a load capacity up to 2000 kg.
High-quality equipment

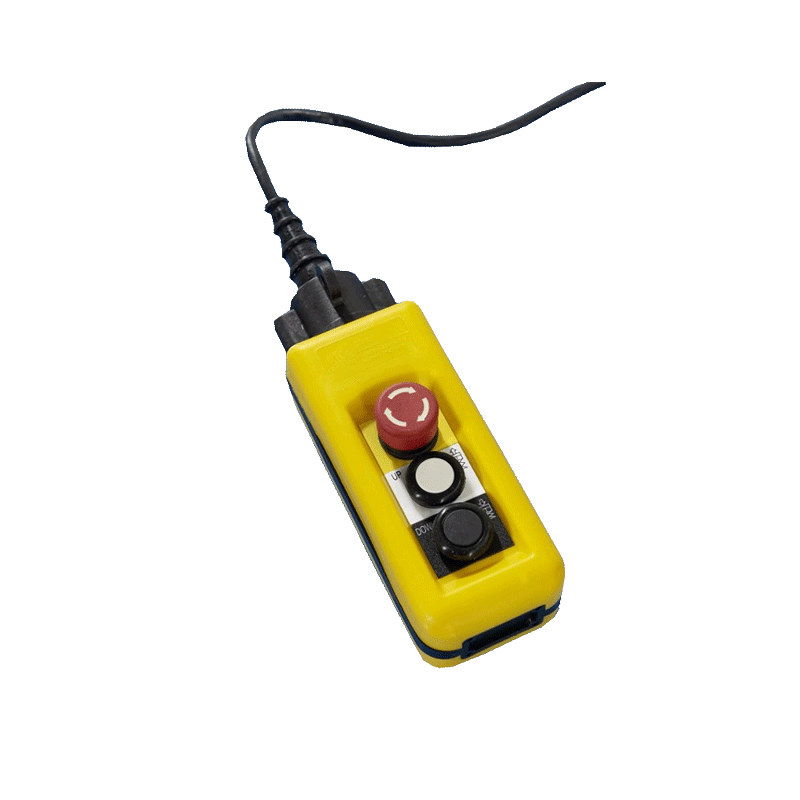

You can choose between two versions of the TRSHT, which differ in their load capacity. The lifting platform measures 1700 mm by 1000 mm and is identical in both versions. The lift table has an external control panel with a supply cable which is approx. 3 m in length. This allows you to operate your TRSHT at a safety distance. The high-quality powder coating and the protective frame protect the device against damages and scratches. The TRSHT is also equipped with an Emergency Stop and key switch. Electric scissor lift table for the highest lifting heights!
Select the voltage
The TRSHT electric scissor lift table is optionally available with a voltage of 380 V or 230 V. The lift motor lifts with 2.2 kW. Select the voltage you prefer and please contact one of our staff if you would like some advice or have decided on the 230 V voltage.
Features and technical data
- Load capacities depending on model: 1000 or 2000 kg
- Lifting range depending on model: 470 - 3000 mm
- Platform dimensions: 1700 x 1000 mm
- Lowered height depending on model: 470 or 560 mm
- External control panel with approx. 3000 mm supply cable
- Lift motor: 2.2 kW
- Mains voltage: 380/16 V/Ah
- Seamless hydraulic height adjustment
- Triple scissors
- Strong scissor struts
- High-quality powder coating
- Safety distances between the scissor lifts
- All-round protective frame
- Ideal for multi-storey warehouses
| Model | TRSHT1t | TRSHT2t |
|---|---|---|
| Features | Triple scissors | Triple scissors |
| Load capacity (kg) | 1.000 | 2.000 |
| Lifting range (mm) | 470 - 3.000 | 560 - 3.000 |
| Lift (mm) | 2.530 | 2.440 |
| Lifting speed (mm/s) | 30 - 40 | 45 - 45 |
| Platform size (LxW, mm) | 1.700 x 1.000 | 1.700 x 1.000 |
| Overall length (mm) | 1.700 | 1.700 |
| Overall width (mm) | 1.000 | 1.000 |
| Lift motor (kW) | 2.2 | 2.2 |
| Mains voltage (V/A) | 380 / 16 | 380 / 16 |
| Supply cable to control panel (mm) | 3.000 | 3.000 |
| Truck weight (kg) | 450 | 750 |
| Article number | GE0027604 | GE0031200 |
