TASHT electric scissor lift table
With tandem scissors up to 8.0 t load capacity
- Load capacity: 8000 kg
- Lifting range depending on model: 205-1050 mm
- External control panel with approx. 3000 mm supply cable
- Seamless hydraulic height adjustmentg
- Extra-long lifting platform

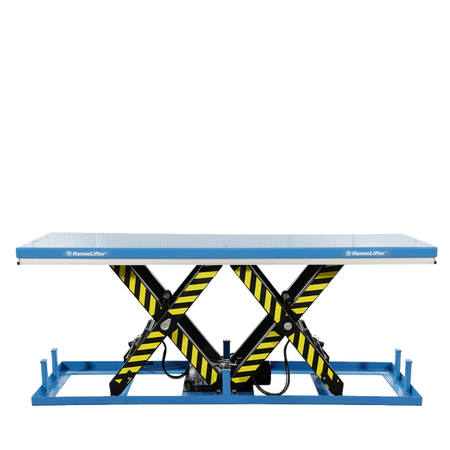

TASHT electric scissor lift tables
Electric scissor lift tables of the TASHT series can be mounted directly on the floor or sunk into it. When sunk into the floor, it is a space-saving variant. Electric scissor lift tables are mainly used for loading or equipping in warehouses, freight forwarding or industrial operations. The electric triplex scissor lift tables of the TASHT series have a maximum table height of 1050 mm and a load capacity up to 8000 kg.
Features and equipment
The TASHT electric scissor lift table is available in three different versions which differ in load capacity as well as platform size. The tables are equipped with an external control panel with a supply cable of approx. 3 m. It is encapsulated in accordance with IP 65 and has an Emergency Stop as well as a key switch. With its all-round protective frame and high-quality powder coating, the lift table is optimally protected against damages and scratches. The design is maintenance-friendly, all important parts are easily accessible. TASHT electric scissor lift table for particularly heavy loads!
Choose between 380 V and 230 V
The TASHT has a lift motor which lifts with 2.2 kW. The lifting speed varies depending on load capacity and model. The lift motor is powered by an optional voltage of 380 V or 230 V. If you have decided on the version with 230 V, please contact one of our helpful sales consultants.
Features and technical data
- Load capacity depending on model: 2000 - 8000 kg
- Lifting range depending on model: 205 - 1050 mm
- Platform dimensions differ depending on model
- Lowered height depending on model: 205, 230 or 240 mm
- External control panel with approx. 3000 mm supply cable
- Lift motor: 2.2 kW
- Mains voltage: 380/16 V/Ah
- Continuous hydraulic height adjustment
- Sturdy tandem scissor struts
- Extra-long lifting platform
- High-quality powder coating
- All-round protective frame
- Ideal for large, bulky and heavy loads
| Model | TASHT2t | TASHT4t | TASHT8t |
|---|---|---|---|
| Features | Tandem scissors | Tandem scissors | Tandem scissors |
| Load capacity (kg) | 2.000 | 4.000 | 8.000 |
| Lifting range (mm) | 205 - 990 | 230 - 990 | 240 - 1.050 |
| Lift (mm) | 785 | 760 | 810 |
| Platform size (LxW, mm) | 2.500 x 820 | 2.500 x 850 | 3.000 x 1.200 |
| Overall length (mm) | 2.500 | 2.500 | 3.000 |
| Overall width (mm) | 820 | 850 | 1.200 |
| Lift motor (kW) | 2,2 | 2,2 | 2,2 |
| Lifting speed (mm/s) | 25 | 40 | 75 |
| Mains voltage (V/A) | 380 / 16 | 380 / 16 | 380 / 16 |
| Supply cable to control panel (mm) | 3.000 | 3.000 | 3.000 |
| Truck weight (kg) | 265 | 360 | 705 |
| Article number | GE0027660 | GE0031037 | GE0029294 |
