SPSR & SPR scissor lift tables
With removable roller track
- Load capacities up to 500 kg
- Max. lifting heights up to 1585 mm
- Sturdy foot pump
- High-quality powder coating
- Parking brake
Product description

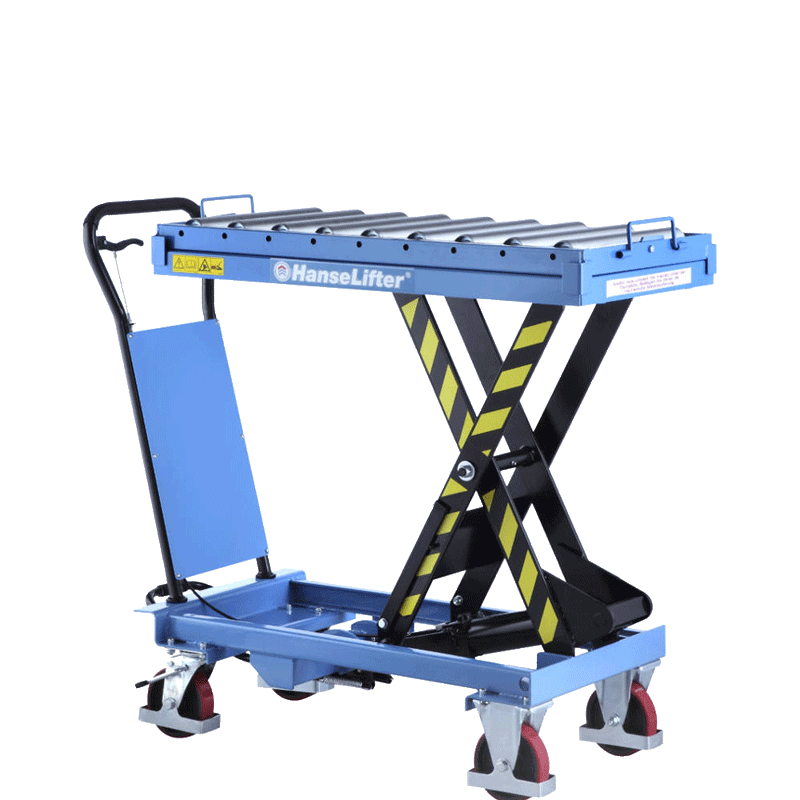

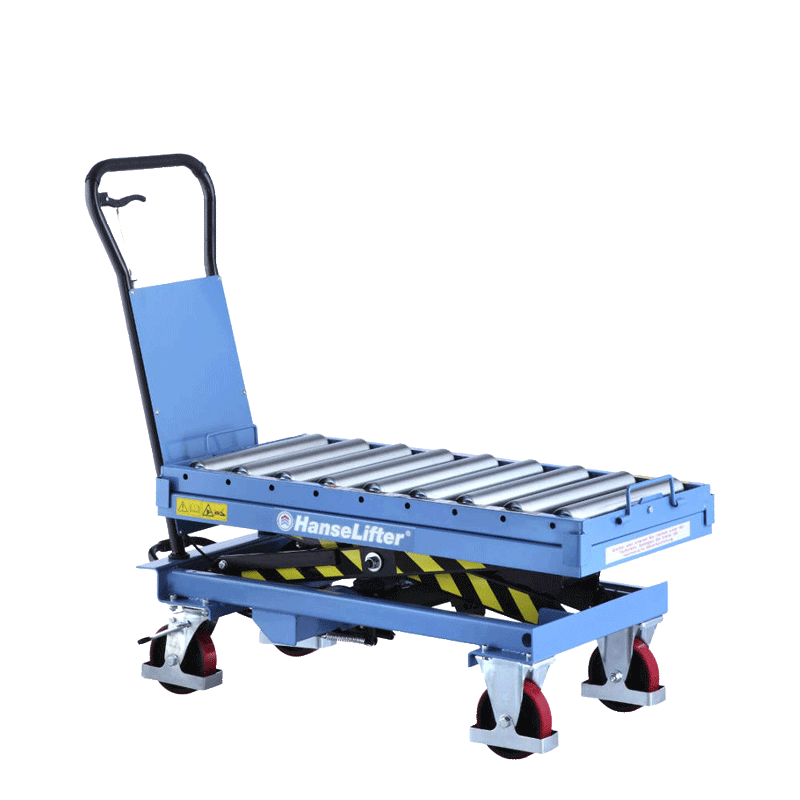

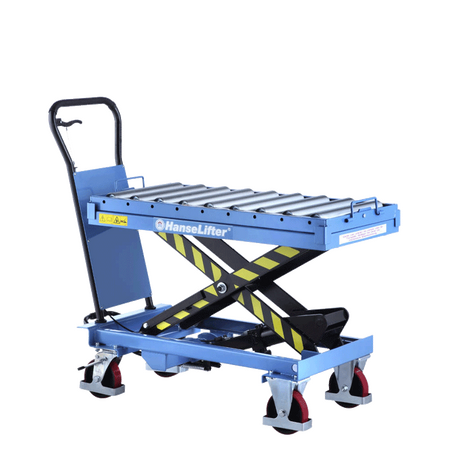

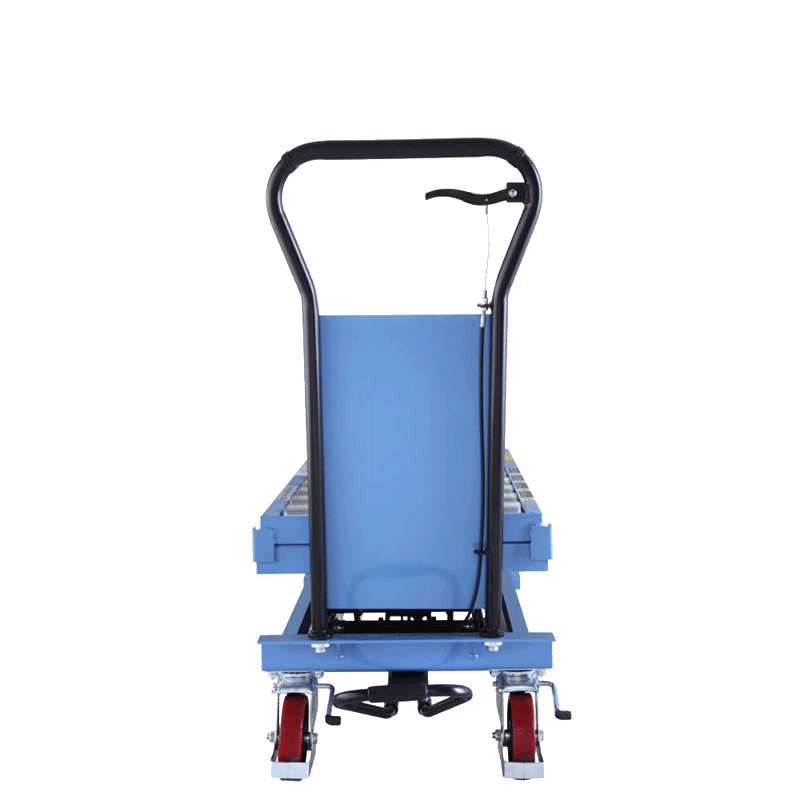

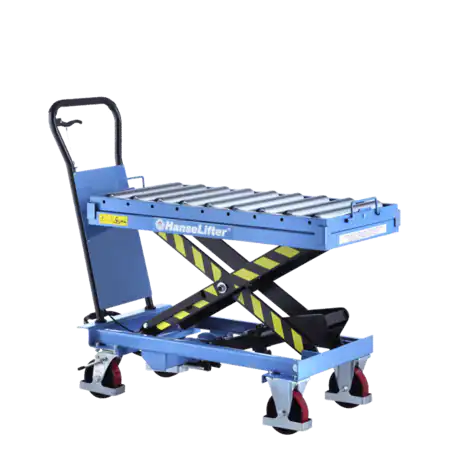

The SPSR & SPR manual scissor lift tables
The lift tables of the SPSR & SPR series are available with load capacities of 300 kg or 500 kg and reach a max. lifting height of 1585 mm. All lift tables feature high-quality powder coating, a robust steel frame and strong scissor struts. Quality rollers made of polyurethane ensure particularly smooth running on all even surfaces and parking brakes on the steering wheels hold the lift table in position during loading and unloading.

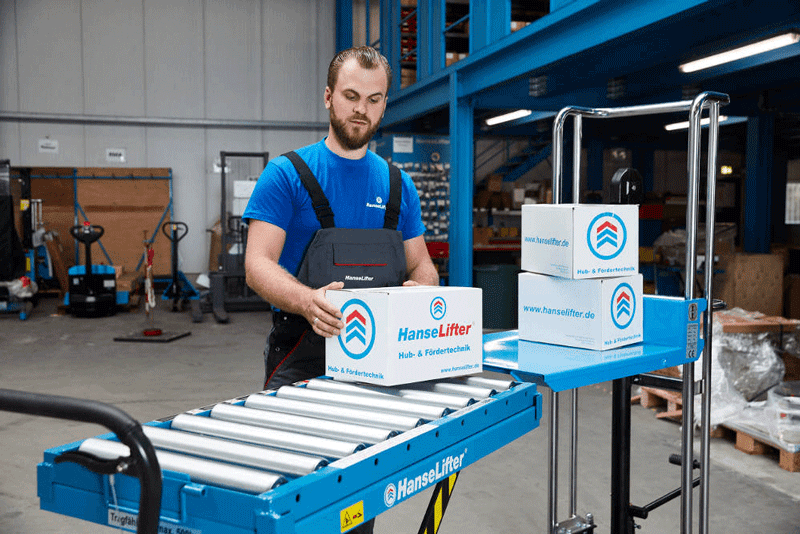

Use in production lines
The scissor lift tables of the SPSR & SPR series are ideally equipped for use in production lines. With the attachable roller track, they are ideal for integration in a production line, where they can be used to transport even heavy finished and semi-finished parts from one assembly line to the next without having to lift them by hand.
Tyres
These lift table models are equipped with high-quality rollers made of polyurethane. These are quiet, abrasion-resistant and have strong grip. It is possible to roll over small surface irregularities without a problem. Parking brakes are attached to both steering wheels, which ensure firm positioning.
Features & technical data

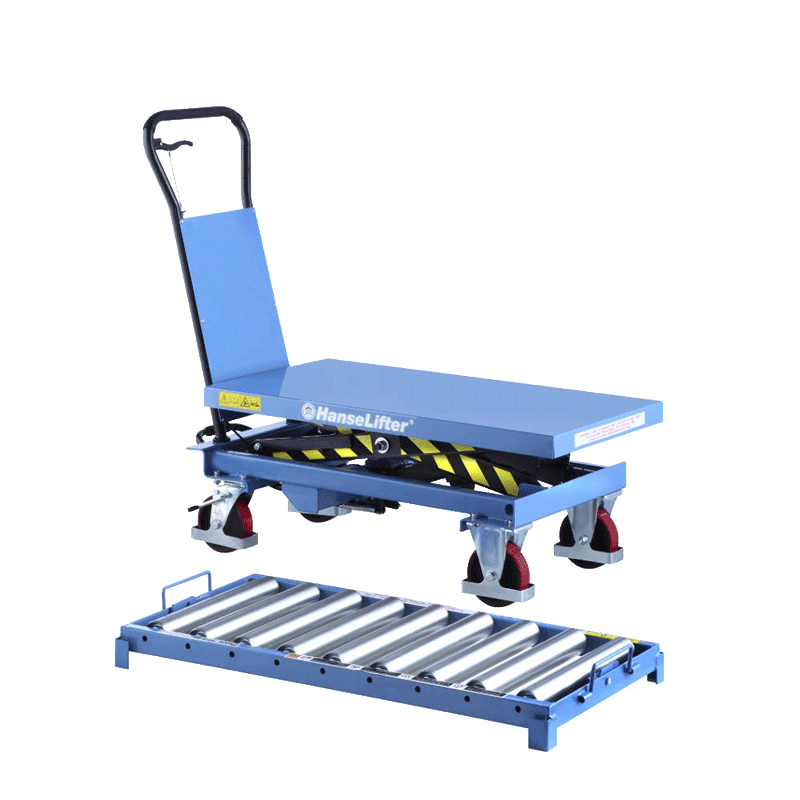

- Feature: With practical, removable roller track
- Load capacities depending on model: 300 or 500 kg
- Lifting range depending on model: 370 - 1015 mm
- Handle height depending on model: 920 or 970 mm
- Sturdy foot pump for energy-saving lifting of the table
- Controlled, continuous lowering of the table at the hand lever
- Parking brake on both steering wheels
- Roller equipment: Polyurethane (PU)
- High-quality powder coating
- High-quality hydraulic pump
| Model | SPSR300 | SPR500 |
|---|---|---|
| Load capacity (kg) | 300 | 500 |
| Features | With roller track | With roller track |
| Scissor version | Double | Double |
| Lift (mm) | 1.150 | 565 |
| Lifting range without roller track (mm) | 435-1.585 | 435-1.000 |
| Lifting range with roller track (mm) | 499-1.690 | 499-1.064 |
| Loading area (LxW) without roller track (mm) | 1.010-520 | 1.010-520 |
| Loading area (LxW) with roller track (mm) | 1.025-535 | 1.025-535 |
| Overall length (mm) | 1.275 | 1.275 |
| Overall length (mm) with roller track | 1.283 | 1.283 |
| Overall width (mm) | 520 | 520 |
| Overall width (mm) with roller track | 535 | 535 |
| Operation | Manual | Manual |
| Handle height (mm) | 925 | 950 |
| Tiller strokes up to max. height (approx.) | 77 | 55 |
| Tyres | Polyurethane | Polyurethane |
| Truck weight (kg) | 150 | 118 |
| Own weight (kg) with roller track | 175 | 143 |
| Article number | GE0024082 | GE0024079 |
