SPS & SPF scissor lift tables
With a lifting height up to 1.5 m
- Load capacities up to 680 kg
- Max. lifting height up to 1510 mm
- Sturdy foot pump
- High-quality hydraulic pump
- Parking brake
Product description

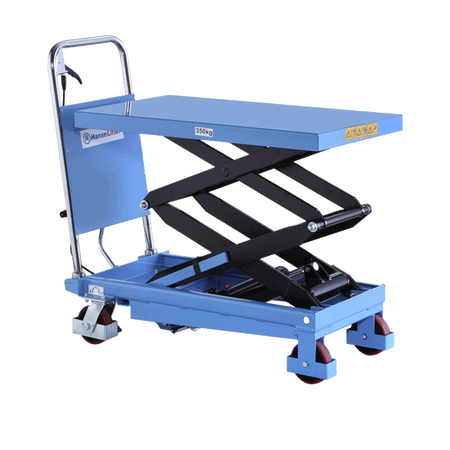

SPS/SPF manual scissor lift tables
In contrast to the single scissor lift tables, the double scissor lift tables of the SPS/SPF series can reach a significantly larger lifting height of up to 1.5 m. The maximum load capacity is 680 kg. The double scissor lift tables are available in three different versions, which differ in their load capacity, lifting height and platform dimensions.
Features
All double scissor lift tables of the SPS/SPF series feature high-quality powder coating, a robust steel frame and strong scissor struts. The table can be raised with little effort using a foot pedal. The tyres consist of high-quality polyurethane. Parking brakes are attached to both steering wheels, which ensure firm positioning. With this equipment, the lift tables can be used universally in warehousing, order picking or in general day-to-day operations.
Special constructions for specific situations
Of course, there are situations where our standard materials handling devices cannot be of assistance. This is where our Special Construction Department comes into play. Please send us your request per email or contact one of our sales persons directly for advice. We look forward to every challenge!
Features & technical data
- Feature: Strong double scissor struts
- Load capacities: 150 - 680 kg (model-dependent)
- Lifting range: 330 - 1510 mm (model-dependent)
- Handle heigh: depending on model between 925 - 1000 mm
- Sturdy foot pump for energy-saving lifting of the table
- Controlled, continuous lowering of the table at the hand lever
- Parking brakes on both steering wheels
- High-quality powder coating
- High-quality hydraulic pump
- Strong double scissor struts
- Robust steel frame construction
- Polyurethane roller equipment for particularly smooth running on even surfaces
| Model | SPS150 | SPS350 | SPF680 |
|---|---|---|---|
| Load capacity (kg) | 150 | 350 | 680 |
| Features | Double scissors | Double scissors | Double scissors |
| Height of table, lowered | 302 | 350 | 474 |
| Lifting height (mm) | 798 | 950 | 1.026 |
| max. lifting height (mm) | 1.100 | 1.300 | 1.500 |
| Foot pedal cycles up to max. height | 30 | 60 | 35/80 |
| Table size (LxWxH, mm) | 700x450x35 | 910x450x35 | 1.210x610x55 |
| Total height (mm) | 921 | 970 | 1.038 |
| Overall length (mm) | 773 | 980 | 1.289 |
| Operation | Manual | Manual | Manual |
| Wheel diameter (d mm) | 100 | 127 | 150 |
| Tyres | Polyurethane | Polyurethane | Polyurethane |
| Truck weight (kg) | 64 | 105 | 185 |
| Article number | GE0024080 | GE0024081 | GE0024076 |
