SPAG200 all-terrain lift table
Lift table for rough terrain
- Load capacity: 200 kg
- Max. lifting height: 1010 mm
- Sturdy foot pump
- High-quality hydraulic pump
- Parking brake
Product description

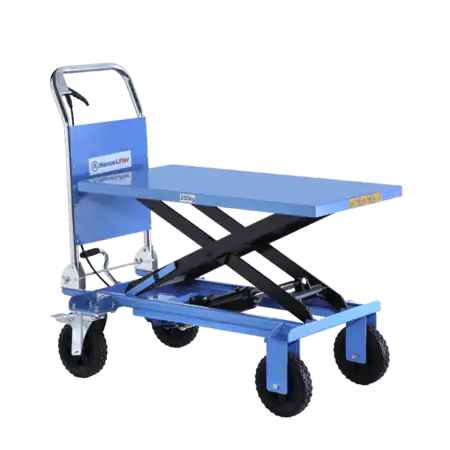

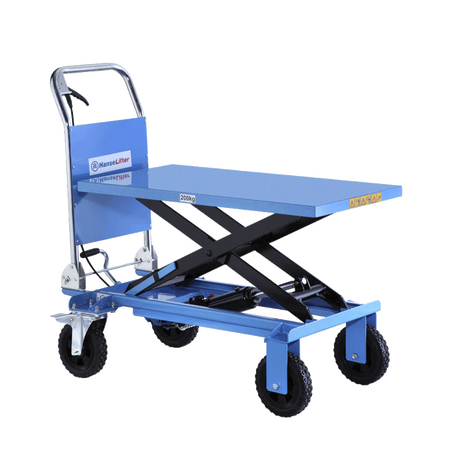

SPAG200 all-terrain lift table
The SPAG200 all-terrain lift table is particularly suited for work in rough terrain, such as construction sites or on gravelled areas. Its rubber tyres and high ground clearance mean that this all terrain lift table is particularly suitable for use in rough terrain. This is complemented by a load capacity of 200 kg and a quality hydraulic pump which is fully extended with approx. 9 lifting movements.
Features
The SPAG all-terrain lift table impresses with its solid scissor struts and robust steel frame construction. Unintended scratches and damages are prevented by the high-quality powder coating. Little energy is required for lifting, thanks to the strong foot pedal. Using a hand lever on the handle, the SPAG can be lowered in a controlled, continuous manner. The extra-large rubber rollers ensure smooth running, also on uneven ground.
Are these not the right dimensions for you?
Our Special Construction Department will be pleased to adapt your HanseLifter materials handling device to the required situations. Simply send us your request or call us for advice on the different options. We look forward to your challenge.
Features & technical data
- Load capacity: 200 kg
- Lifting range: 330 - 1010 mm
- Handle height: 1055 mm
- Platform dimensions (lxw): 1000 x 500 mm
- Ground clearance: 140 mm
- Sturdy foot pump for energy-saving lifting of the table
- High-quality hydraulic pump
- Lowering via hand lever at handle
- Parking brake on both steering wheels
- Roller equipment: Large treaded rubber tyres with grip
- High-quality powder coating
- Controlled, continuous lowering at the hand lever
- Perfect for rough terrain, e.g. on construction sites or scrapyards
| Model | SPAG200 |
|---|---|
| Load capacity (kg) | 200 |
| Features | Single |
| Lifting range (mm) | 330-1.010 |
| Lift (mm) | 680 |
| Lift per tiller stroke (mm) | 70 |
| Platform size (LxW, mm) | 1.000x500 |
| Overall length (mm) | 1.180 |
| Overall width (mm) | 620 |
| Operation | Manual |
| Handle height (mm) | 1.055 |
| Tiller strokes up to max. height (approx.) | 70 |
| Tyres | Rubber |
| Truck weight (kg) | 73 |
| Article number | GE0024073 |
