Premium BF pallet truck

For easy pallet pick-up

  • Load capacity: 2500 kg
  • Fork length: 1150 mm
  • Load centre distance: 600 mm
  • Range of roller equipment
  • Fork outer distance: 520 mm

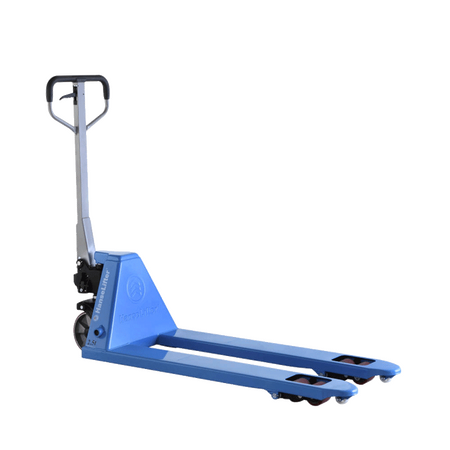

Premium BF pallet truck

The BF-series pallet trucks are among our bestsellers. Specially designed for long-term continuous use in industry and production, they make it easier to move pallets. The BF pallet truck is not only one of our standard pallet trucks, it is a real pallet truck with impressive high-quality components.

With a load capacity of 2500 kg and a fork lenght of 1150 mm, the BF pallet truck is the standard truck for transporting EURO pallets in warehouses and plants. The rubberised tiller handle ensures a comfortable grip when moving pallets. The pallet can be continuously lowered using the lever at the tiller. The reinforced tiller and reinforced frame guarantee a long service life. Lubricating nipples facilitate maintenance. Pallet pick-up from the side is made easier by the markings on the fork arms. The BF is equipped with tandem fork rollers and entry and exit rollers as standard..

Select your rollers

You can order the BF pallet truck with different rollers. There is a choice of polyurethane (PU) rollers, nylon rollers or rubber rollers. Each roller selection has its own advantages.

Polyurethane rollers, also called PU rollers, are quiet, abrasion-resistant and have good grip. In addition, they can easily roll over surface irregularities and are a good compromise between smooth running and rolling resistance. PU rollers are suitable for delicate and hard floors.

Nylon rollers run very smoothly and have a hard and abrasion-resistant running surface. They are not as quiet, but extremely low-wearing and largely protected against chemical exposure. Nylon rollers are particularly suitable for heavy loads and smooth floors.

Rubber rollers are very quiet and provide a lot of grip. Their soft running surface means that chalking is possible. Rubber rollers are ideally suited for uneven and wet floors or on ramps.

Features and technical data

Features
  • Load capacity: 2500 kg
  • Maximum lifting height: 200 mm
  • Load centre distance: 600 mm
  • Load distance: 855 mm
  • Fork outer distance: 520 mm
  • Reinforced tiller
  • Rubberised tiller handle
  • Range of roller equipment: Polyurethane (PU), nylon or rubber
  • Tandem fork rollers and entry rollers for easy pallet pick-up
  • Lubricating nipples for easy maintenance
  • Reinforced frame for continuous use
  • Entry markings for pallet pick-up from the side
Technical Data
Model BF
Load capacity (kg) 2.500
Tyres Polyurethane, nylon or rubber
Operation Manual
Lifting height (mm) 200
Minimum fork height (mm) 85
Lift (mm) 115
Lift per tiller stroke approx. 15
Load distance (mm) 855
Overall length (mm) 1.535
Overall width (mm) 520
Fork dimensions (LxWxH, mm) 1.150/160/50
Fork outer distance (mm) 520
Turning radius (mm) 1.425
Truck weight (kg) 77
Article number GE0022661
