NHT tilting lift tables
Tilt up to 45°
- Load capacities up to 600 kg
- Max. lifting height up to 1000 mm
- Lifting via foot pump
- High-quality powder coating
- Parking brake
Product description

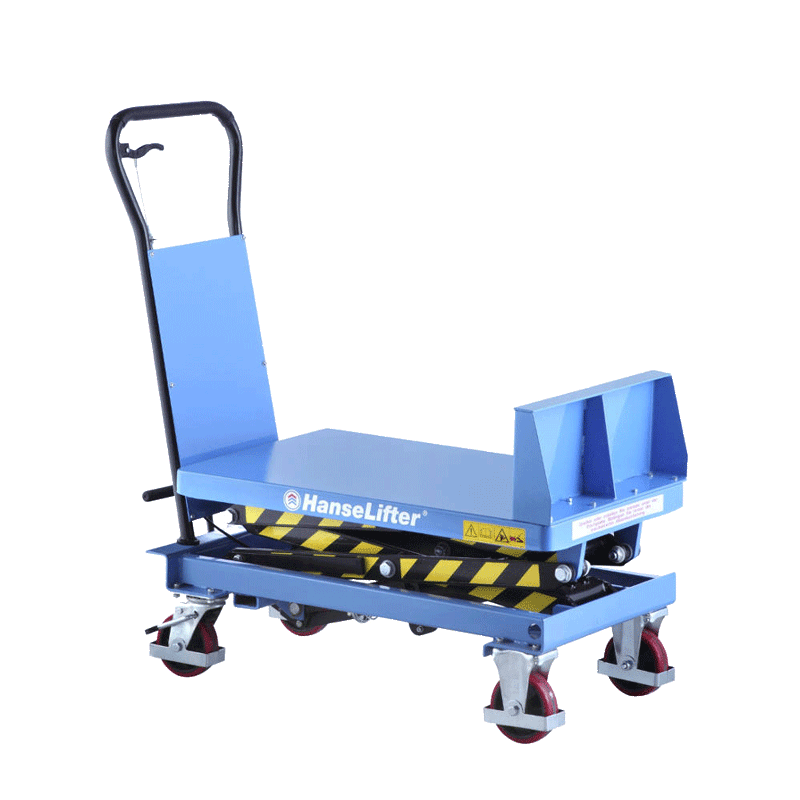

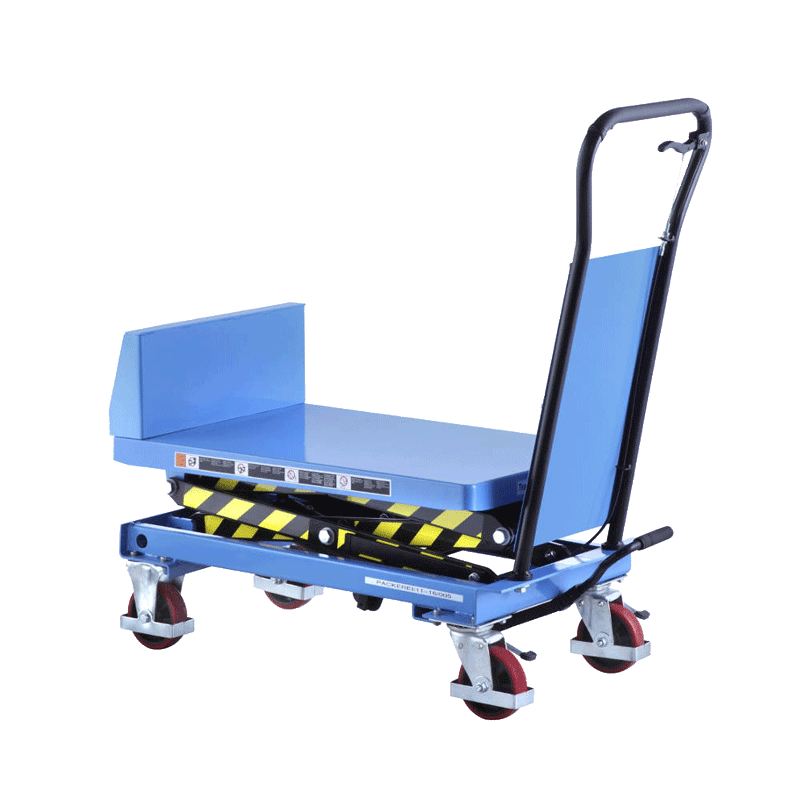

E-NHT tilting lift table

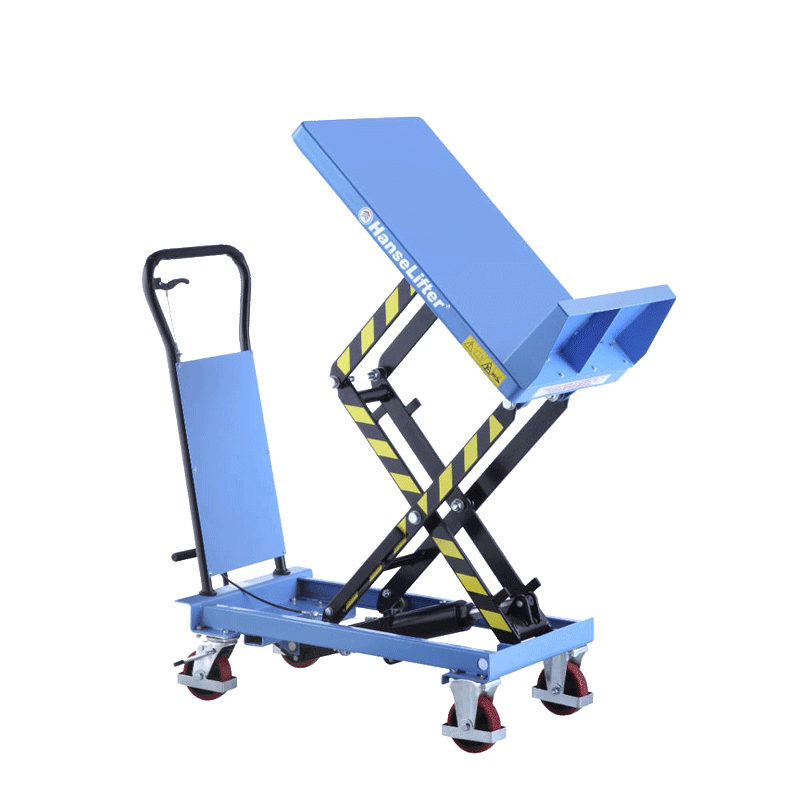

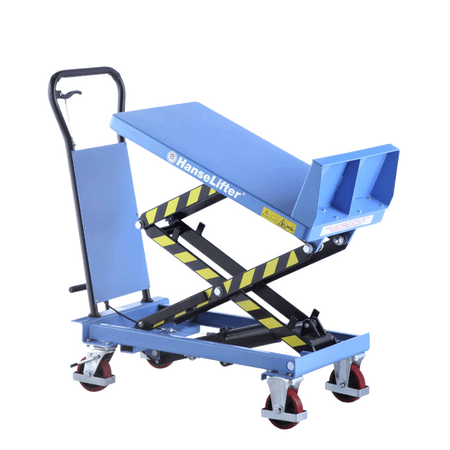

The manual tilting lift tables of the NHT series provide support when loading, filling or unloading machines and shelves in production, manufacture or warehouses. By moving the goods to a suitable height, you can protect your back and create an ergonomic workplace. The tilt function of the NHT series lift tables up to 45° provides additional relief and facilitates easy filling or unloading of transport crates or boxes. The raising of the table platform with a foot pump requires little effort and it can be lowered again using a lever at the handle.
Roller equipment
The abrasion-resistant polyurethane (PU) rollers of the NHT tilting lift table are the ideal equipment on even surfaces. They ensure smooth running and even make it possible to quietly and easily roll over small surface irregularities. The PU rollers also provide strong grip. A parking brake is mounted on the right steering wheel, which can lock the NHT in position if required and give it firm hold.
Different versions
The NHT tilting lift table is available in three different versions as standard, with varying load capacities. Depending on the model, you can transport, lift and tilt 150, 400 or 600 kg. If you are interested in this device but the dimensions are not suitable, we can still assist you. Our Special Construction Department can adapt your device to your required dimensions. Simply make an appointment by sending us your request by email or avail of our practical callback service.
Features & technical data
- Feature: Ergonomic working up to a max. 45° tilt of loading surface
- Load capacities depending on model: 150, 400 or 600 kg
- Lifting range depending on model: 415-1000 mm
- Handle height depending on model: 1100 or 1130 mm
- Lifting via foot pump

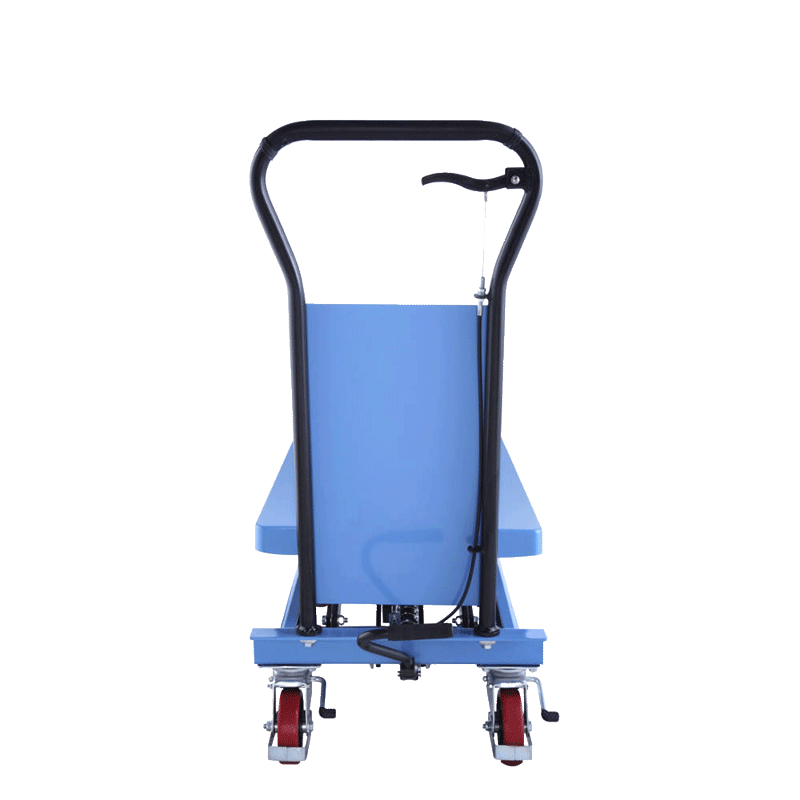

- Lowering via hand lever at handle
- Parking brakes on the right steering wheel
- High-quality powder coating
- High-quality hydraulic pump
- Ideal for loading and unloading of crates and boxes in production and warehouses
- High-quality polyurethane rollers for smooth running on all even surfaces.
Model | NHT150 | NHT400 | NHT600 |
---|---|---|---|
Load capacity (kg) | 150 | 400 | 600 |
Features | Double scissors | Double scissors | Double scissors |
Lifting range (mm) | 415 - 880/1.400 | 435 - 900/1.560 | 440 - 1.000/1.570 |
Overall length (mm) | 1.010 | 1.355 | 1.355 |
Overall width (mm) | 500 | 520 | 530 |
Operation | Manual | Manual | Manual |
Handle height (mm) | 1.100 | 1.130 | 1.130 |
Tiller strokes up to max. height (approx.) | 20 | 55 | 70 |
Tyres | Polyurethane | Polyurethane | Polyurethane |
Truck weight (kg) | 92 | 123 | 145 |
Article number | GE0023794 | GE0023795 | GE0023796 |
