MH200 pallet truck

Ideal for retail

  • Load capacity: 200 kg
  • Max. lifting height: 130 mm
  • Small turning circle
  • Energy-saving lifting
  • PU rollers

Product description

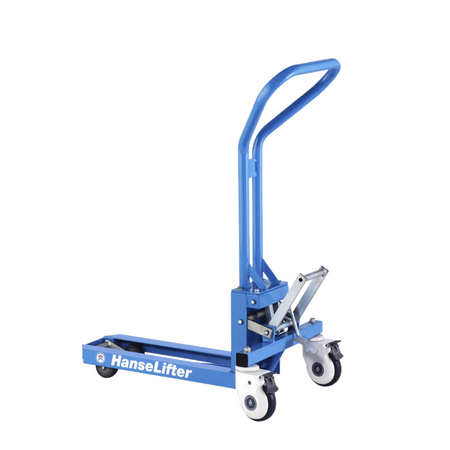

MH200 mechanical lifter for display pallets

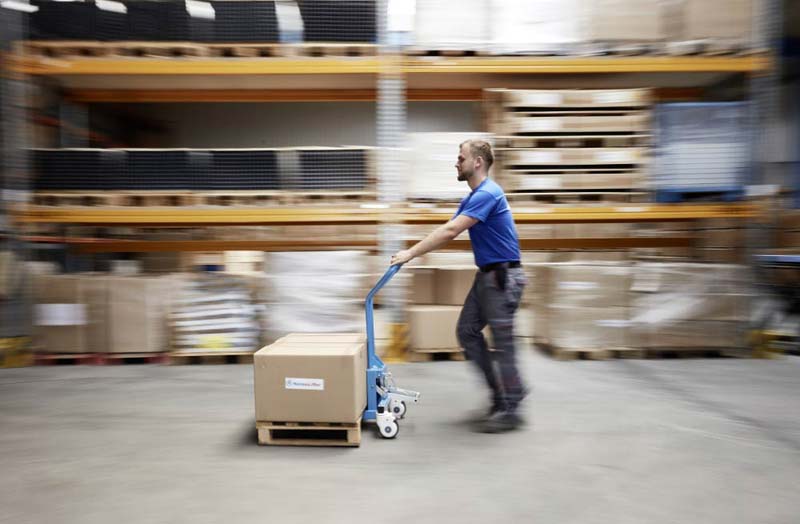

The MH200 mechanical lifter was specially developed as a display pallet lifter for use in retail. Lightweight displays, quarter pallets and half pallets can be comfortably and easily lifted and positioned with the MH200 lifter using the foot pedal. The MH200 is very agile and flexible and can also manoeuvre through narrow and irregularly shaped aisles without any problems. The mechanical lifter is ideally suited for the transport of displays and small pallets and is perfect for retail use.

Roller equipment

Guide and fork rollers are made of polyurethane (PU). These are quiet, abrasion-resistant and have excellent grip. They can easily roll over small surface irregularities. Whether hard floors, loading ramps or delicate surfaces, the MH200 offers a good compromise between smooth running and rolling resistance.

HanseLifter special models

Does the MH200 mechanical lifter not meet your requirements? You can find many different pallet trucks in our range, in a wide variety of sizes, lengths and widths. But if you still have trouble finding the optimal model for you, please contact our helpful advisors. With the help of our Special Construction Department, we are sure to find a suitable device for you.

Features and technical data

Features
  • Load capacity: 200 kg
  • Max. lifting height: 130 mm
  • Load centre distance: 290 mm
  • Load distance: 460 mm
  • Fork outer distance: 220 mm
  • Energy-saving lifting using the foot pedal
  • Controlled, continuous lowering is possible
  • Roller equipment: PU rollers
Technical Data
Model MH200 mechanical lifter
Features Mechanical
Load capacity (kg) 200
Tyres Polyurethane
Operation Manual
Lifting range (mm) 85 - 130
Lift (mm) 45
Load centre distance (mm) 290
Load distance 460
Overall length (mm) 920
Overall width (mm) 510
Fork length (mm) 580
Fork outer distance (mm) 210
Turning radius (mm) 850
Minimum fork height (mm) 85
Truck weight (kg) 22
Article number GE0023720
