MES mini lift
Lift with 200 kg load capacity
- Load capacity: 200 kg
- Max. lifting height: 1500 mm
- Smooth hand crank drive
- PVC platform
- Parking brakes
Product description

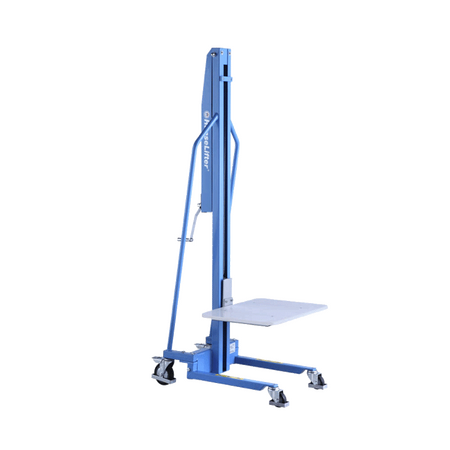

The MES mini lift
Manual mini lifts easily and quickly lift cartons with files or books to a comfortable, ergonomic working height, so they can be arranged in archives or shelves without back strain. The manual hand crank drive of the MES mini lift is smooth and easy to operate. A restraint prevents the platform from sliding down accidentally.
Accessories
The MES mini lift is equipped with a pre-installed PVC platform as standard. This is water repellent and can be wiped down. In addition, there are many optional attachments, such as roll mandrels and V-storage blocks. These complement the functions of the MES, making it suitable for many different situations. Conversion is easy, the device is designed with this in mind.
Different versions
The MES mini lift is available in two different versions, with varying load capacities. You have a choice between 100 kg and 200 kg load capacity. If the device dimensions are unsuitable for use in your warehouse, this is not a problem. Our Special Construction Department will adapt your mini lift to your required dimensions. Simply email us your request or contact one of our sales persons directly for advice.
Features & technical data
- Load capacity: 100 kg or 200 kg
- Lifting range: 135 - 1500 mm
- Platform dimensions: 470 x 600 mm
- Compact and agile, easy to manoeuvre even in tight spaces
- Can be positioned under pallets, shelves and cabinets
- Smooth hand crank drive
- Roller equipment: Polyurethane (PU)
- Easy to clean PVC platform
- Parking brakes on both steering wheels
| Model | MES100-15 | MES200-15 |
|---|---|---|
| Features | Hand crank | Hand crank |
| Load capacity (kg) | 100 | 200 |
| Lifting range (mm) | 133 - 1.500 | 133 - 1.500 |
| Free lift (mm) | 1.367 | 1.367 |
| Overall height (mm) | 1.830 | 1.930 |
| Loading area length (mm) | 470 | 500 |
| Loading area width (mm) | 600 | 600 |
| Turning radius (mm) | 800 | 800 |
| Operation | Manual | Manual |
| Tyres | Polyurethane | Polyurethane |
| Overall length (mm) | 840 | 840 |
| Overall width (mm) | 600 | 600 |
| Truck weight (kg) | 48 | 62 |
| Article number | GE0023716 | GE0023717 |
