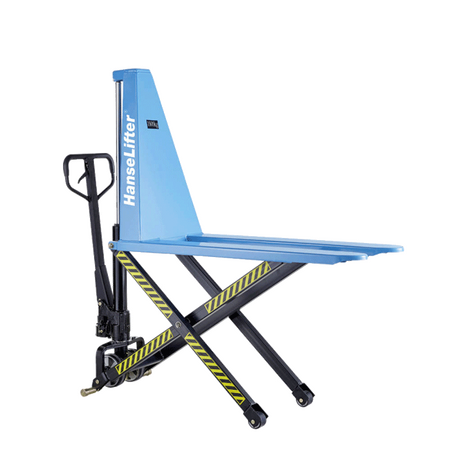

JF-SC scissor lift pallet truck

Scissor lift pallet truck with 1000 kg load capacity

  • Load capacity: 1000 kg
  • Max. lifting height: 800 mm
  • Extra-high frame
  • Single lifting cylinder
  • Ergonomically shaped handle

Product description

JF-SC scissor lift pallet truck - with extra-high frame

The JF-SC hydraulic scissor lift pallet truck, with single lifting cylinder, can move pallets and can be used as a workbench from a lifting height of 200 mm, as the support bolts are extended. The extra-high frame is a feature of the JF-SC scissor lift pallet truck.

Ergonomics in the workplace

By lifting the pallets, you can adjust the work area to a height that is comfortable for you, e.g. when storing or removing material or equipping machines. All models are equipped with a load capacity of 1000 kg and a lifting height up to 800 mm. Up to a lifting height of 200 mm, the JF-SC scissor lift pallet trucks are fully manoeuvrable and can be used like pallet trucks as a result

Tyres

The JF-SC scissor lift pallet truck is equipped with steering wheels and fork rollers made of polyurethane (PU), which offer many advantages. They are abrasion-resistant and have strong grip. In addition, the PU rollers are quiet and can also easily roll over small surface irregularities. For hard floors and delicate surfaces, PU rollers are the ideal solution.

Features and technical data

Features
  • Load capacity: 1000 kg
  • Lifting height: 800 mm
  • Load centre: 600 mm
  • Fork outer distance: 540 mm
  • Manoeuvrable up to a lifting height of 200 mm
  • Rubberised, ergonomically shaped handle
  • Controlled lowering at the hand lever
  • Extra-high frame
  • Hydraulic pump with 1-stage telescopic piston
  • Single lifting cylinder for constant lifting characteristics
  • OPTIONAL: With food grade H1 oil
Technical data
Model JF-SC
Features Extra-high frame
Load capacity (kg) 1.000
Drive Manual
Lifting range (mm) 85 - 800
Lift (mm) 715
Lift per tiller stroke (mm) ca. 35
Free lift No
Operation Manual
Tyres Polyurethane
Fork dimensions (LxWxH, mm) 1.170/160/50
Overall width (mm) 540
Overall length (mm) 1.640
Fork outer distance (mm) 540
Turning radius (mm) 1.400
Lowering speed adjustable
Truck weight (kg) 118
Article number GE0023528
